φ3.2x30mm, φ3.2x35mm Mini Size Polarization-Maintaining TAP Isolator

  • φ3.2x30mm, φ3.2x35mm Mini Size Polarization-Maintaining TAP Isolator
  • φ3.2x30mm, φ3.2x35mm Mini Size Polarization-Maintaining TAP Isolator
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Model Number 1064-1310-1550nm
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength (Ac) 1064-1310-1550nm OperatingWavelength Range ±15
Maximum Optical Power (CW) 300mw Max.Insertion Loss 50
Type Reflection Isolation @23℃ (P3 To P1& P2) 35 Minimum Isolation 23℃ (P3 To P1& P2) 28/45
Leave a Message
Product Description

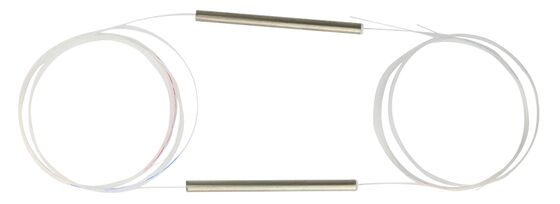

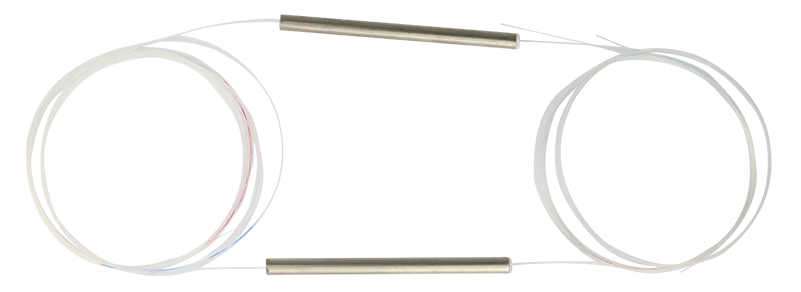

φ3.2x30mm, φ3.2x35mm Mini Size Polarization-Maintaining TAP Isolator


Description:

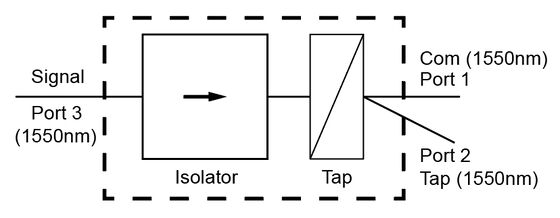

Tap Coupler + Isolator Hybrid Combination is a combination of a tap coupler and an isolator in a compact package. All input and output fibers are polarization maintaining. This product has an extremely low insertion loss, a very stable tap-coupling ratio, high isolation, and high return loss. This product offers integrated solution to amplifier application by combining more functions into a very compact package.


Feature:
  • Low insertion loss
  • High return loss
  • High extinction ratio
  • High stability & Reliability

Application:
  • Compact type optical fiber amplifier
  • Compact type fiber optic system
  • Fiber laser
  • Fiber optic sensor

 Specification:

Parameter Unit Value
Central wavelength nm 1550, 1310 1064
Operating wavelength range nm ±15
Mono pole   Single Dual Single Dual
Maximum additional loss dB 1.0 1.2 2.2 3.5
Splitting ratio % 1±0.2%, 5±1%, 50±2%
Peak Isolation dB 40 52 40 52
Minimum isolation 23℃ dB 28 45 28 45
Minimum extinction ratio 23℃ dB 20
Minimum return loss dB 50
Maximum power (CW) mW 300
Maximum tensile load N 5
Fiber type   PM Panda fiber
Package dimensions Both axis working mm φ3.2x30
  Fast axis blocked mm φ3.2x35
Operating temperature ℃ 0~+70
Storage temperature ℃ -40~+85



*Above specifications are for devices without the connectors.

*For devices with connectors, Power Handling will be 1W, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*The PM fiber and the connector key are aligned to the slow axis.



Package Dimensions:

<img alt="" src=" <p> </p> <p><strong><span style=" font-size:16px;"="">Order Information:



Hybrid PM Tap + ISO,

Wavelength, Stage, Split Ratio, Working Axis, Package Dimension,

Fiber Type, Pigtail Diameter, Length, Connector, Power Handling



Example:

Hybrid PM Tap + ISO,

1064nm, Single Stage, 30/70, Fast Axis Blocked, Slow Axis Working, φ3.2x35mm,

PM1064-XP, 0.25mm, 1m, N/C, 200mW
