SM PM Fiber 2/8/16/32 CH Multi-channel Optical Fiber Array MT-FA
Product Details
| Fiber Spacing(um) | 127 Or 250 Or Customized | Fiber Core Position Tolerance(um) | ≤1.0,or Customized |
|---|---|---|---|
| Polishing Angle(°) | 0°~45°,or Customized | Fiber Type | SM,PM |
| Number Of Channels | Up To 128CH,or Customized | RX Core Center | 0.39 Mm |
| TX Core Center | 0.65 Mm |
Product Description

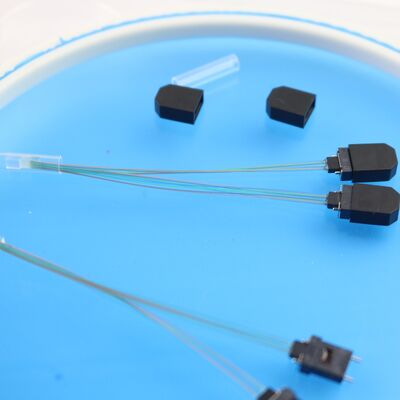

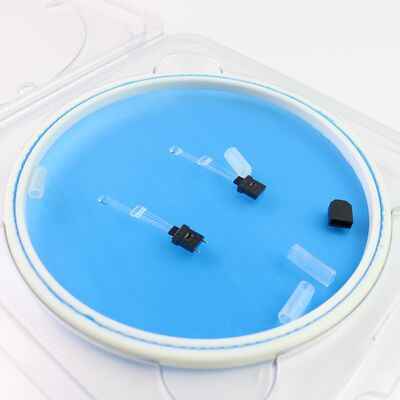

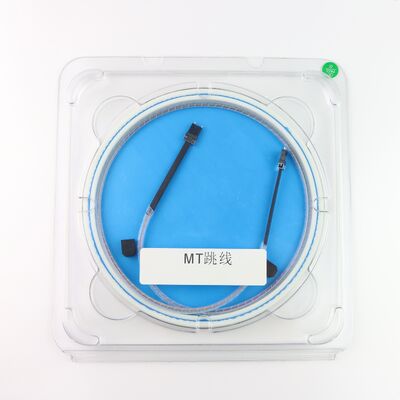

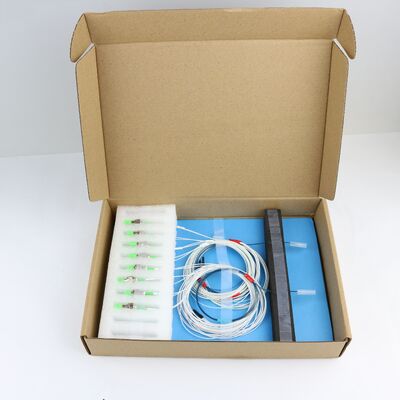

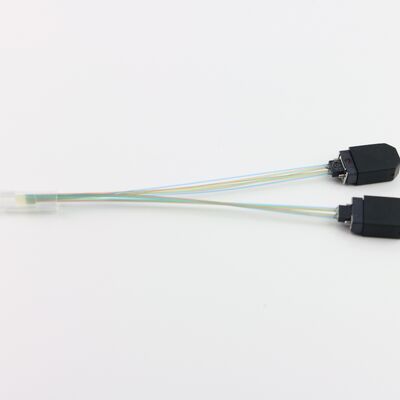

SM PM Fiber 2/8/16/32 CH Multi-channel Optical Fiber Array MT-FA
MT-FA is a multi-channel optical fiber array designed for high-precision optical alignment in optical communication systems. It features a standard MT interface structure and is widely used in optical modules, fiber coupling, and high-speed optical interconnection applications.
Feature:
*High-precision optical alignment for stable coupling
*Integrated transmit (TX) and receive (RX) channels
*Rugged structure with adhesive limit and boot reinforcement
*Fully customizable to customer specifications
*Mass-producible with strict quality control(OQC inspection)
Application:
*Optical transceiver modules
*Fiber optic connectors
*Optical coupling & splitting systems
*High-speed optical communication equipment
| Items | Specs |
| Substrate Material | Quartz,BF33 and others |
| Fiber Spacing(um) | 127 or250 or customized |
| Fiber Core Position Tolerance(um) | ≤1.0,or customized |
| Polishing Angle(°) | 0°~45°,or customized |
| Fiber Type | SM,PM |
| Number of Channels | Up to 128CH,or customized |
| Operating temperature(℃) | -5~70 |
Nufren/Coherent PM Single Mode Fiber Corining PM Single Mode Fiber
PM-S350-HP PM1550
PM-S405-XP PM980
PM630-HP PM1300
PM780-HP PM850
PM980-XP
PM1300-XP
PM1550-XP
PM2000D
