1060-2050nm Isolator Polarization Beam Combiner Splitter

  • 1060-2050nm Isolator Polarization Beam Combiner Splitter
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Model Number 1060-2050nm
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength (Ac) 1064-2050nm OperatingWavelength Range λc±20
Maximum Optical Power (CW) 300mw Max.Insertion Loss 50
Type Reflection Isolation @23℃ (P3 To P1& P2) 35 Minimum Isolation 23℃ (P3 To P1& P2) 18/28/25
Leave a Message
Product Description

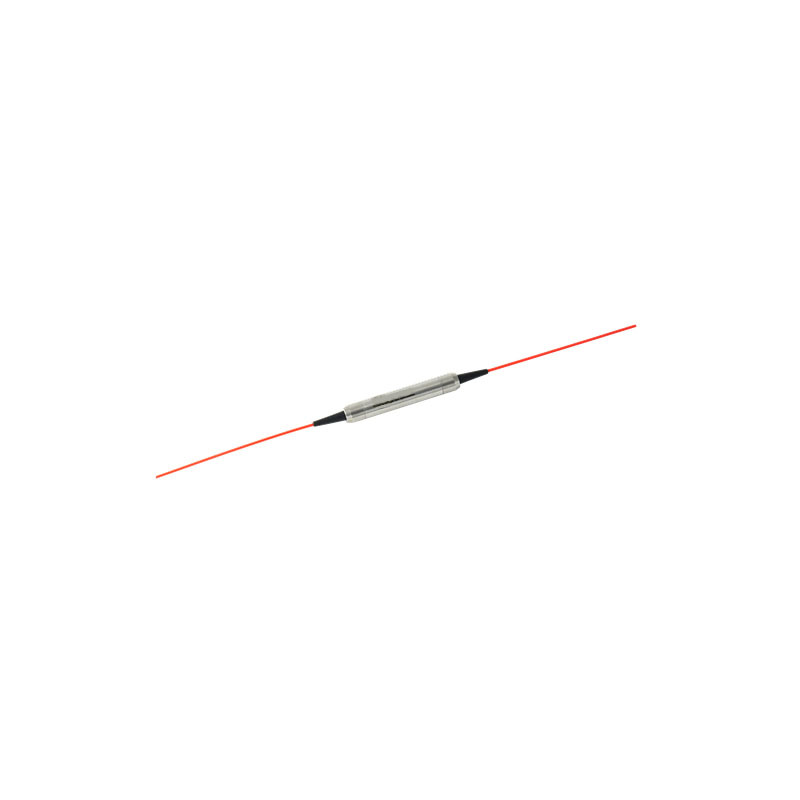

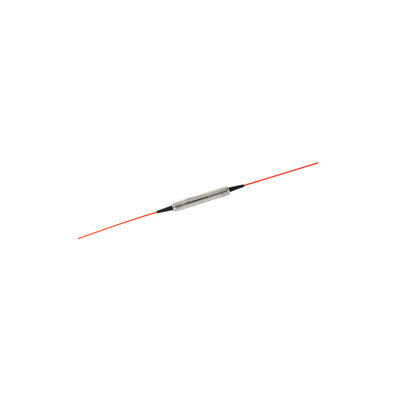

1060-2050nm Isolator Polarization Beam Combiner Splitter


Description:

The Isolator & Polarization Beam Combiner/Splitter can be used either as a polarization beam combiner to combine light beams from two PM input fibers into a single output fiber, or as a polarization beam splitter to split light from an input fiber into two output fibers of orthogonal polarization states.

We offer a large selection of hybrid ISO+PBS/C device. These devices can handle powers rang from 300mW to 10W or others on request, and have center operating wavelengths ranging from 1064 nm to 2050nm.

If you do not see a standard Polarization Beam Combiner/Splitter that meets your needs, we welcome the opportunity to review your desired specification and quote a custom Polarization Beam Combiner/Splitter. Requests for custom fiber pigtails, different wavelengths and handling power of operation or other specific needs will be readily addressed.


Feature:
  • Low insertion loss
  • High return loss
  • High extinction ratio
  • High stability & Reliability

Application:
  • Erbium doped fiber amplifiers & Raman fiber amplifiers
  • Optical fiber sensing
  • Coherent telecommunication system
  • Polarization mode dispersion compensator

 Specification:



Parameter Unit Value
Rank   Single stage Double stage
Central wavelength nm 2000 1550,1310 1064 2000 1550,1310
Operating wavelength range nm ±20 ±20 ±5 ±20 ±20

Type reflection Isolation @23℃

(P3 to P1& P2)

 dB 35 35 35 51 51
Minimum isolation 23℃ (P3 to P1& P2) dB 18 28 25 30 45
Typical insertion loss23℃ dB 0.6 0.5 1.8 0.7 0.6
Maximum insertion loss@23℃ dB 1.2 0.7 2.1 1.3 0.8
Minimum extinction ratio@23℃ dB 18 22 22 18 22
Directivity dB 50
Minimum return loss dB 50
Maximum optical power(CW) mW 300
Maximum tensile load N 5
Fiber type P1 & P2   PM Panda fiber
  P3   PM Panda fiber, SMF-28E or Hi1060
Operating temperature ℃ -5~+70
Storage temperature ℃ -40~+85



*Above specifications are for devices without the connectors.

*For devices with connectors, Power Handling will be 1W, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*The PM fiber and the connector key are aligned to the slow axis



Package Dimensions:

1060-2050nm Isolator Polarization Beam Combiner Splitter 0



Order Information:



Hybrid ISO+PBS/C,

Wavelength, Stage, Package Dimension,

Fiber Type (Port 3), Pigtail Diameter, Length, Connector, Power Handling



Example:

Hybrid ISO+PBS/C,

1550nm, Single Stage, φ5.5x35mm,

PM Fiber for Port 3 and Slow Axis aligned to Port 1, 0.25mm, 1m, N/C, 1W
