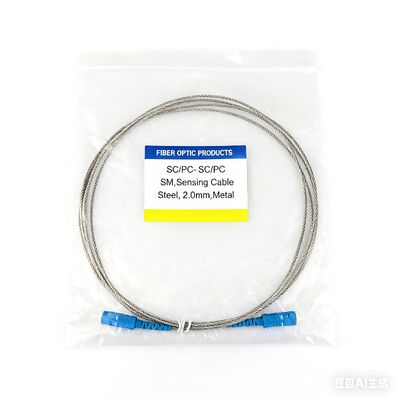

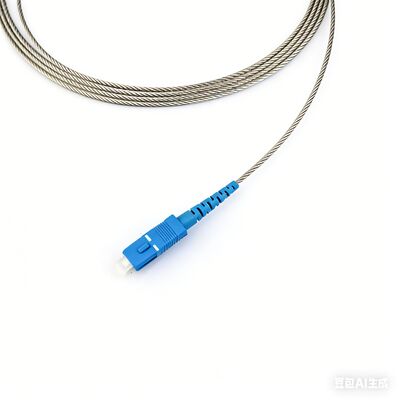

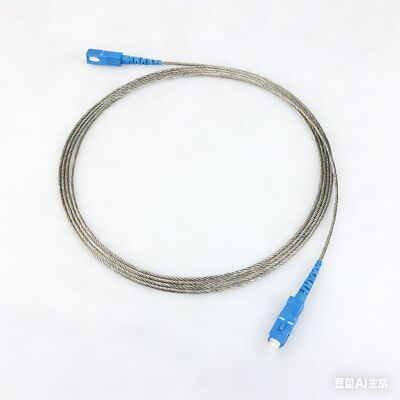

SC/PC-SC/PC SM Sensing Cable steel 2.0mm metal patch cord fiber optic sensing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wavelength (nm) | 310/1550m | Connector Type | SC/UPC |
|---|---|---|---|
| IL | ≤0.2 | Fiber Type | Single-mode, Polarization-maintaining, Photonic Crystal Fiber, Etc. |
| Return Loss （dB） | ≥45 | Core Diameter | 8.3~10μm |
| Transmission Loss | ≤0.2dB/km (Test Wavelength: 1310nm, 1550nm) |
Product Description
SC/PC-SC/PC SM Sensing Cable steel 2.0mm metal patch cord fiber optic sensing
Fiber optic sensor jumper is a core connecting component in fiber optic sensing systems. It realizes real-time and accurate monitoring of physical quantities such as temperature, pressure, and vibration through the transmission and perception of optical signals. As the "data bridge" connecting sensors and data processing terminals, its performance directly determines the stability, accuracy, and reliability of the entire sensing system. Our fiber optic sensor jumpers cover two major series: single-mode and multi-mode, supporting customization of various core diameters (from tens of microns to hundreds of microns) and lengths, and are compatible with various interface types such as ST, SC, LC, and APC. They can meet the differentiated application needs of industrial automation, energy, transportation, medical care and other fields.
Feature:
1. Super Anti-interference Performance: Adopting high-quality optical fiber materials and precision structural design, it can work stably in complex electromagnetic environments such as high voltage and strong magnetic fields, effectively avoiding interference problems of traditional electrical signal transmission and ensuring the purity of data transmission.
2. Excellent Environmental Adaptability: It has good corrosion resistance and temperature resistance, with an operating temperature range of -40℃~125℃. It can work for a long time in high temperature, high humidity and harsh chemical environments, with a mean time between failures (MTBF) of more than 500,000 hours.
3. Low Loss and Long-distance Transmission: The transmission loss of single-mode fiber optic sensor jumper is ≤0.2dB/km, supporting long-distance data transmission up to 100 kilometers; multi-mode products are cost-effective and easy to connect, suitable for short-distance sensing scenarios.
4. High Reliability and Durability: Adopting low-loss optical fiber core and high-precision ceramic ferrule, the plug-in life is ≥1000 times, and the minimum bending radius can reach 5mm, which has both flexibility and mechanical strength, reducing operation and maintenance costs and replacement frequency.
Use:
oil and gas pipeline leakage monitoring,
power system equipment temperature early warning, rail transit track deformation detection,
wind turbine tower vibration monitoring, photovoltaic power station temperature distribution analysis,
medical endoscope image transmission and other fields.
Specification:
|
Parameter Category
|
Parameter Name
|
Single-mode Fiber Optic Sensor Jumper
|
Multi-mode Fiber Optic Sensor Jumper
|
|---|---|---|---|
|
Fiber Characteristics
|
Core Diameter
|
8.3~10μm
|
50μm / 62.5μm / 100μm (Optional)
|
|
Operating Wavelength Range
|
1250~1650nm
|
850nm, 1300nm
|
|
|
Optical Performance
|
Transmission Loss
|
≤0.2dB/km (Test Wavelength: 1310nm, 1550nm)
|
≤0.3dB/m (Test Wavelength: 850nm, 1300nm)
|
|
Insertion Loss (IL)
|
≤0.2dB
|
≤0.3dB
|
|
|
Return Loss (RL)
|
UPC≥50dB; APC≥60dB
|
≥40dB
|
|
|
Mechanical & Environmental Performance
|
Operating Temperature Range
|
-40℃~125℃
|
-40℃~125℃
|
|
Minimum Bending Radius
|
≥5mm
|
≥5mm
|
|
|
Plug-in Life
|
≥1000 Times
|
≥1000 Times
|
|
|
Mean Time Between Failures (MTBF)
|
＞500,000 Hours
|
＞500,000 Hours
|
|
|
Structure & Specifications
|
Compatible Interface Types
|
ST, SC, LC, APC, etc. (Optional)
|
ST, SC, LC, APC, etc. (Optional)
|
|
Custom Length Range
|
0.5m~100m (Extendable on Demand)
|
0.5m~500m (Customizable on Demand)
|
