1310/1550nm MEMS polarization-maintaining tunable attenuator VOA with FC connector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wavelength (nm) | 310/1550m | Connector Type | FC/APC FC/UPC |
|---|---|---|---|
| IL | ≤0.7 | Maximum Optical Power | 500MW |
| Fiber Type | Single-mode, Polarization-maintaining, Photonic Crystal Fiber, Etc. | Maximum Light Power (mW) | 300 |
| Numerical Aperture NA | 0.12 | Return Loss （dB） | ≥45 |
Product Description

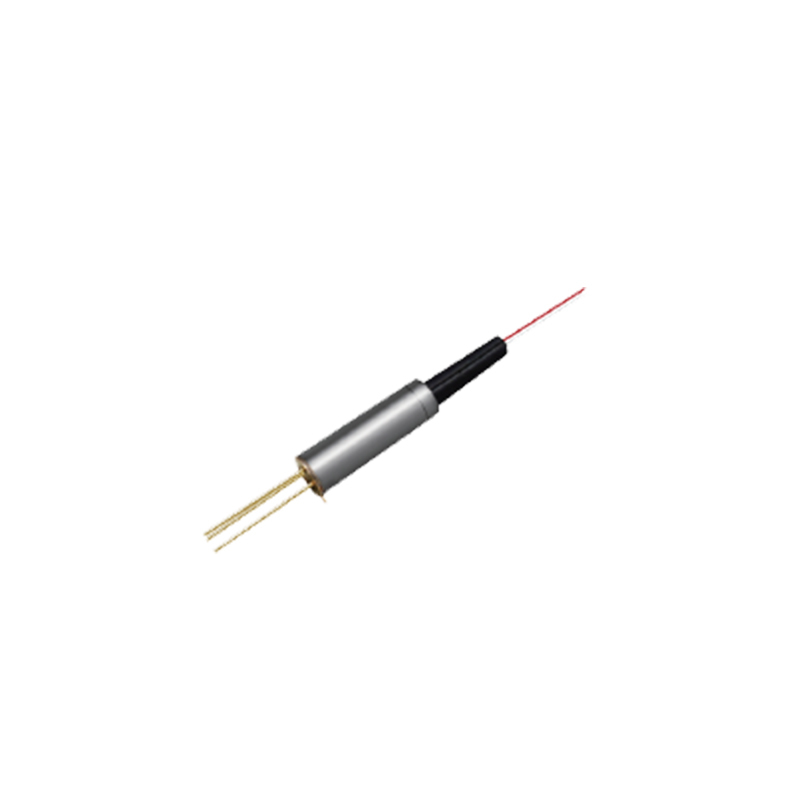

1310/1550nm MEMS polarization-maintaining tunable attenuator VOA with FC connector
The MEMS polarization-maintaining tunable attenuator is a high-performance optical attenuator based on microelectromechanical systems (MEMS) technology, specifically designed for polarization-maintaining fiber systems. This product precisely controls the attenuation of optical signals while preserving the polarization state of the input light, making it widely applicable in fiber optic communication, fiber optic sensing, and optical measurement fields.
Feature:
- steel tube type small package
- Low insertion loss, low wavelength-dependent loss/polarization-dependent loss
- Fast response time
Use:
- optical power control and equalization
- Wavelength Division Multiplexing (WDM) system
- GAIN CONTROL OF EPOLED FIBER AMPLIFIER
Specification:
| project | metric |
| laser wave length (nm) | 1310/1550 |
| attenuation type | bright or faint |
| range of attenuation (dB) | ≥30 |
| insertion loss (dB) | ≤0.7 |
| extinction ratio (dB) | ≥20 |
| Wavelength-dependent loss (dB) | ≤0.25@0V |
| return loss (dB) | ≥45 |
| response time (ms) | ≤1 |
| working temperature (℃) | -20～+85 |
| storage temperature (℃) | -40～+85 |
| Average power (mW) | ≤500 |
| power dissipation (μW) | ≤10 |
| driving voltage (V) | ≤6.5 DC |
| type of optical fiber | PM Panda Fiber |
| size (mm) | φ5.5×L19 |
* For each additional connector, insertion loss (IL) increases by 0.3 dB, return loss (RL) decreases by 5 dB, and extinction ratio (ER) decreases by 2 dB. The connector key aligns with the slow axis.
polarization maintaining optical fibre
| project | metric | |||
| Type of optical fiber | PM630-HP | PM780-HP | PM980-XP | PM1550-XP |
| wavelength coverage (nm) | 620～850 | 770～1100 | 970～1550 | 1440～1625 |
| Modulation field diameter MFD (μm) | 4.5±0.5@630nm | 5.3±1.0@850nm | 6.6±0.5@980nm | 10.1±0.4@1550nm |
| Insert loss Max. (dB) | 2.4 | 2.0 | 1.4 | 1.0 |
| Minimum light extinction ratio (dB) | 18 | 18 | 22 | 22 |
| cladding diameter (μm) | 125±2 | 125±2 | 125±1 | 125±2 |
| Coating diameter (μm) | 245±15 | |||
| numerical aperture NA | 0.12 | |||
| Type of connector | FC/PC or FC/APC | |||
| Maximum light power (mW) | 300 | |||
multimode fibre
| project | metric |
| Type of optical fiber | FG105LCA |
| wavelength coverage (nm) | 400～2400 |
| Fiber diameter (μm) | 105+1/-3 |
| cladding diameter (μm) | 125+1/-2 |
| Coating diameter (μm) | 250±10 |
| numerical aperture NA | 0.22±0.02 |
| Type of connector | FC/PC |
| Maximum light power (mW) | 300 |
| Tail fiber length (m) | 1 |
Wavelength: 1310nm; 1550nm; or customizable
