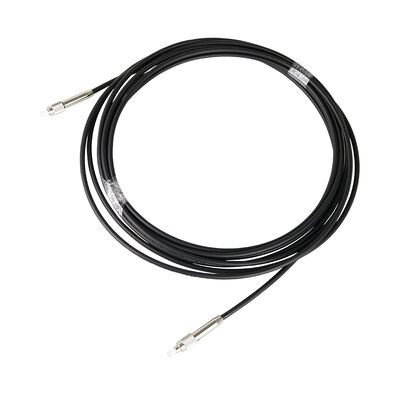

Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

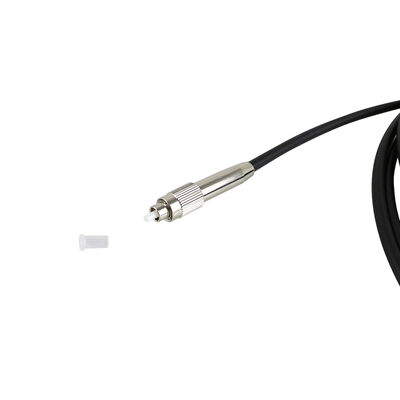

  • Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

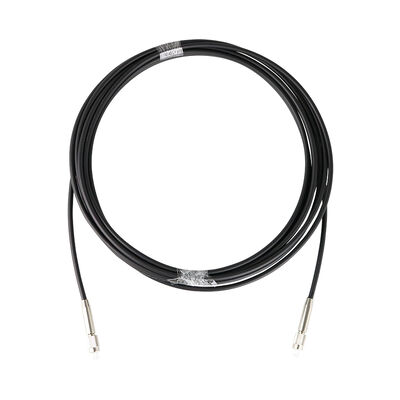

  • Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

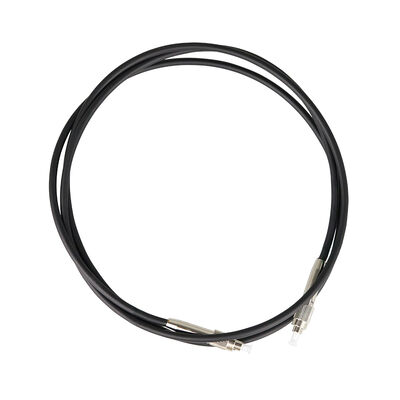

  • Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

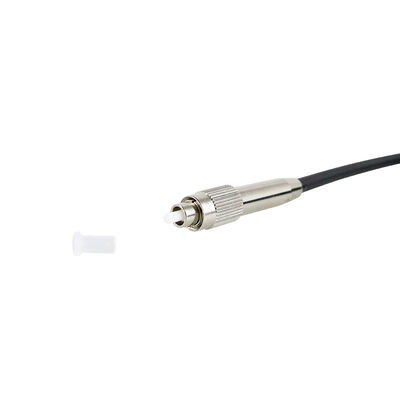

  • Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
  • Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Model Number 4.8mm
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength (nm) 400nm To 2500nm (Low OH) Numerical Aperture (NA) 0.22± 0.02
Min.Attenuation (RSS Wavelength) 20 DB Core / Cladding Pure Silica / Fluorine-Doped Silica
Both Ends FC UPC Available In Lengths 20m
Leave a Message
Product Description
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector



Multimode fiber optic patch cord: are designed for shorter distance transmission. They have a larger core diameter (typically 50 or 62.5 microns) compared to single mode patch cord. Multimode fiber jumper are often utilized in LAN (Local Area Network) environments, campus networks, and short-distance communications within buildings.



Feature:
  • Numerical Apertures from 0.10 to 0.50 - Compatible with majority of fiber-coupled, diode-laser packages
  • Cables Available for Wavelengths from 190 nm to 2500 nm
  • Available in Lengths up to 20m*
  • SMA905 Connectors on Both Ends
  • Ø0.9 mm, Ø2.0 mm, Ø3.0 mm,Ø4.8 mm,, Ø5.0 mm, or 6.0mm Outer Jacket available (12-color options)
  • Custom Cables Available

*We have some Ø3.0mm & Ø2.0mm specialty cables in store, so no need to insert bare fiber into the tubing, thus any length will be available. Please contact us for details.


Application:
  • Spectroscopy
  • Illumination
  • Power/Beam Delivery
  • LED Energy Transmission
  • Medical Instruments
  • Optogenetics
  • Fiber coupled diode lasers
  • Couplers and pump combiners
  • Coherent Multi-Mode Fibers: (Only list part of this series)



Model No.Core DiameterNACladding DiameterCoating DiameterWavelength RangeOH Level
MM-S105/125-12A105.0 ± 3.0 μm0.120 ± 0.020125.0 ± 2.0 μm245.0 ± 15.0 μm800 – 1600 nmLow
MM-S105/125-15A105.0 ± 3.0 μm0.150 ± 0.020125.0 ± 2.0 μm245.0 ± 15.0 μm800 – 1600 nmLow
MM-S105/125-22A105.0 ± 3.0 μm0.220 ± 0.020125.0 ± 2.0 μm245.0 ± 15.0 μm800 – 1600 nmLow
MM-S200/220-12A200.0 ± 4.0 μm0.120 ± 0.020220.0 ± 3.0 μm320.0 ± 15.0 μm800 – 1600 nmLow
MM-S200/220-22A200.0 ± 4.0 μm0.220 ± 0.020220.0 ± 3.0 μm320.0 ± 15.0 μm800 – 1600 nmLow
MM-S200/240-22A200.0 ± 4.0 μm0.220 ± 0.020220.0 ± 3.0 μm320.0 ± 15.0 μm800 – 1600 nmLow
MM-S400/440-22A400.0 ± 9.0 μm0.220 ± 0.020440.0 ± 8.0 μm625.0 ± 25.0 μm800 – 1600 nmLow

MM-S600/660-22FA
1362303

600.0 ± 12.0 μm0.220 ± 0.020660.0 ± 12.0 μm875.0 ± 30.0 μm700 – 2200 nmLow



  • Coherent NuBEAM series Beam Delivery Fibers: (Only list part of this series)



Model No.Core DiameterNASecond Cladding DiameterSecond Buffer DiameterWavelength RangeOH Level
BD-S50/70/360-STN51.0 ± 1.0 μm0.220 ± 0.020367.5 ± 7.5 μm650 ± 32 μm800 – 2100 nmLow
BD-S100/130/480-STN102.00 ± 2.00 μm0.220 ± 0.020490 ± 10 μm750 ± 37 μm800 – 2100 nmLow
BD-S150/180/660-STN153.00 ± 3.00 μm0.220 ± 0.020673 ± 13 μm1100 ± 55 μm700 – 2200 nmLow
BD-S200/220/360-STN204.0 ± 4.0 μm0.220 ± 0.020367.5 ± 7.5 μm650 ± 32 μm800 – 2100 nmLow
BD-S300/330/360-STN306.0 ± 6.0 μm0.220 ± 0.020367.5 ± 7.5 μm650 ± 33 μm800 – 2100 nmLow
BD-S400/440/660-STN408.0 ± 8.0 μm0.220 ± 0.020672.5 ± 12.5 μm1100 ± 55 μm800 – 2100 nmLow
BD-S600/660/720-STN612.00 ± 12.00 μm0.220 ± 0.020735 ± 15 μm1100 ± 55 μm700 – 2200 nmLow
BD-S1000/1100-STN1020.0 ± 20.0 μm0.220 ± 0.020N/A1400 ± 70 μm800 – 2100 nmLow




Ordering Information:
  • Connector End A-Connector End B, Connector Type
  • Fiber Type: Wavelength Range, Core/Cladding Diameter, Core NA, Coating Diameter, Coating Material, Attenuation Plot, etc.
  • Furcation Tubing Type
  • Cable Length
