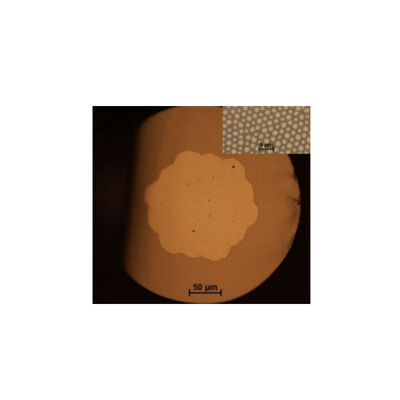

190～1250nm (UV) 300～2400nm (IR) Imaging fibre fiber Multi-core: 3000～100000 Numerical aperture (NA):>0.5

  • 190～1250nm (UV) 300～2400nm (IR) Imaging fibre fiber Multi-core: 3000～100000 Numerical aperture (NA):>0.5
  • 190～1250nm (UV) 300～2400nm (IR) Imaging fibre fiber Multi-core: 3000～100000 Numerical aperture (NA):>0.5
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Imaging Fibre Multi-core 3000～100000
Numerical Aperture (NA) >0.5 Core Material Pure Quartz
Cladding Material Hard Plastic Coating Operating Wavelength （nm） 190～1250 (UV), 300～2400 (IR)
Leave a Message
Product Description

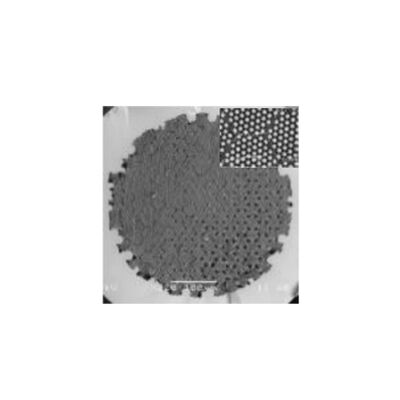

190～1250nm (UV) 300～2400nm (IR) Imaging fibre fiber Multi-core: 3000～100000 Numerical aperture (NA):>0.5

190～1250nm (UV) 300～2400nm (IR) Imaging fibre fiber Multi-core: 3000～100000 Numerical aperture (NA):>0.5 0


Our company has mastered the key technology of multi-core imaging fiber fabrication. Currently, we have successfully produced multi-core imaging fibers containing tens of thousands of cores, with a single-core numerical aperture (NA) reaching up to 0.59. These fibers are suitable for biomedical or medical endoscopic imaging applications.



Feature:
  • High fiber core density and high resolution
  • large numerical aperture
  • Low transmission loss and low bending loss
  • The transmission wavelength covers the ultraviolet to infrared spectrum.

Application:



  • clinical medicine
  • biological tissue imaging
  • brain science research



 Specification:



Project Metric
Optical fiber type HPCS225 HPCS336 HPCS447 HPCS6610 HPCS8810 HPCS101015 HPCS151520
core material pure quartz
cladding material hard plastic coating
operating wavelength (nm) 190～1250 (UV), 300～2400 (IR)
number of cladding apertures 0.37,0.43
Core diameter (μm) 200 300 400 600 800 1000 1500
cladding diameter (μm) 230 330 430 630 830 1035 1535
Buffer layer diameter (μm) 500 650 730 1040 1040 1500 2000
Filter Tension (kpsi) ≥100 (four-axis bending)
buffer material Teflon (UV), nylon (IR)
Buffer temperature (℃) -40 to +200 (Teflon), -60 to +105 (Teflon)
