Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insertion Loss | ≤0.3dB | Fiber Jacket Material | PVC/LSZH/OFNP |
|---|---|---|---|
| Cable Length | 1 Meter (Optional) | Connector Type | FC/APC (SENKO, SG Optional) |
| Fiber Diameter | 9/125μm | Operating Temperature | -40℃ To +85℃ |
| Warranty | 1 Year | Narrow Key | 2.0mm |
| Fiber Type | Single-mode | Wavelength | 405-532 Nm Customize Any Wavelength |
| Fiber Count | Simplex/Duplex | Fiber Jacket Diameter | 2.0/3.0mm |
Product Description

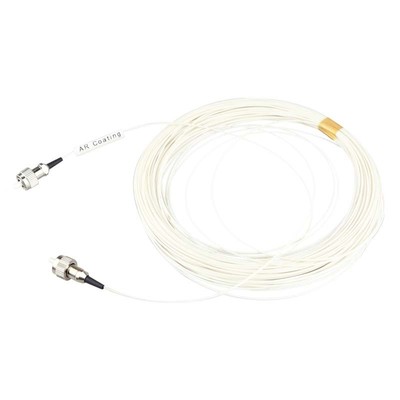

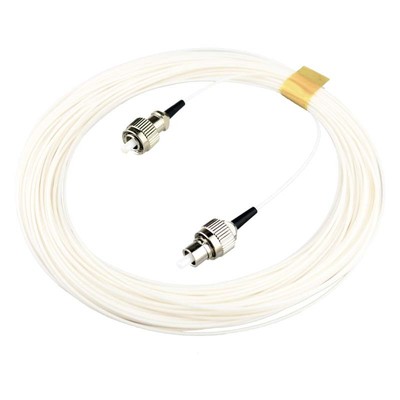

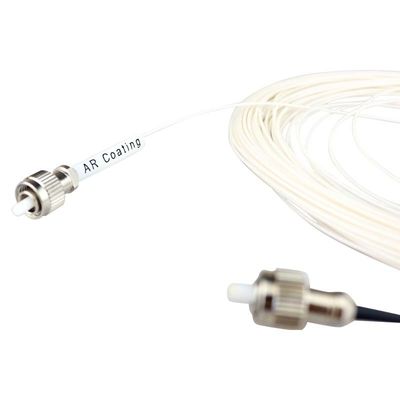

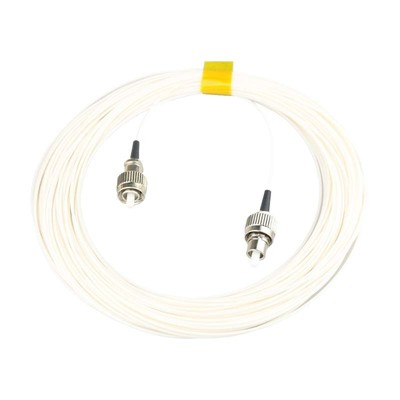

Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength
We offer fiber optic patch cords with an FC/PC or FC/APC connector coated with a permeation enhancement film on one end and an uncoated FC/PC or FC/APC
connector on the other end. Transparency enhancement coatings are designed to reduce the reflection ratio of
when launching a beam from a fiber into free space or coupling a free space beam into a fiber. Depending on the patch cord, the average reflectance of the coated connector is less than 1%, less than 0.75%
or less than 0.5% over the transmissive film frequency range (click on the transmissive film coated reflectance graph below for more information). Each patch cable is supplied with Ø3mm Kevlar reinforced
split tubing. Patchcords are grouped below according to the optimal performance range, with bare fiber overlapping the specified operating wavelength range of the permeation enhancement film.
Feature:
- Low insertion loss
- High repeatability and high stability
- MPO/MTP polarity can be arbitrarily matched
- Complies with GR326 or IEC61300-2 standards
Application:
Fiber-to-free-space coupling
When light is incident from a fiber into free space, such as when using our fiber collimators and FiberPort collimator/couplers, the return loss
(loss of signal reflecting back to the light source at the glass-air interface at the end of the fiber) will be more severe than the equivalent fiber-to-fiber coupling
method. The return loss on FC/PC connectors can be reduced by ~8 to 10 dB by coating the fiber ends with a permeation enhancing film
and by ~2 to 5 dB on FC/APC connectors. For example, in testing, a typical return loss for a
patch cord with an uncoated connector was ~15 dB (3.16%), while the same patch cord with a permeation-enhanced connector had a return loss of ~24 dB
(0.40%). Transmission enhancement connectors also improve the transmittance of free-space beams when coupled into optical fibers. For more test data,
see the Experimental Observations tab.
Specification:
| Item | AR Coating connector | No coating connector | AR Coating |
| P1–305AR–2 | FC/PC | FC/PC (30126C3) | <0.5% |
| for 500 – 800 nm | |||
| P5–305AR–2 | FC/PC | FC/APC(30126 A3) | |
| P4–305AR–2 | FC/APC(30126 A3) | FC/PC (30126C3) | |
| P3–305AR–2 | FC/APC(30126 A3) | FC/APC(30126 A3) |
