SM MM MPO/MTP fiber optic circuit loopback fiber optic loop
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insertion Loss | ≤0.3dB | Fiber Jacket Material | PVC/LSZH/OFNP |
|---|---|---|---|
| Cable Length | 1 Meter (Optional) | Connector Type | FC/APC (SENKO, SG Optional) |
| Fiber Diameter | 9/125μm | Operating Temperature | -40℃ To +85℃ |
| Fiber Connector Type | Male To Male | Warranty | 1 Year |
| Shape | Various Shapes | Narrow Key | 2.0mm |
| Fiber Type | Single-mode | Function | Optical Properties |
| Wavelength | 1310nm/1550nm | Fiber Count | Simplex/Duplex |
| Fiber Jacket Diameter | 2.0/3.0mm |
Product Description

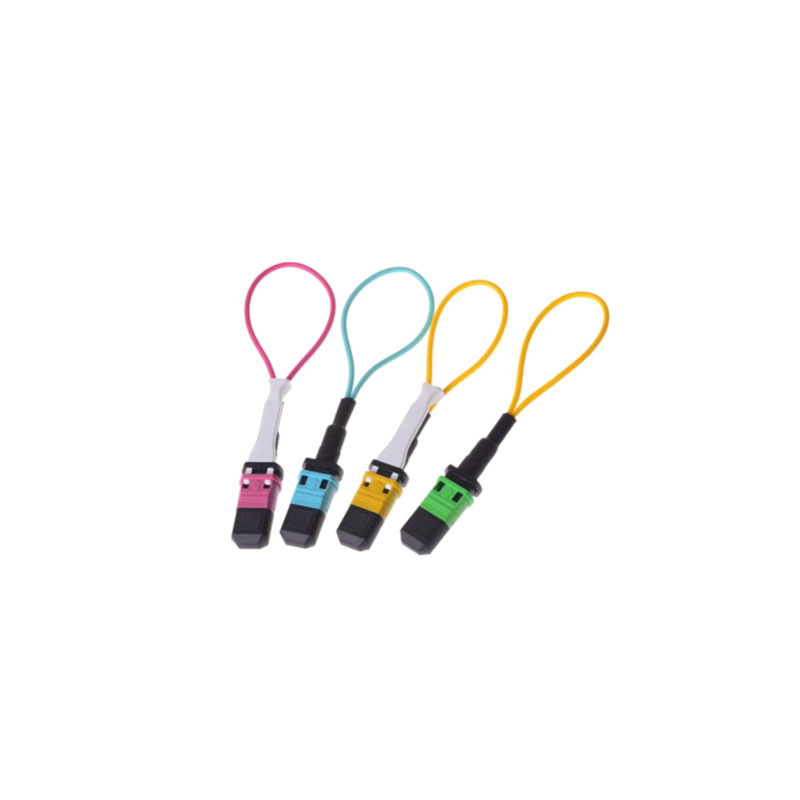

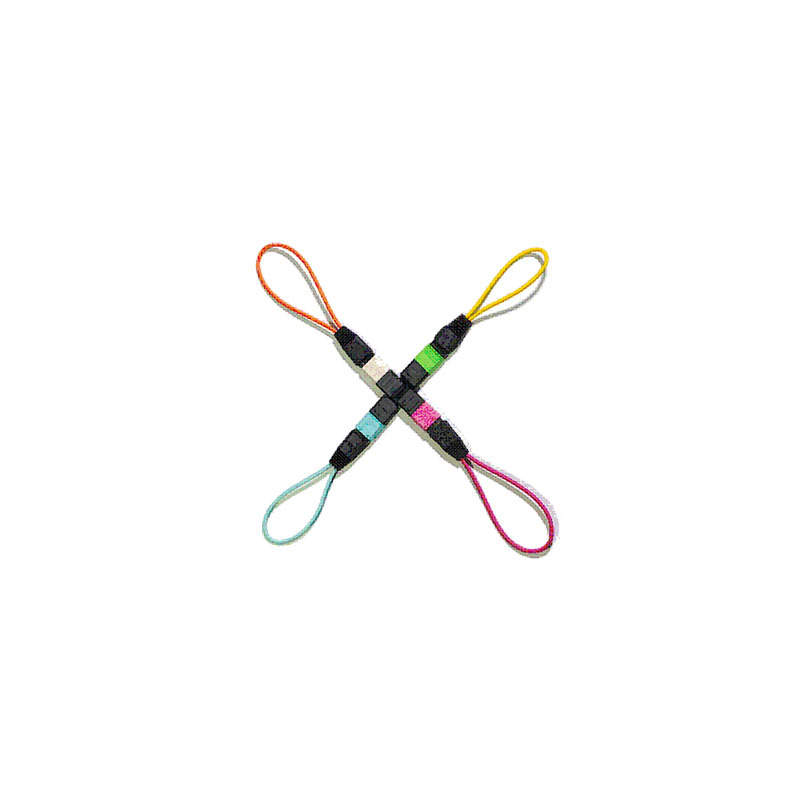

MPO/MTP fiber optic circuit
The MPO/MTP fiber optic loop device integrates both ends of a multi-core optical fiber into a single connector, enabling unified transmission and reception functions. Primarily used for testing network equipment's transmission capacity and receiving sensitivity while identifying potential anomalies, our company offers comprehensive MPO/MTP fiber optic loop products. These devices allow flexible combinations of transmission modes, cable types, and connectors, delivering stable performance, high reliability, and customizable configurations. Widely adopted in surveillance systems, backbone networks, and data center optical environments, they provide reliable solutions for optical infrastructure development.
Feature:
- Low insertion loss
- High repeatability and high stability
- MPO/MTP polarity can be arbitrarily matched
- Complies with GR326 or IEC61300-2 standards
Application:
- DC
- monitor and control unit
- backbone network
Specification:
| project | metric | |||||||
| model | MPO/MTP (low loss) | MPO/MTP (net loss) | ||||||
| insertion loss | SM | MM | SM | MM | ||||
| 8F,12F | 24F | 8F,12F,16F | 24F,32F | 8F,12F | 24F | 8F,12F,16F | 24F,32F | |
| ≤0.7 | ≤1.0 | ≤0.7 | ≤1.0 | ≤1.4 | ≤1.4 | |||
| return loss (dB) | ≥55 | ≥20 | ≥55 | ≥20 | ||||
| working temperature (℃) | -25～+70 | |||||||
| Applicable fiber | OS1/OM1/OM2/OM3/OM4/OM5 | |||||||
