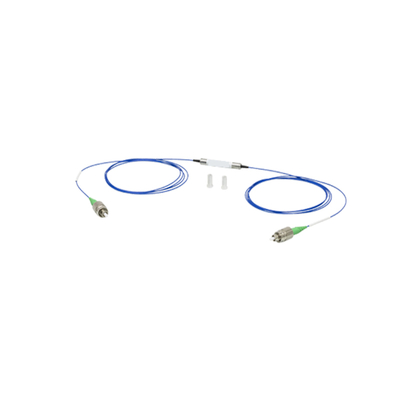

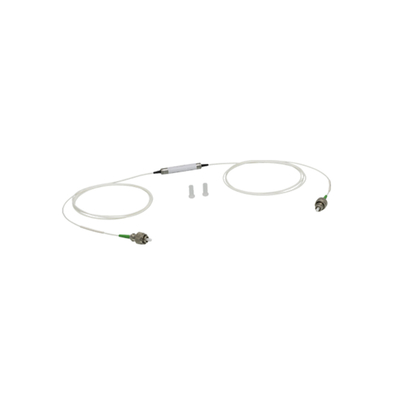

Gain flat filter GFF3:1270～1330nm GFF5/GFFP5:1525～1570nm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Center Wavelength (λc) | 1270～1330 (1278 ~ 1328 Best) | Operating Wavelength Range | λC±15 |
|---|---|---|---|
| Peak-to-peak Error (dB) Loss | <0.6 | Max.Insertion Loss | <0.8 |
| Polarization Related Loss (dB) | <0.1 | Encapsulation Type | φ 900 μm Casing |
Product Description
Gain flat filter
Gain flat filter is designed to connect to the output ports of EDFA or PDFA. By introducing additional signal loss at higher gain wavelengths, it flattens the gain spectrum of EDFA, making it ideal for applications requiring consistent gain across broad spectral ranges. The gain spectrum of fiber amplifiers depends on input power; when input power decreases, the gain variation within the operating wavelength range becomes more pronounced.
Feature:
Gain spectrum of flat O-band fiber amplifier or erbium doped fiber amplifier
Optimized for-10dBm input power
Provide SM and PM versions
Application:
Fiber Laser
Fiber Sensing
Fiber Amplifier
Fiber Optic Interferometer
Specification:
| project | metric | ||
| model | GFF3 | GFF5 | GFFP5 |
| wavelength coverage (nm) |
1270～1330 (1278 ~ 1328 best) |
1525～1570 (1525 ~ 1560 best) |
|
| insertion loss (dB) | <0.8 | <0.8 | |
| Peak-to-peak error (dB) | <0.6 | <0.5 | |
| Polarization related loss (dB) | <0.1 | <0.1 | - |
| extinction ratio (dB) | - | - | 20 |
| return loss (dB) | >50 | >50 | |
| Type of connector | FC/APC | ||
| Type of optical fiber | SMF-28 | SMF-28 | PM1550-XP |
| Encapsulation type | φ 900 μm casing | ||
GFF3:
GFF5/GFFP5:
