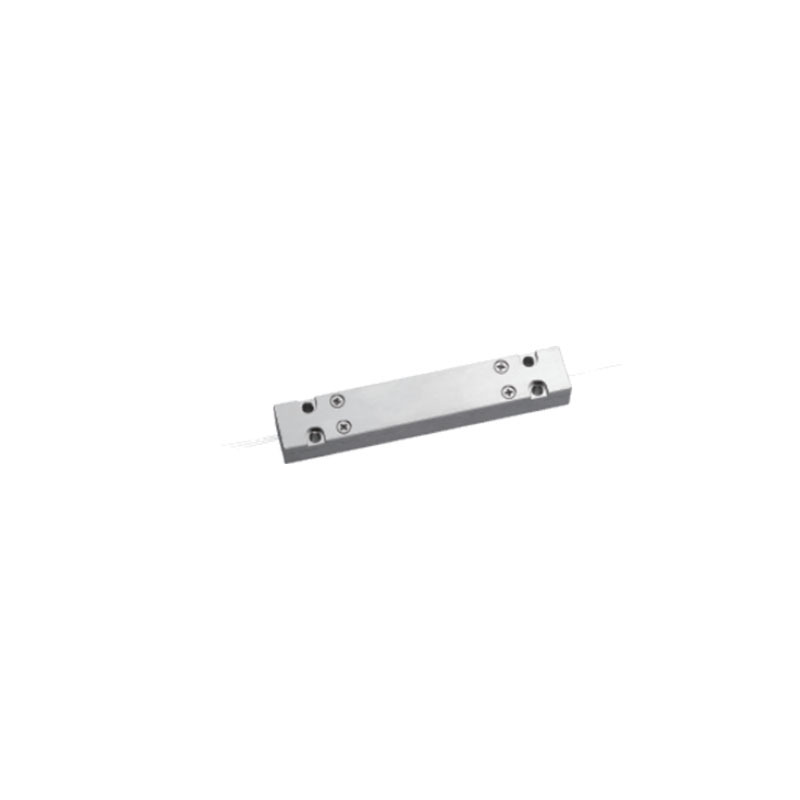

700～2000nm High power cladding light eraser (CPS)

  • 700～2000nm High power cladding light eraser (CPS)
  • 700～2000nm High power cladding light eraser (CPS)
  • 700～2000nm High power cladding light eraser (CPS)
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Model Number 700～2000nm
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength (nm) 700～2000nm Connector Type FC/APC FC/UPC
Signal Insertion Loss (dB) 0.05 (typical Value) Fiber Type Single-mode, Polarization-maintaining, Photonic Crystal Fiber, Etc.
Polarization Random, Or Customised With Bias Numerical Aperture NA 0.12
Processing Power 200 ~ 350 (bottom Conduction Cooling)
Leave a Message
Product Description
700～2000nm High power cladding light eraser (CPS)


The High-Power Cladding Power Striping (CPS) system is specifically engineered for high-power fiber lasers and amplifiers. This device effectively removes residual pump power, amplified spontaneous absorption (ASE), and escaped core modes from the inner cladding of dual-clad fibers, while minimizing signal power degradation and beam quality deterioration. It also enables efficient stripping of signal power reflected from the end face to the inner cladding.


Feature:
  • High power processing capacity for high stripping
  • High stripping efficiency and low signal loss

  • high stability

Application:
  • fibre laser
  • fibre amplifier

  • optical instrument

Specification:
project Index
laser wavelength (nm) 700～2000
polarization Random, or customised with bias
work pattern continuation
Signal insertion loss (dB) 0.05 (typical value)
Tail fiber length (m) 1.0
Processing power 200 ~ 350 (bottom conduction cooling)
  600～2000 (glass tube)

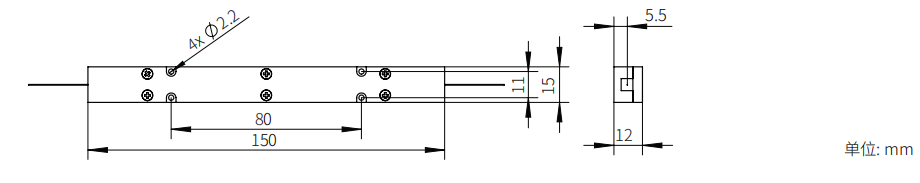

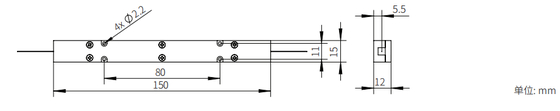

Encapsulation size (mm) 150×15×12 (bottom conduction cooling)

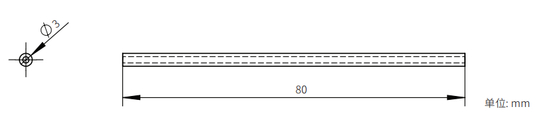

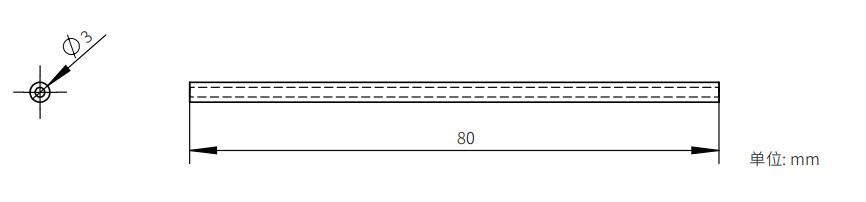

  φ 3× L80 (glass tube)
working temperature (℃) 0～+75
storage temperature (℃) -40～+85

Package information:


700～2000nm High power cladding light eraser (CPS) 0

700～2000nm High power cladding light eraser (CPS) 1

Ordering Information:


1. Laser Wavelength: 700-2000nm
2. Polarization: Random; Polarization-Maintaining Custom
3. Pigtail Length: 1m; or other
