800～2000nm multimode Pump laser protectors central pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Central Pump Laser Wavelength (nm) | 793/808,915/974/976 | Signal Wavelength Range (nm) | 1020～1120,1020～1120,1530～1570 |
|---|---|---|---|
| Insert Loss Max. (dB) @ Through Wavelength | 0.6 | Minimum Isolation Degree (dB) | 30 |
| Polarization Related Loss (dB) | 0.2 | Return Loss （dB） | 50 |
| Tensile Power-CW (W) | 0.5, 1, 5, 10 Or Other | Encapsulation Size (mm) | φ 5.5 X L35, Or 60 X 12 X 8 |
Product Description

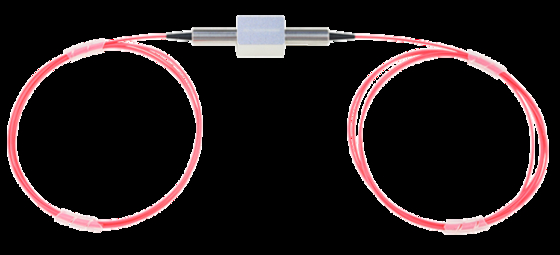

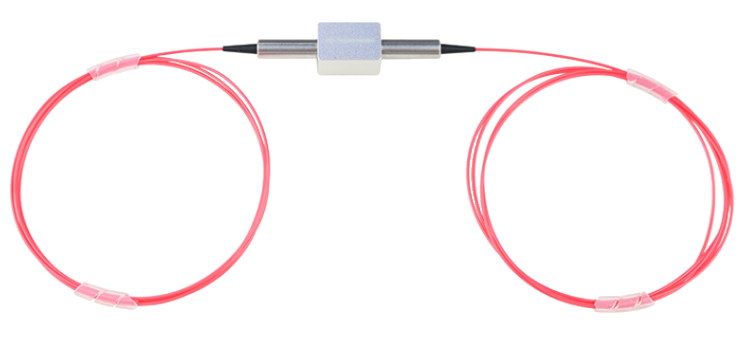

800～2000nm multimode Pump protectors
Pump protector is to prevent the generated ASE back reflection light from causing damage to the pump laser. We can provide different power pump protectors in the band of 800 ~ 2000nm.
Feature:
- High power tolerance
- Low insertion loss
- High stability and reliability
Application:
- Fiber lasers and fiber amplifiers
- optical fiber communication system
- Fiber optic sensing
- Scientific experimental research
Specification:
| project | metric | ||
| Central pump laser wavelength (nm) | 793/808 | 915/974/976 | |
| Working wavelength bandwidth (nm) | ±15 | ||
| Signal wavelength range (nm) | 1020～1120 | 1020～1120 | 1530～1570 |
| Insert loss Max. (dB) @ Through wavelength | 0.6 | ||
| Minimum isolation degree (dB) | 30 | ||
| Polarization related loss (dB) | 0.2 | ||
| return loss (dB) | 50 | ||
| Tensile power-CW (W) | 0.5, 1, 5, 10 or other | ||
| Type of optical fiber | MM fiber | ||
| Fiber length (m) | 1 or other | ||
| Type of connector | FC/APC or other | ||
| maximum pull (N) | 5 | ||
| Encapsulation size (mm) | φ 5.5 x L35, or 60 x 12 x 8 | ||
| working temperature (℃) | -5～+60 | ||
| storage temperature (℃) | -40～+85 | ||
Note: The temperature measurement environment is 25℃; the above data does not include the head. If the joint is added, the insertion loss will increase by 0.3dB, the return loss will decrease by 5dB, and the extinction ratio of the polarization-preserving product will decrease by 2dB. The default slow-axis alignment key of the optical fiber is key.

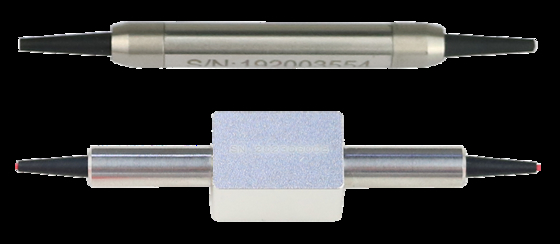

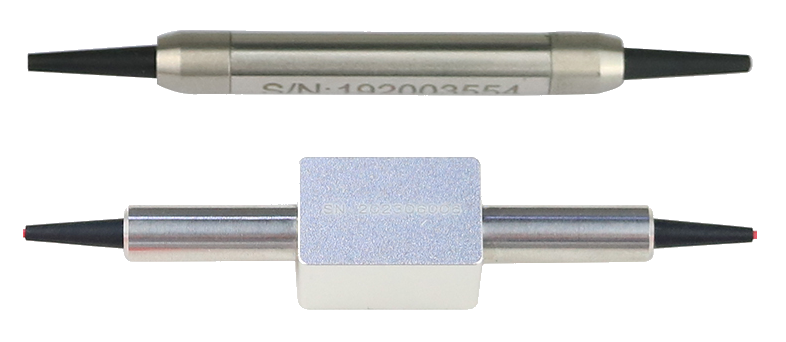

Encapsulation information:
≤10W
>10W
Ordering Information:
1. Pump Wavelength: 793nm; 915nm; 976nm; 1550nm; or other
2. Reverse Signal Wavelength: 1064nm; 1550nm; 2000nm; or other
3. Power: 5W; 10W; 20W; or other
4. Fiber Type: 105/125 0.22mm; 200/220 0.22mm; or other
5. Pigtail Length: 0.8m; 1m; 1.5m; or other
6. Pigtail Type: 0.25mm bare fiber; 0.9mm sleeved fiber; or other
7. Connector Type: FC/APC; or other
