350~5000nm fiber end face connector collimator/coupler fiber optic sensing

  • 350~5000nm fiber end face connector collimator/coupler fiber optic sensing
  • 350~5000nm fiber end face connector collimator/coupler fiber optic sensing
  • 350~5000nm fiber end face connector collimator/coupler fiber optic sensing
  • 350~5000nm fiber end face connector collimator/coupler fiber optic sensing
  • 350~5000nm fiber end face connector collimator/coupler fiber optic sensing
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Model Number 350~5000nm
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength (nm) 350~5000nm Connector Type FC/APC FC/UPC
IL <0.5 Extinction Ratio 25
Maximum Optical Power 500MW Fiber Type Single-mode, Polarization-maintaining, Photonic Crystal Fiber, Etc.
Leave a Message
Product Description

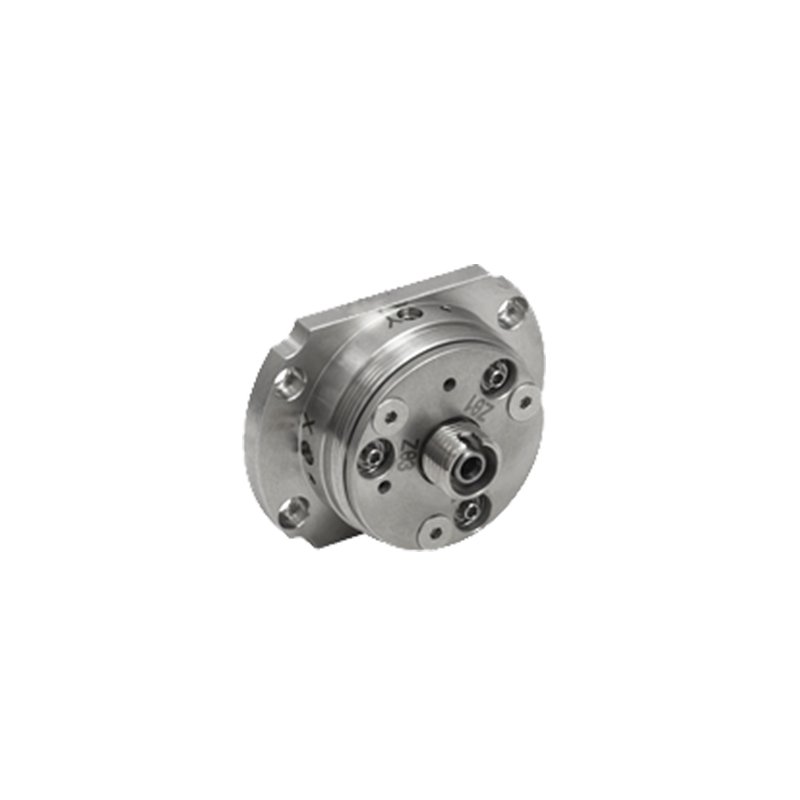

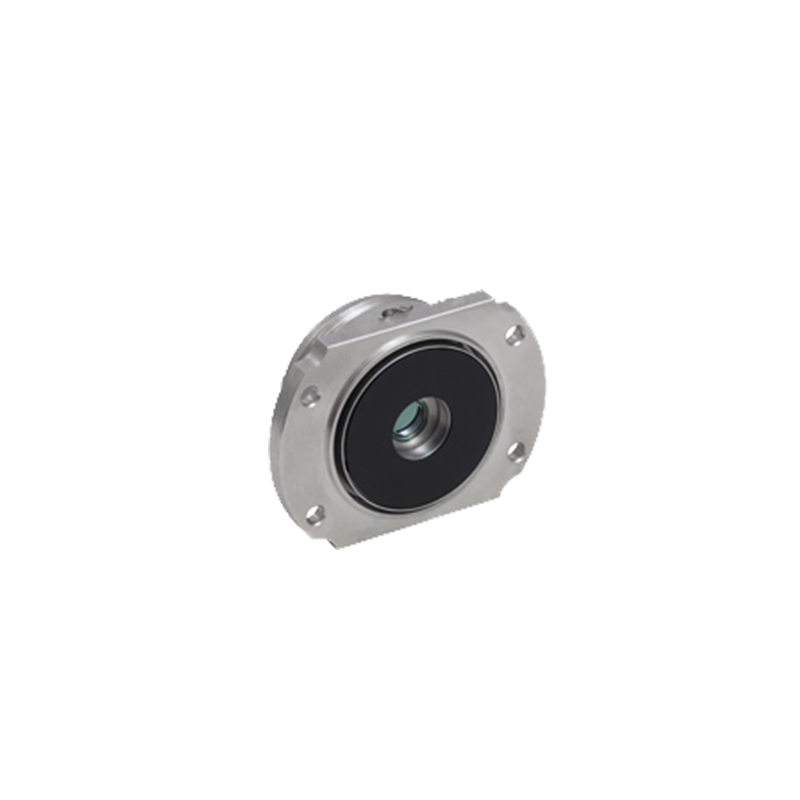

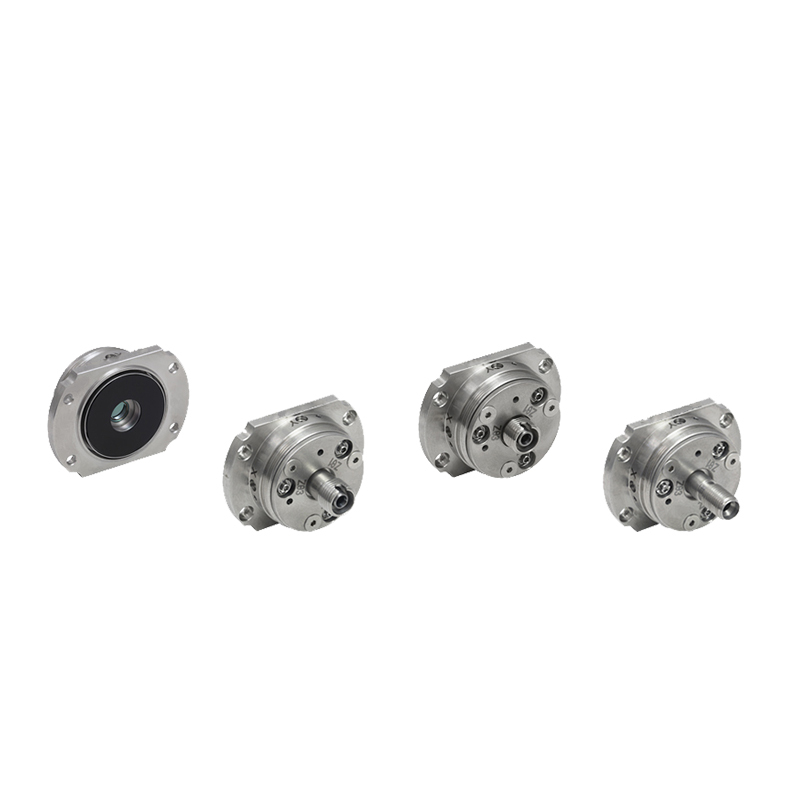

350~5000nm fiber end face collimator/coupler

Compact, ultra-stable fiber end collimators/couplers are user-friendly devices for optical coupling or output light collimation. Each unit incorporates an achromatic or aspherical lens with an effective focal range of 2.0-18.4 mm, featuring FC/PC, FC/APC, or SMA fiber connectors. For applications requiring short effective focal lengths (≤7.5 mm), we provide collimators/couplers with FC connectors compatible with both FC/PC and FC/APC interfaces. Their five-axis adjustment system works in tandem with short focal lengths, ensuring negligible sensitivity to off-axis inputs.

Feature:
  • Super stable micro positioning alignment with five degrees of freedom plus rotation adjustment
  • Delayed and scarce

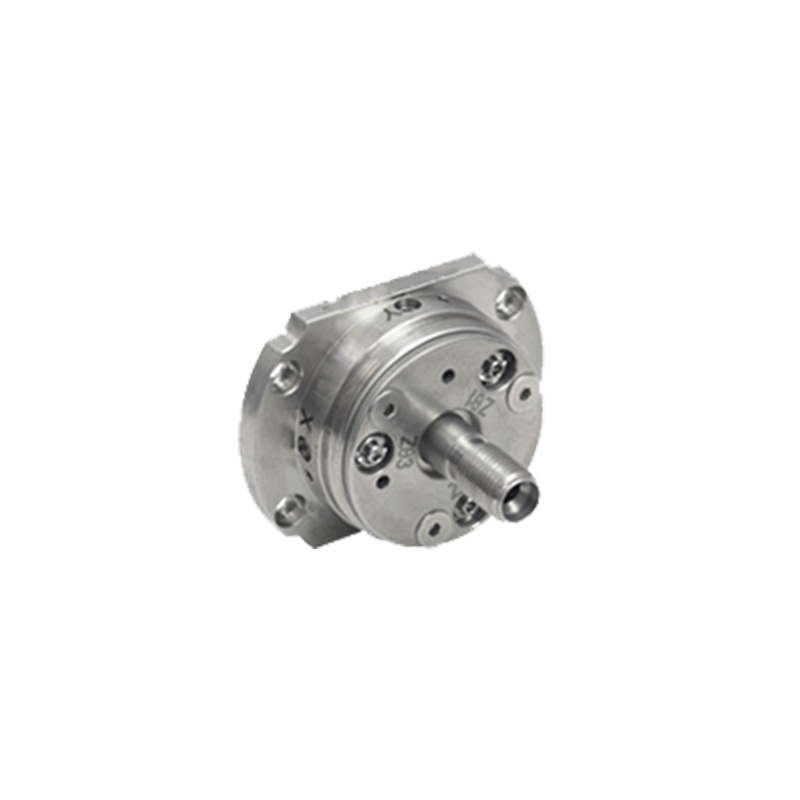

  • FC/PC and FC/APC versions are compatible with 2.1 mm wide key and 2.0 mm narrow key joints, SMA collimator/coupler for SMA905 joints
  • Use aspherical or achromatic lenses
  • Suitable for single mode (SM), multi mode (MM) and polarization maintaining (PM) optical fibers
  • The film enhancement options include visible, near-infrared and mid-infrared wavelength ranges
  • Effective focal length 2.0～18.4mm

Application:
Fiber Lasers
Quantum Communications
Fiber Optic Sensing
Fiber Optic Communication

Specification:
project metric
model FP-C FPP-C FPA-C FPS-C FP-M FPP-M FPA-M FPS-M
Type of lens achromatic doublet lens Molded aspherical lens
Type of connector

FC/PC&

FC/APC

 FC/PC FC/APC SMA

FC/PC&

FC/APC

 FC/PC FC/APC SMA
Effective focal length EFLs (mm) 4,7.5 10,15 10,15 4,7.5 2,4,4.6,7.5 11,15.3,18.4 2,4,4.6,7.5,11,15.3,18.4 2,4,4.6,7.5,11,15.3,18.4
