PPLN Waveguide Periodically Poled Lithium Niobate 1064nm/532nm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Copper | Shielding | Unshielded |
|---|---|---|---|
| Application | Networking | Compatibility | Cat5e, Cat6, Cat6a |
| Termination | TIA/EIA-568B | Frequency | 250 MHz |
| Type | Patch Cable | Insulation Material | PVC |
| Jacket Material | PVC | Quantity | 15 |
| Connector Type | RJ45 | Gauge | 24 AWG |
| Length | 6 Inches |
Product Description

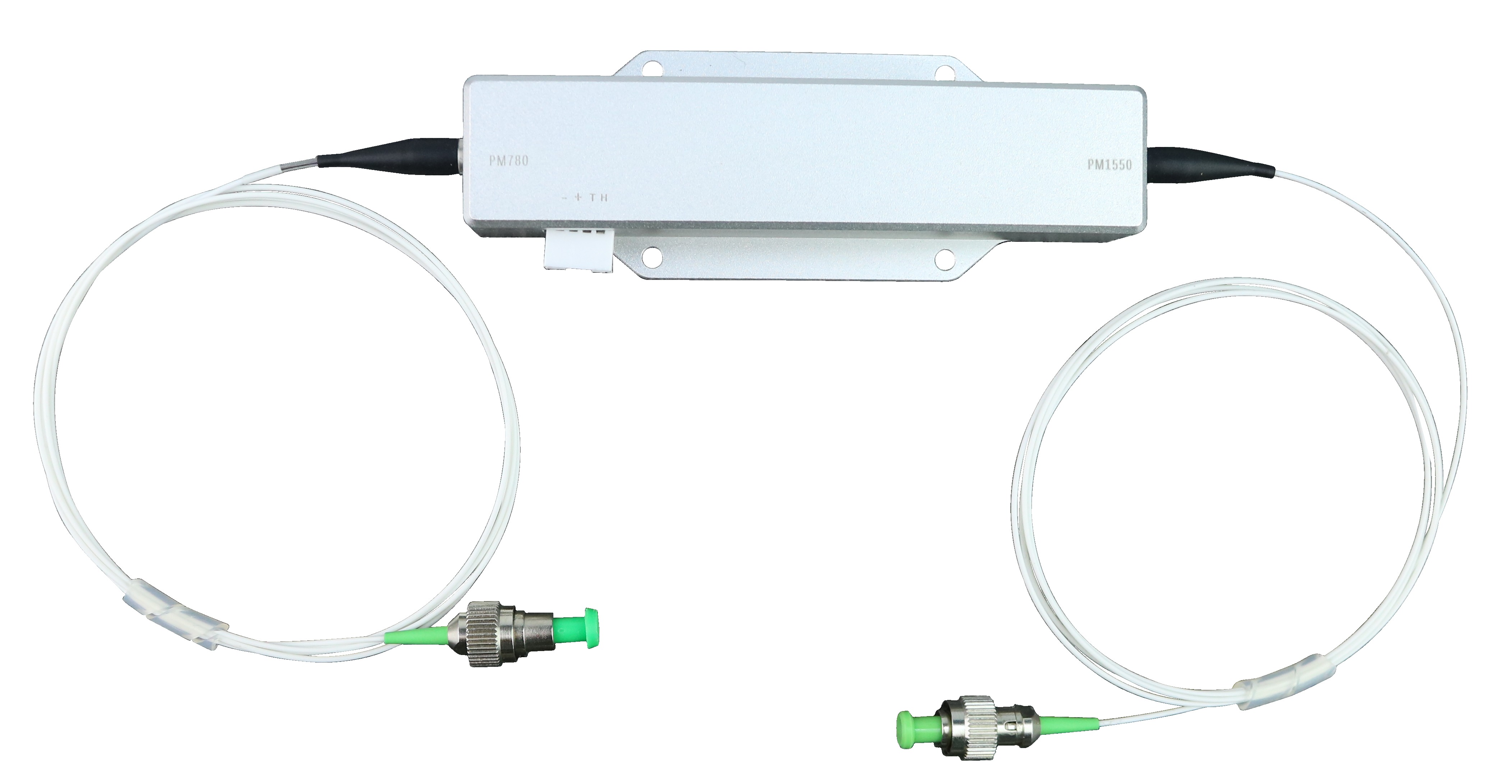

PPLN Waveguide Periodically Poled Lithium Niobate 1064nm/532nm
PPLN mixers integrate PPLN chips into a convenient, compact, robust, cost-effective packaged format. Through well-packaged format and convenient input/output laser coupling interfaces, we assist in your engineering/production efforts for your full-spectrum laser generation, sensing and applications.
Feature:
Ø High-Efficiency Frequency Converter
Ø High-Power, Compact & Robust
Ø Fiber Delivery
Ø Output Wavelength Range from 350nm to 5.2um
Ø SHG Mixing Configuration
Application:
*Quantum Optics*
* Lasers
*OPO, THz & Spectroscopy
| Specifications | PPLN-1560/780- 1×1 |
| Type | SHG (Second Harmonic Generation) |
| Phase Matching | Type0 |
| Input Wavelength (nm) | 1064 |
| Output Wavelength (nm) | 532 |
| Input Fiber | PM980 |
| Output Fiber | PM460 |
| Connector Type | FC/APC (1W) |
| Pump Condition | CW |
| Output Power | ≥150mW |
Cautions
| Item | PPLN-1560/780- 1×1 |
| Pre-cautions |
1. Do not dismantle the mixer housing. 2. Do not raise the operation temperature over 80 ℃. 3. Clean the connector before mating. |
| Cautions |
1. Increasing input power abruptly at incorrect phase-matching temperature (PMT) will damage the mixer immediately which violates the warranty. 2. Please operate the mixer at low power (≤50mW) to find the optimized PMT and SHG power. Then, increase the input power gradually at the optimal setup. |
Package Dimensions
| Item | Specifications |
| Dimensions | 28x20x8mm |
| Fiber Length | ≥0.5m |
Electrics
| Item | Specifications |
| Electrical Connector | Molex 4P |
| TEC | 4.4V, 4.4A Max. |
| NTC Thermistor Resistance | 10kΩ |
Pin Assignment
| Pin No. | Functionality | 4 Pins Layout |
| 1 | TEC+ | |
| 2 | NTC | |
| 3 | NTC | |
| 4 | TEC- |
