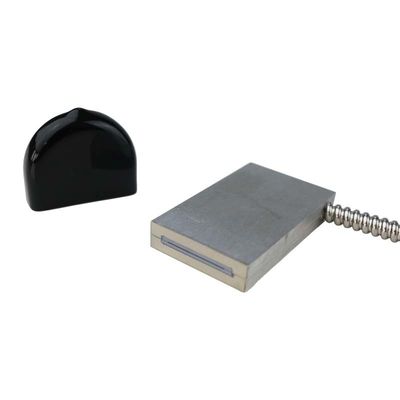

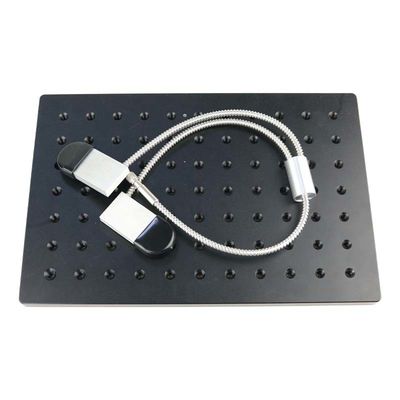

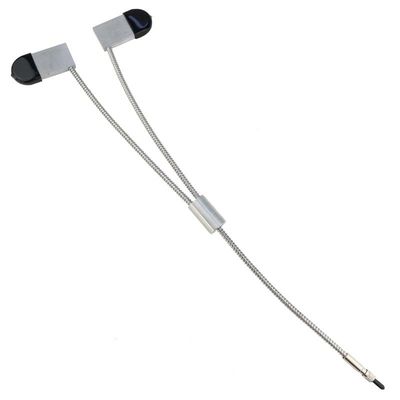

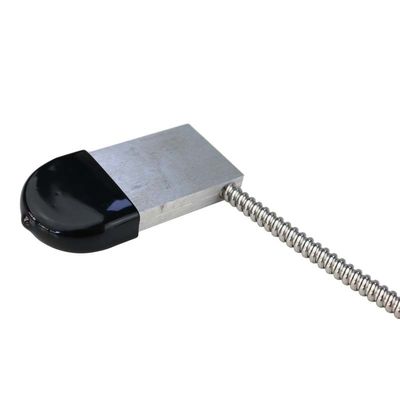

Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber

  • Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber
  • Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber
  • Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber
  • Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description
Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber


Due to the use of high-end chip manufacturing technology, our company's fiber array products are not limited by the thickness and arrangement shape of the fiber. The thinnest fiber can reach 25um. The arrangement shape can be the traditional straight line; it can also be square, circular; it can even be parabolic, M-shaped, and random. The products cover one-dimensional linear arrays, two-dimensional surface arrays, and three-dimensional spherical fiber arrays.


The products can be used under harsh conditions such as high pressure, high vacuum, high temperature, and ultra-low temperature. They have good environmental adaptability and are widely used in communications, measurement, imaging, printing, welding and other fields.



Feature:

  • Fiber type (specify size, material): 40/48/55, quartz
  • NA:0.22
  • Single fiber attenuation:≦1 dB/m
  • Number of fibers:271
  • Device length: 3m (split beam length 0.5m)
  • Arrangement: Hexagonal Dense Pile Array
  • Duty Cycle:52%
  • Split strategy:1:7
  • Closed End Connector: Standard SMA905
  • Split-end connector.:Standard SMA905
  • Closed end face size: hexagonal with side length 0.459mm
  • Split bundle end face dimensions: 6 pcs φ0.385; 1pcs φ0.05
  • Channel Yield:≥99%
  • Yield rate of channels within 4 circles of the center: 100%

     Application:

     *Silicon photonics field

     *PIC coupling application

     *Grating coupling applications

     *High-efficiency coupling of small mode spot laser chips

     *Non-dimmable high-efficiency coupling

     *Resistant to reflow soldering applications

     *High power applications

Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber 0 Fiber Arrays for High-End Chip Manufacturing Double Cladding 2D Arrays with PM Fiber 1

Nufren/Coherent PM Single Mode Fiber            Corining PM Single Mode Fiber

PM-S350-HP                                                          PM1550

PM-S405-XP                                                          PM980

PM630-HP                                                             PM1300

PM780-HP                                                             PM850

PM980-XP

PM1300-XP

PM1550-XP

PM2000D
