FTTR Active Distribution Unit Hybrid Components Optical splitter

  • FTTR Active Distribution Unit Hybrid Components Optical splitter
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Model Number SC
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, T/T, Western Union
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type Indoor Field Optical Hybrid Cable (XC/UPC) Insertion Loss ≤ 0.50 DB
Return Loss ≥ 45 DB Rated Voltage(Output) 54-56V
Rated Current (Output) 2A Size 160 Mm X110 Mm X32mm
Material PC+ASA Port XC/UPC
Leave a Message
Product Description



Overview

The Active Distribution Unit is an active optical device used to connect the main FTTR and the sub FTTR. It provides optical signals and power input for the sub FTTR. The products can be installed in an indoor information box or on a wall.





Features & Benefits

*Photoelectric composite interface.

*Multi-level splitting.

*Unified Puyu 2.0 appearance design.

*No need for closure opening, simplifying fiber connection and disconnection.





Structure

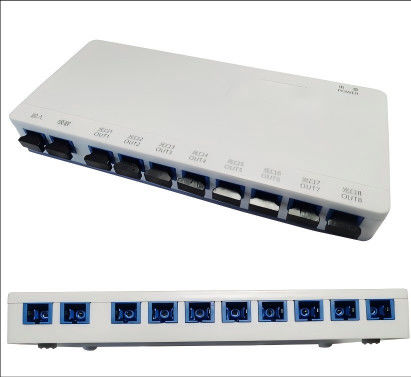

FTTR Active Distribution Unit Hybrid Components Optical splitter 0





Specifications



Port distribution table

POWER Power adapter input
INPUT Photoelectric input port
SUB Optical cascade port
OUT1,OUT2,OUT3,OUT4,OUT5,OUT6,OUT7,OUT8 Photoelectric output port



Dimensions (HxWxD) 160 mm x110 mm x32mm
Port XC/UPC

Installation mode		 Indoor wall-mounted,or deployed inside the information box
NOTE
● Do not install the device outdoors.
● Do not install the device in an indoor environment with
water intrusion risks.
Power supply mode Power supply by the photoelectric composite input port
Rated voltage(Output) 54-56V
Rated current (Output) 2A
Material PC+ASA
Flame spread rating UL94-VO
IK impact IK06
IP rating IP20
Color White (YB816)



Optical Parameters

Operation bandwidth 1260 nm to 1550 nm
Split ratio Uneven 1:9

Insertion loss		 From INPUT port to
OUT1/2/3/4/5/6/7/8 port		 ≤16.3 dB
From INPUT port to SUB port ≤2.4 dB
Return loss ≥50 dB



Environmental Parameters

Working temperature 0°C to 45°C
Working humidity 5% to 95% (non-condensing)



Adapter Performance Specifications

Typical insertion loss 0.5 dB
