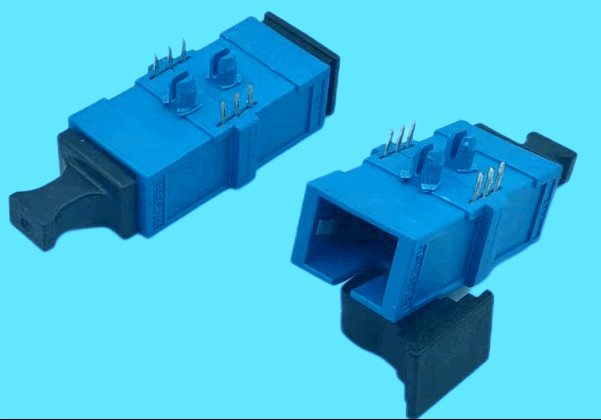

Photoelectric Adapter SC-UPC-SC-UPC fiber optic connection hybrid connectors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | Photoelectric Adapter SC-UPC-SC-UPC | Maximum Working Voltage | 56V |
|---|---|---|---|
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Color | Green/blue/aqua And Other Custom Colors | Flame Retardant Grade | UL94V-0 |
Product Description
Overview
A photoelectric adapter is used to connect an SC connector of a power over fiber (PoF) cable to an SC connector. It can also be used with a multimeter to check the circuit continuity and optical performance of the PoF cable
Features & Benefits
*Excellent optical performance
*Stable environment performance
*Small size and simple structure
*Zirconia ceramic sleeve material

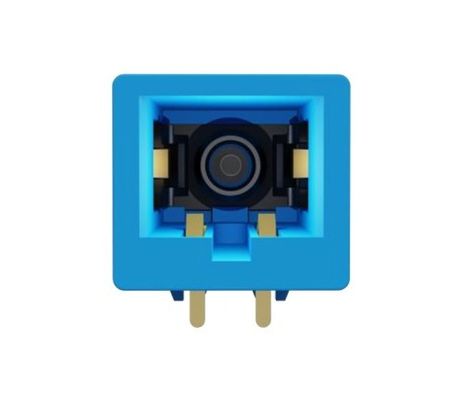

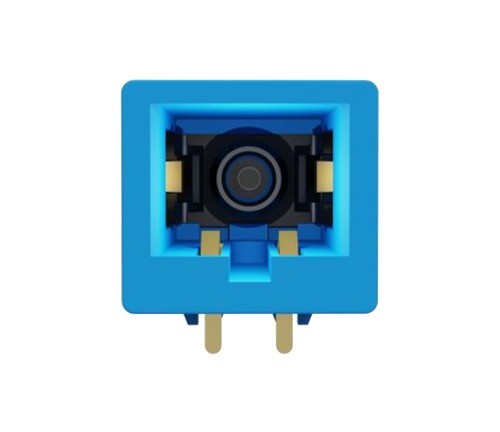

Structure
Specifications
| Color | Green/blue/aqua and other custom colors |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Contact resistance | ≤30mΩ |
| Maximum Working Voltage | 56V |
| Maximum Voltage | 1500V 60s |
| Rated current | 1.5A |
| Working Temperature | -40°C~85°C |
| Flame retardant grade | UL94V-0 |
| Environmental Specifications | |
| Operating temperature | -10℃ to+65℃ |
| Storage temperature | -40C to +70°℃ |
| Operating humidity | ≤95% (+40℃) |
