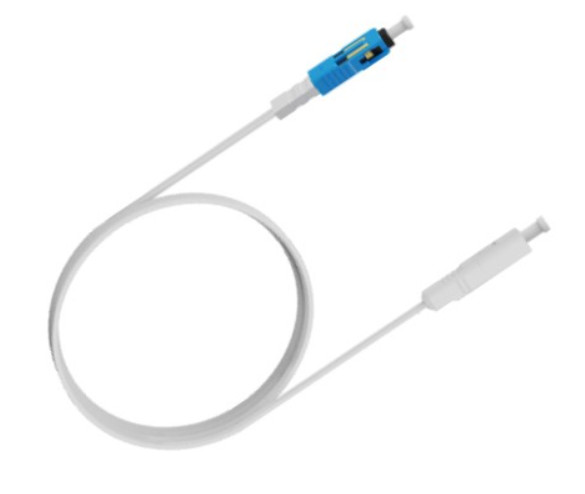

Indoor Field Optical Hybrid Cable (XC/UPC) backbone fiber
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | Indoor Field Optical Hybrid Cable (XC/UPC) | Fiber | G.657A2 ,1core |
|---|---|---|---|
| Insertion Loss | ≤ 0.50 DB | Return Loss | ≥ 45 DB |
| Contact Protection Filler | Optical Silicone Grease | Assembly Time | ≤1 Min |
| Material | Woven Copper,7X0.16 Mm/26 AWGX2 | Lead Spacing | 1.50±0.03 Mm (Key Size) |
Product Description
Overview
Indoor on-site optical hybrid cable is a hybrid cable with integrated fiber optic and power transmission copper wires, which is suitable for indoor conduit cabling, on-site fiber optic connection and power supply scenarios for terminal equipment.
It is suitable for indoor conduit wiring, terminal equipment on-site fiber optic connection and power supply scenarios, providing data transmission and equipment remote power supply functions.
Features & Benefits
●Optical and electrical integration, at the same time to provide data transmission and equipment remote power supply function
●Similar wires can be wired, spliced and terminated on site
●Factory prefabricated or field terminated XC/UPC optoelectronic connector
●Superior bending performance and good flexibility, easy to construct.
Structure
Applications
Optical hybrid cable cross-section: key size wire spacing 1.50±0.03mm
Specifications
| Installation Environment | Indoor |
| Port | Double-ended pre-assembled XC/UPC optoelectronic connectors |
| Operating Temperature | -10 ℃~+60 ℃ |
| Operating Humidity | 0%～95%(+40 ℃) |
| Storage Temperature | -15℃~+60 ℃ |
| Rated Operating Voltage (DC) | 48~56V |
| Rated Working Current (DC) | 0.25 A |
| Maximum Load Distance | When the length of the backbone fiber optic hybrid cable is 20 m, the branch fiber optic hybrid cable supports a maximum of 80 m. When the length of the backbone fiber optic hybrid cable is 2 m, the branch fiber optic hybrid cable supports up to 150 m. |
| Flame retardant grade | UL94-VO |
Indoor Field Optical Hybrid Cable Dimensional Description
| Fiber | Fiber | G.657A2 ,1core |
| optoelectronics | material | woven copper,7X0.16 mm/26 AWGX2 |
| Lead spacing | 1.50±0.03 mm (Key size) | |
| Hybrid fiber optic cable outer jacket | material | White: Low Smoke Halogen Free / Invisible: PVC |
| contour | 1.5 mm ×3.0 mm | |
| Optical Hybrid Cable Connector Length | 5/10/15/20/25/30/35/40/45/50/55/60/65/70/75/80 m/Support customization | |
Connector Optical and Mechanical Properties
| Connector Type | Double-ended XC/UPC Optical Hybrid Cable Connectors |
| Size(H×W×D) | 6.5 mm×6 mm×27 mm |
| insertion loss | ≤0.50 dB |
| return loss | ≥50 dB |
| tensile | 50 N |
| Number of insertions and removals | 50 times |
