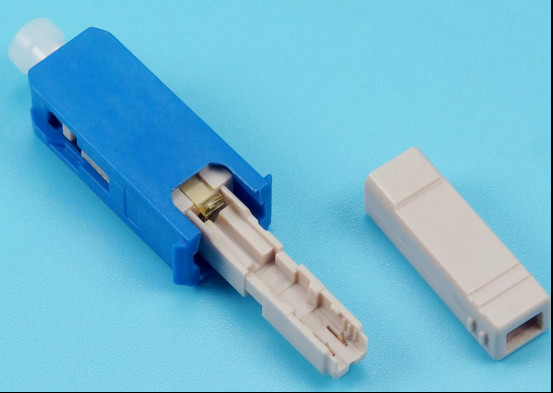

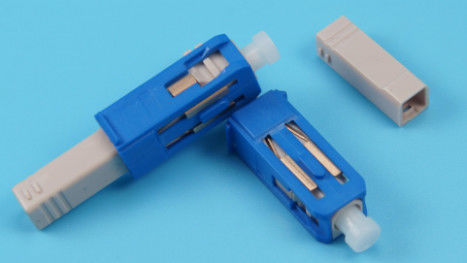

SC Field Assembled Optical Hybrid Connectors

  • SC Field Assembled Optical Hybrid Connectors
  • SC Field Assembled Optical Hybrid Connectors
  • SC Field Assembled Optical Hybrid Connectors
  • SC Field Assembled Optical Hybrid Connectors
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Model Number SC
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, T/T, Western Union
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC/UPC Field Assembled Optical Hybrid Connectors Size(H×W×D) 8.2 Mm × 8.8 Mm ×40.5 Mm
Insertion Loss ≤ 0.50 DB Return Loss ≥ 45 DB
Contact Protection Filler Optical Silicone Grease Assembly Time ≤1 Min
Leave a Message
Product Description



Overview

SC field assembled photoelectric hybrid connectors do not need fusion splicing equipment, using its own tools, can be directly terminated at the construction site, fast and easy to connect/terminate the photoelectric Hybrid connectors are suitable for on-site fiber optic connection and power supply scenarios for terminal equipment, providing data transmission and remote power supply for equipment.



Features & Benefits

*Optical and electrical integration, at the same time to provide data transmission and equipment remote power supply function

*Simple and stable on-site rapid optical connector fabrication with indoor on-site optical hybrid cables.

*Simplified operation, assembly time <1 min

*Optical silicone contact protection, permanent physical stability of fiber optic connection

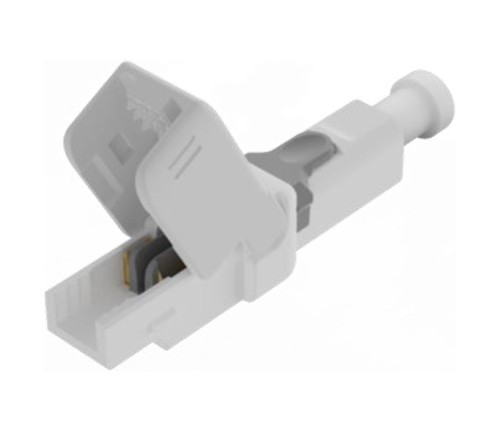

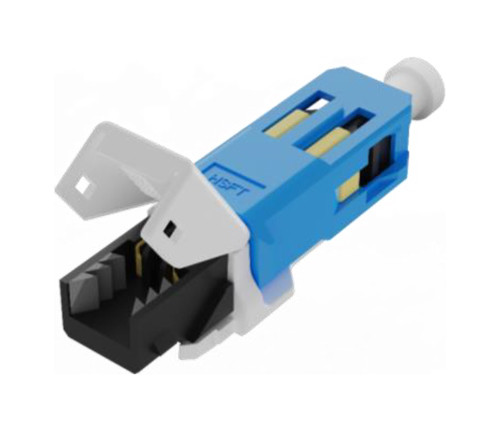

Structure

SC Field Assembled Optical Hybrid Connectors 0

Applications

SC Field Assembled Optical Hybrid Connectors 1 SC Field Assembled Optical Hybrid Connectors 2 SC Field Assembled Optical Hybrid Connectors 3



Specifications



Installation environment Indoor
Operating temperature -10℃~+60℃
Operating Humidity 0%~95%(+40℃)
Rated working voltage (DC) / rated working current (DC 48~56V /0.2 A)
Matching tools 100:1 matching fiber optic terminator and coating stripper



Connector Type SC/UPC Field Assembled Optical Hybrid Connectors
Size(H×W×D) 8.2 mm × 8.8 mm ×40.5 mm
Insertion Loss ≤ 0.50 dB
Return Loss ≥ 45 dB
Tension ≥20 N
Torque ≥10 N
Assembly time ≤1 min
Repeat assembly 5 times
Contact protection filler Optical Silicone Grease
Electrical contact 2 sets
Punctured electrical contact spacing 1.50±0.03 mm (critical dimension)



Operation Guide

SC Field Assembled Optical Hybrid Connectors 4      SC Field Assembled Optical Hybrid Connectors 5      SC Field Assembled Optical Hybrid Connectors 6

 I feed into a fiber             II Tighten the fiber optic cable   III Sleeving Tail sleeve
