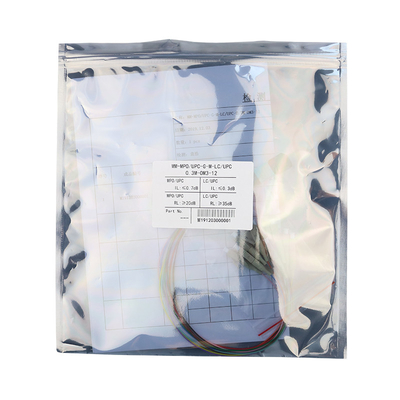

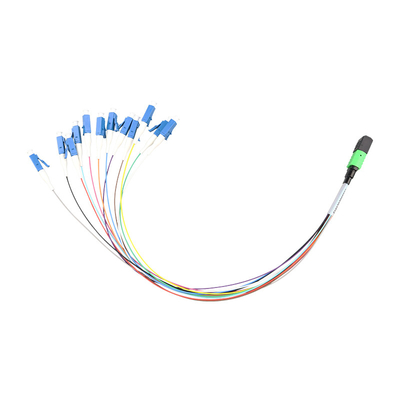

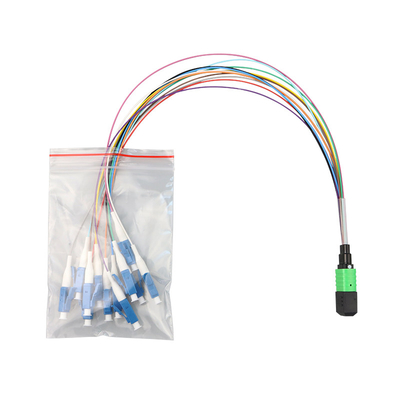

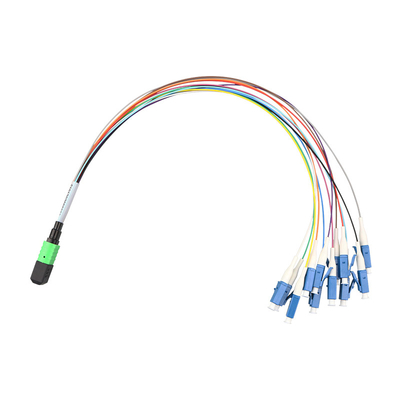

4 core 8 core Fanout patch cord with mtp/mpo connector

Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Mode Single Mode And Multimode Insertion Loss (dB) ≤0.70 (Standard) ≤0.35 (Elite)
Return Loss (dB) ≥60 Single Mode Durability (dB) ≤0.2 (500 Times Mating)
Tensile Strength (kgf) 10 Working Temperature (℃) -20 ~ +70
Leave a Message
Product Description

MPO/MTP Pre-terminated Patch Cords/Cables





MTP/MPO Fiber Optic Patch Cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO/MTP connector. The connector might be female or male with guide pin. The fiber support single mode and multimode, the single mode fiber including G.652D / G.657A1 / G.657A2, the multimode fiber including OM1 / OM2 / OM3 / OM4 / OM5, or bending insensitive multimode cable.

With strong MPO/MTP product design and manufacturing ability, we could provide products with tailed to customer requirement. All products we delivered with excellent performance and reliability.


Feature:

•Customized, high adaptability

•Optional different fiber cores and cable structure for different installation requirement

•PVC, LSZH, OFNR, OFNP cable jacket available

•Improved and simplified cabling, reduce cabling spacing

•All patch cables are 100% tested, test report supplied with each cable assembly

•Interferometer, Insertion Loss, Return Loss and Visual Final Inspection testing, all measured values are electronically archived


Application:

•Data Center

•Fiber to the home

•High density fiber optic cable management

•40Gb/s or 100Gb/s Applications



Specifications:

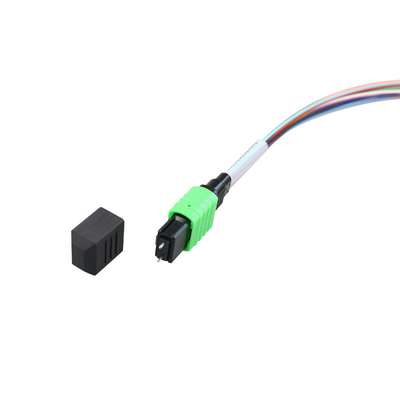

MTP/MPO Connector
Fiber Mode Single Mode Multimode
Insertion Loss (dB)

≤0.70 (Standard)

≤0.35 (Elite)

≤0.70 (Standard)

≤0.35 (Elite)

Return Loss (dB) ≥60 ≥20
Durability (dB) ≤0.2 (500 times mating)
Tensile Strength (kgf) 10
Working Temperature (℃) -20 ~ +70



MTP/MPO Connector Geometry Parameters:



Item X-axis Y-axis
Min Max Min Max
Radius of Curvature (mm) 500 - 50 -
Polishing Angle 0-0.2 0+0.2 8-0.2 8+0.2
Fiber Height (nm) 1000 ~ 3000
Max Fiber Height Error (nm) 600
Adjacent Fiber Height Error (nm) -300 ~ +300
Avg. Fiber Height Error (nm) -300 ~ +300
Central Concave (nm) 300



Fiber Specification:

Fiber Type Multimode Single Mode
OM1 OM2 OM3 OM4 G.652 G.657
Core Diameter (um) 62.5/125 50/125 50/125 50/125 9/125 9/125
Wavelengths (nm) 850/1300 850/1300 850/1300 850/1300 1310/1550 1310/1550
Max. Attenuation (dB/km) 3.5/1.5 3.5/1.5 3.5/1.5 3.5/1.5 0.36/0.25 0.36/0.25
Min. OFL Bandwidth (MHz·km) 200/500 500/500 1500/500 3500/500 - -
Min. Effective Modal Bandwidth (MHz·km) - 500 2000 4700 - -



Patch Cable Structure



4 core 8 core Fanout patch cord with mtp/mpo connector 0 4 core 8 core Fanout patch cord with mtp/mpo connector 1

Notes:

Fiber Core: 2, 4, 8, 12, 24

Cable Sheath Color:

Yellow – SM Fiber Cable (OS1OS2)

Orange – MM Fiber Cable 62.5/125 (0M1), 50/125 (OM2)

Aqua –MM Fiber Cable 50/125 (OM3)

Violet –MM Fiber Cable 50/125 (OM4)

Strength Member: Aramid yarn

Color Coating Fiber: (2 to 24)xφ250μm colored fiber, international standard color code (YD/T 901-2001), and 12 circular chromatography
