Fiber Array for PLC Splitter and WDM Applications with High Cost-Effectiveness

Place of Origin	CHINA
Brand Name	YOGEL
Certification	ISO9000
Minimum Order Quantity	1
Price	negotiate
Packaging Details	Carton box
Payment Terms	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability	100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Wavelength (nm)	1310 Or 1550 1064	Operating Bandwidth (nm)	±15
Insertion Loss (dB)	≤0.5(Typ 0.4)	PDL (dB)	≤0.05
Power Handling (mW)	≤300	Repeatability (dB)	≤±0.05
Fiber Type (specify Size, Material)	40/48/55, Quartz	NA	0.22
Single Fiber Attenuation	≦1 DB/m	Channel Yield	≥99%

Leave a Message

Product Description

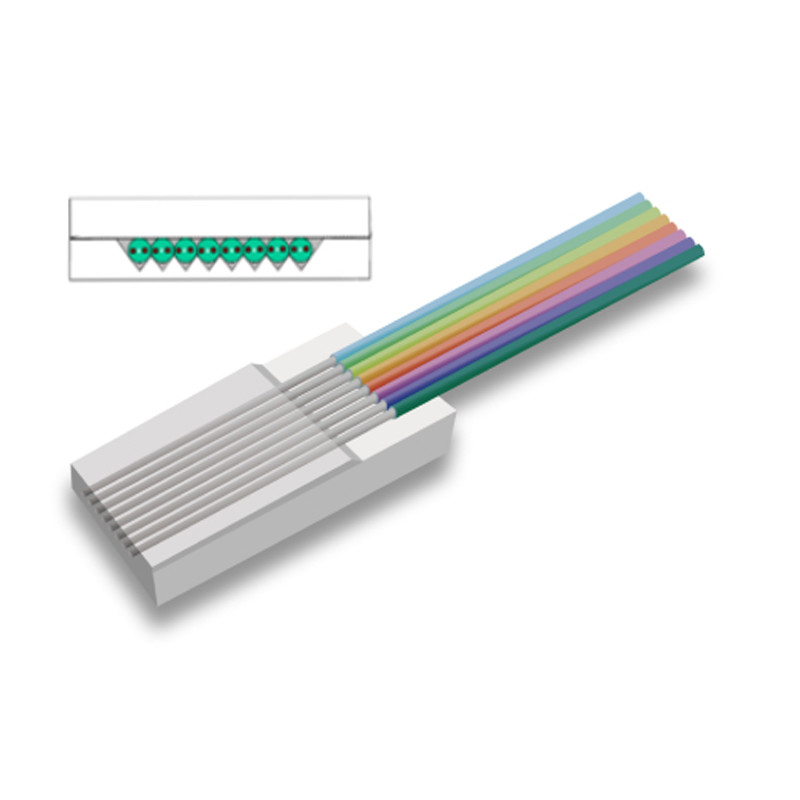

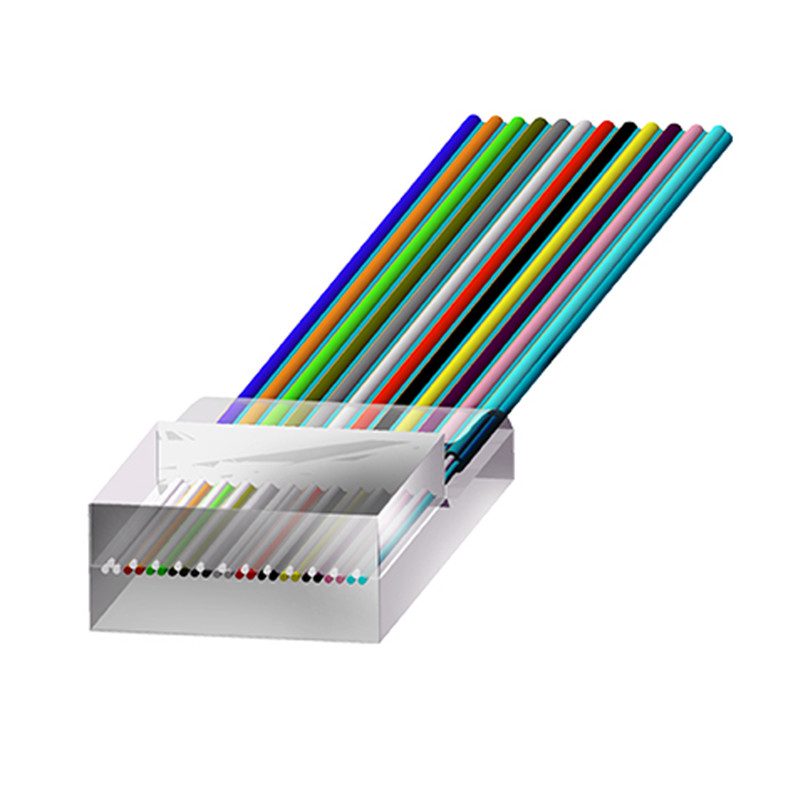

FA Fiber array 4 channel 8 channel

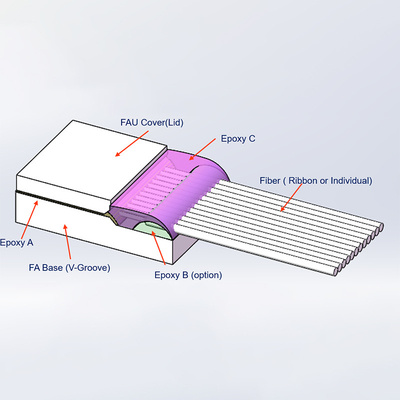

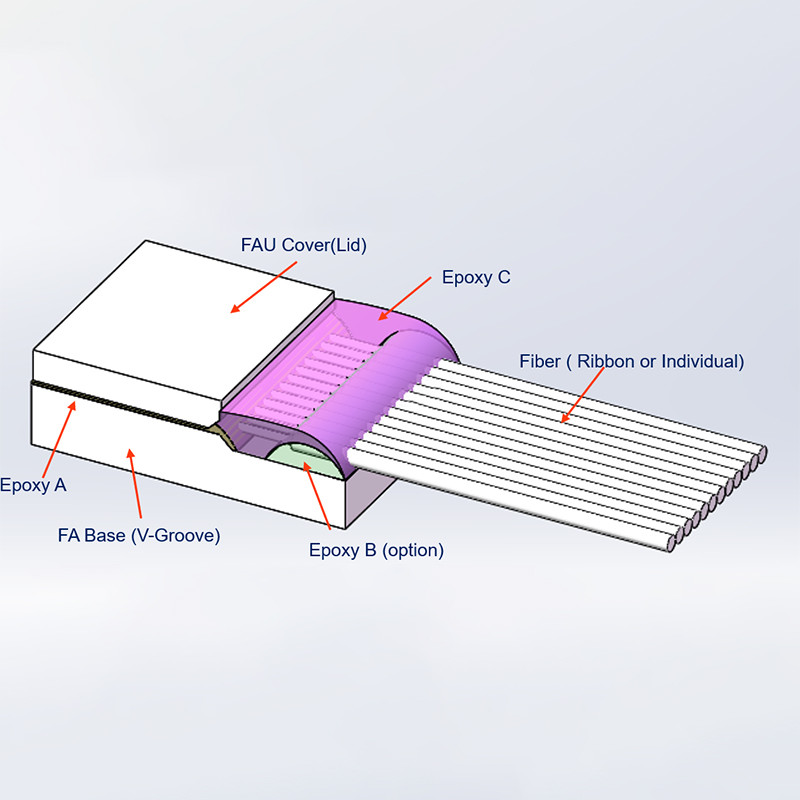

With extra precisely photoetched V-Grooves locating fiber cores and accurately polished endface, Fiber Array greatly reduces the coupling loss between the splitter chip and fiber. It plays an important role as the output ports of PLC splitter

Feature:

High-precision core pitches.
Low Insertion Loss.
High stability and reliability.
Precision angle.
High cost-effective.
Meet Telicordia GR-1221 reliability requirements.
Passed harsh testing

Application:

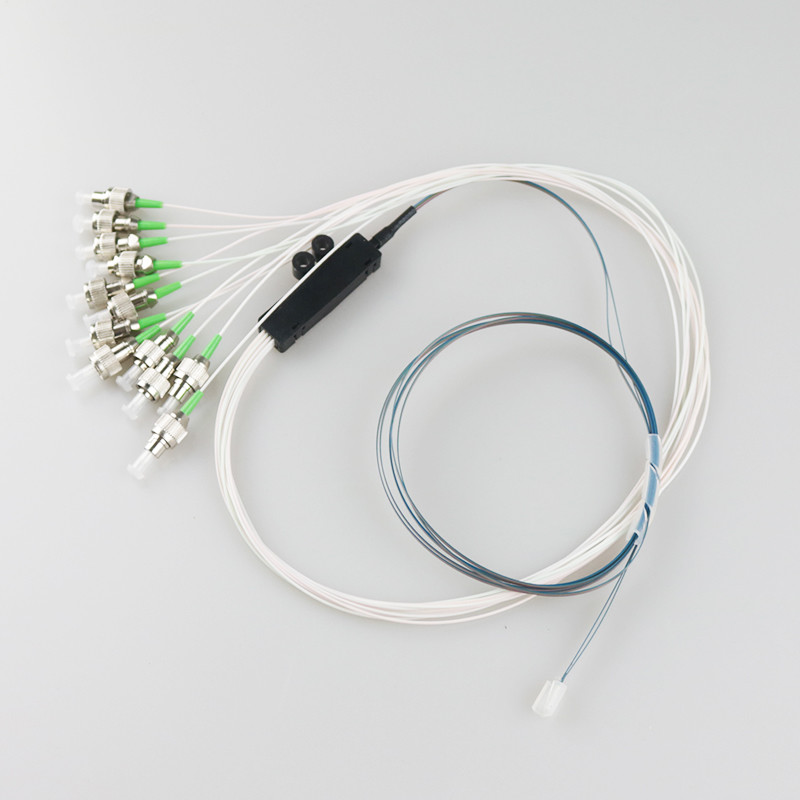

• PLC devices(e.g. Splitter,WDM)
• AWG(Arrayed Waveguide Grating)
• Active / Passive Array of Fiber Optic Devices
• MEMS(Micro-Electro-Mechanical Systems)Devices

Specifications:

Parameter	Unit	Dual Stage Grade P
Center Wavelength (λc)	nm	1550
Typ. Peak Isolation( Port Nout to Port Nin)	dB	52
Min. Isolation (Port Nout to Port Nin), λc ± 30 nm, 23 ℃, all polarization	dB	35
Typ. Insertion Loss (Port Nin to Port Nout), λc, 23 ℃, all polarization	dB	0.6
Max. Insertion Loss (Port Nin to Port Nout), λc ± 20 nm, all polarization	dB	0.9
Min. Return Loss (Input/Output)	dB	55/55
Directivity (Port Nin to Port Min, N≠N), λc, 23 ℃	dB	55
Min. Crosstalk ( Port Nin to Port Mout, N≠M), λc, 23 ℃	dB	50
Max. Polarization Dependent Loss, λc, 23 ℃	dB	0.15
Max. Polarization Mode Dispersion	ps	0.07
Max. Optical Power (Continuous Wave)	mW	300
Fiber Type		SMF-28
Max. Tensile Load	N	5
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85
