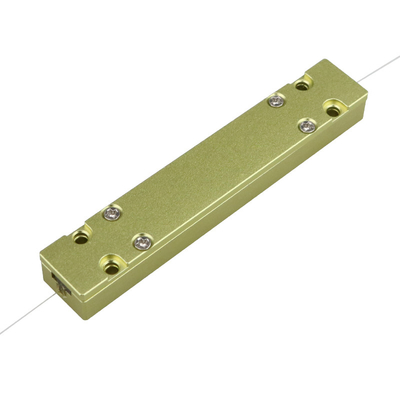

Compact Isolator Polarization Beam Combiner/Splitter IPBC/IPBS Series for High Power Laser Applications

  • Compact Isolator Polarization Beam Combiner/Splitter IPBC/IPBS Series for High Power Laser Applications
  • Compact Isolator Polarization Beam Combiner/Splitter IPBC/IPBS Series for High Power Laser Applications
  • Compact Isolator Polarization Beam Combiner/Splitter IPBC/IPBS Series for High Power Laser Applications
  • Compact Isolator Polarization Beam Combiner/Splitter IPBC/IPBS Series for High Power Laser Applications
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Center Wavelength (Ac) 1310,1480 ,1550 OperatingWavelength Range λc±20
Typ.Insertion Loss 0.45 DB Max.Insertion Loss 0.7 DB
Leave a Message
Product Description
Isolator Polarization Beam Combiner/Splitter (IPBC/IPBS Series)


Description

The Isolator Polarization Beam Combiner/Splitter is a compact device which provides both polarization beam combining and optical isolation in one integrated component. The most common application is to combine the light of two pump lasers into one single fiber to double the pump power in EDFA or Raman Amplifier. IPBC/IPBS has extremely low insertion loss, and it can improve the amplifier performance.


Feature:


Application:

* laser welding, cutting
* Atmospheric Spectrometry
* laser cleaning
* High Power Laser Flexible Delivery



 Specification:

Parameter Unit Single stage Dualstage
Center Wavelength (Ac) nm 1310,1480  1550

OperatingWavelength Range		 nm λc±20
Typ.Insertion loss dB 0.45 0.55
Max.Insertion loss dB 0.7 0.8
Min.Isolation dB 20 42
Min.Extinction Ratio(for splitter only) dB 20 20
Min.Return Loss dB 50
Directivity dB 50
Max.Optical Power(continuous wave) mW 500
Fiber Type   PM Panda Fiber for Ports 1&2,SMF-28 or PM Panda Fiber for Port 3
Max.Tensile Load N 5
Operating Temperature ℃ -5 to+70
Storage Temperature ℃ ℃ -40 to+85

'ILis 0.3dB higher,RLis 5dB lower,and ER is2 dB lower for each connector added.Connector key is aligned to slow axis.



Packing

Compact Isolator Polarization Beam Combiner/Splitter IPBC/IPBS Series for High Power Laser Applications 0



IPBC- ①-②②-③-④-⑤-⑥ IPBS -①-②②-③-④-⑤-⑥
①:Stage ②②:Wavelength ③:Connector Type
31-1310 nm 1-FC/UPC
48-1480 nm 2-FCIAPC
55-1550 nm 3-SC/UPC
SS-Specify 4-SC/APC		 ④:Fiber Jacket
1-Single stage B-250μm Panda Fiber
2-DualStage L-900 μm Loose Tube
  S-Specify
⑤:Fiber Type forPort 3 N-None
S-Specify		 ⑥:Fiber Length
1-SMF-28 Fiber   Q-0.75m
2-Slow Axis Aligned 45°to Port 1 S-Specify
3-SlowAxis Aligned to Port 1
S-Specify
