High Productivity Large Diameter Fiber Thermal Strippers for Chemical Strip Draw-backs
Product Details
| Applicable Fiber | Buffered Silica Fiber | Accepted Coating Material | Acrylate |
|---|---|---|---|
| Cladding Diameter | 60μm To 800μm | Coating Diameter | 100μm To 1000μm |
| Fiber Count | Single Fiber (Simplex) | Stripping Length | ≤58mm (adjustable) |
Product Description

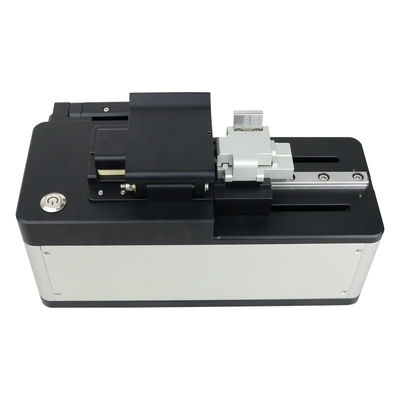

Simplex Large Diameter Fiber Automatic Thermal Stripper
Simplex large diameter fiber automatic thermal stripper ATS99-LD51 provides excellent strength performance when removing 100μm to 1000μm buffer from optical fibers. Heating temperature and duration are fully adjustable for a variety of buffer materials. It always gives customers stable operation, high quality of stripping and productivity with its auto motor and linear motion guide bearing. Self-centering blades eliminate the need for an external guide and make replacement quick and easy. Designed for use with different buffer and cladding diameter of fiber holder system, the ATS99-LD51 is an ideal solution for stripping when high strength fusion splices are a must.
Feature:
Ÿ High Quality, High Productivity, More convenience
Ÿ Field serviceable stripper blade & fiber holder
Ÿ Stabilized stripping with automatic motor
Ÿ Consistent quality of stripping.
Ÿ No Fiber Crack or Degradation & Keep High Tensile Strength
Ÿ High Tensile Strength > 4kg/f
Ÿ Applicable for simplex large diameter fiber buffer from 100μm to 1000μm
Ÿ Customized setting with adjustable heating temperature, time, stripping length:
--- Heating temperature range: 60℃～120℃
--- Heating time range: 0s~20s
--- Stripping length range: 1mm~58mm
Ÿ Chemical Strip Draw-backs Resolved (Drawback of chemical strip as below):
--- Difficult control of strip lengths
--- Chemical residues on tripped fiber end
--- Rugged shapes on strip ends
Application:
* laser welding, cutting
* Atmospheric Spectrometry
* laser cleaning
* High Power Laser Flexible Delivery
Specification:
| Model No. | ATS99-LD51 |
| Applicable Fiber | Buffered Silica Fiber |
| Accepted Coating Material | Acrylate |
| Cladding diameter | 60μm to 800μm |
| Coating Diameter | 100μm to 1000μm |
| Fiber Count | Single fiber (Simplex) |
| Stripping Length | ≤58mm (adjustable) |
| Fiber Holder* |
Available Separately (Changeable) |
| Heater Temperature Range |
60°C to 120°C (adjustable) |
| Heating Time |
0s to 20s (adjustable) |
| Blade life* | 30,000 strip blade life for single fiber cleaves |
| Field replaceable blade | Yes, use RB-LD463 |
| Language | English/Chinese |
| Monitor | 2.8 inches Touch Color LCD |
| Power | 12 VDC, 3 A (Provided by External Power Supply) |
| External Power Supply | 100 - 240 VAC, 1.0A, 50/60 Hz |
| Dimensions (W x D x H) | 200(W)×80(D)×110(H) mm |
| Weight | Approx. 1.6KG |
| Operating Conditions |
0 °C to 40 °C, 0% - 85% RH (Non-Condensing) |
| Storage Conditions |
-40 °C to 80 °C, 0% - 95% RH (Non-Condensing) |

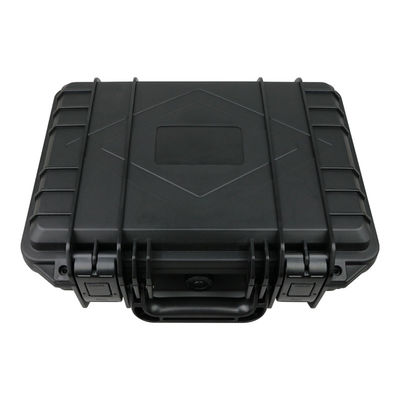

Packing
