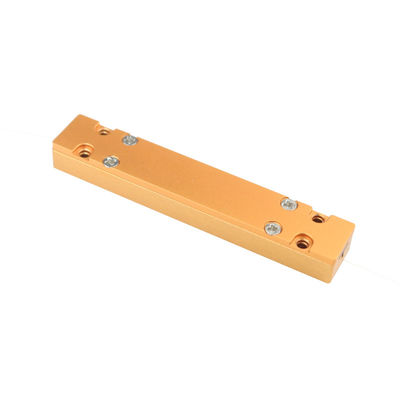

ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor

  • ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
  • ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
  • ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
  • ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength (nm) 1070 1080 Insertion Loss (dB) ≤0.2
Dimensions 80(L)×12 (W)×5(H) Storage Temperature ’-40 To+85
Tolerance On RSS Center Wavelength 2nm Min.Attenuation (RSS Wavelength) 20 DB
Leave a Message
Product Description
Fiber Bragg Gratings

The Raman Scattering Suppressor ClearCut Fiber Bragg Grating products are ultra low insertion loss fiber bragg gratings for high power fiber lasers. With AFR's ClearCut designing and special process, the devices can handle kilowatt level pump power and signal power with recoated only. It is the only cost-effective solution that eliminates the SRS at its source and enables immunity from back reflection from the work piece


Feature:
● High Power Handling
● Fiber Laser
● Low Temperature Slope
● Exceptional Reliability

Application:
● Fiber Laser

Package Dimension:


ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor 0



ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor 1


Ordering Information:

TFBG-①①①①-②②②②-③-④④/④④④-P⑤⑤⑤⑤-⑥



①①①①: RSS Wavelength ②②②②:Passband Center Wavelength

③: Fiber Type 1132 - 1132 nm 1080 - 1080 nm N - Non-PM SSSS - Specify SSSS - Specify P - PM

④④/④④④:Fiber Core/Cladding Dimension ⑤⑤⑤⑤: Signal Power Handling

⑥: Pigtails Length (Each Side) 20/400 - 20 μm/400 μm 3000 - 3000 W A - 1 m B - 1.2 m C - 1.4 m

SS/SSS - Specify SSSS - Specify S - Specify(≤1.7 m)





 Specification:



Parameter Unit   Value
Passband Center Wavelength nm 1070   1080
RSS Wavelength nm 1123   1132
Tolerance on RSS Center Wavelength nm   2
Bandwidth of RSS Wavelength at 95% nm   ≥20
Max.Insertion Loss (Passband Center Wavelength) dB 0.2
dB
Min.Attenuation (RSS Wavelength) dB   20
Min.Return loss (RSS Wavelength) dB   25
dB
Fiber Core Dimension μm 10 14 20 25
Max.Core Signal Power Handling W 300 2000 3000 4000
Max.Core RSS Power Handling W 3 20 30 40
Fiber Cladding Dimension μm 125 250 400
Max.Clad Pump Power Handling W 300 2000 3000
Package Dimensions mm 80(L)×12 (W)×5(H)
Storage Temperature ℃ ’-40 to+85
