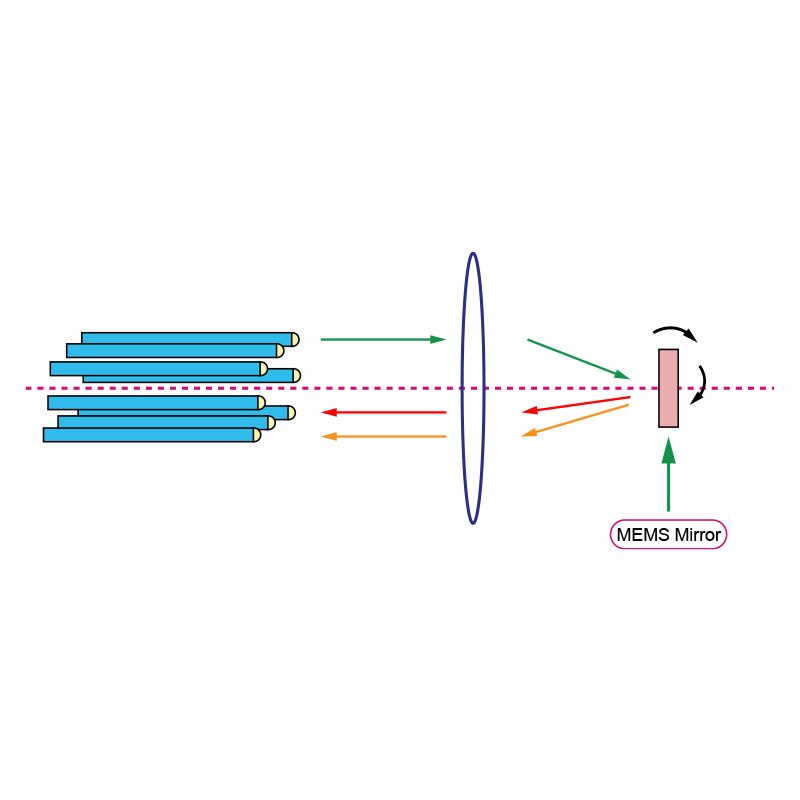

1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility

  • 1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility
  • 1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility
  • 1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility
  • 1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility
  • 1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility
Place of Origin CHINA
Brand Name YOGEL
Certification ISO9000
Minimum Order Quantity 1
Price negotiate
Packaging Details Carton box
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength (nm) 1310 Or 1550 1064 Operating Bandwidth (nm) ±15
Insertion Loss (dB) ≤0.5(Typ 0.4) PDL (dB) ≤0.05
Power Handling (mW) ≤300 Repeatability (dB) ≤±0.05
Leave a Message
Product Description
Optical Switch ( 1x1,1x2 )

Feature:
Low Insertion Loss
High crosstalk
Compact package

Application:
Cofiguratable OADM
Optical Cross and connection system
Network Monitor
Optical fiber ring protection

Package Dimension:

1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility 0


Ordering Information:

1x1 and 1x2 Optical Switches with High Power Handling Capacity for Versatility 1



 Specification:

Parameter

Type		 Value

1x1,1x2
Wavelength (nm) 1310 or 1550 1064
Operating bandwidth (nm) ±15
Insertion Loss (dB) ≤0.5(Typ 0.4) ≤0.7(Typ 0.5)
PDL(dB) ≤0.05
Cross Talk(dB) ≥55
≥50
Return Loss(dB) ≥55
≥50
Power handling(mW) ≤300
Repeatability(dB) <±0.05
Switch Time (ms) 10

Lifetime (cycle) >1,000,000
Switch mode Latching or Non-latching
Operating Temperature(C) -5～+70
Storage Temperature(℃) -40～+85
Drive Voltage(V) 5±0.5 DC or 5V Pulse
Work Current (mA) <50
Fiber Type SMF-28e HI1060
Fiber length (m) Read order information
Dimension (LxMxH)(mm) (L)26.5×(W)13.4×(H)11
*Above specifications are for devices without the connectors.

*For devices with connectors,IL will be 0.3dB higher,RL will be 5dB lower








Electrical Drive:
Optical Path Electrical Drive Status Sensor
Pin1 Pin5 Pin6 Pin3-4 Pin7-8 Pin8-9
1-2 +V Pulse N/A N/A close close open
1-3 GND N/A N/A open open close
