Multi-Channel Fiber Optic Rotary Joint Fiber optic slip Rings

Place of Origin	CHINA
Brand Name	YOGEL
Certification	ISO9000
Model Number	NO
Minimum Order Quantity	1
Price	negotiate
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	100 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Bandwidth	±50nm	Wavelength	1310/1550(SM);850/1310(MM)
Insertion Loss (Room Temperature)	≤ 4.0dB	Insertion Loss Fluctuation	≤ 2.0dB
Return Loss	≥ 40dB(SM)	Power Handling	≤ 23dBm
Tensile Strength	≤ 12N	Rotation Speed	0 ～ 300 Rpm (higher Speeds Can Be Customized)

Leave a Message

Product Description

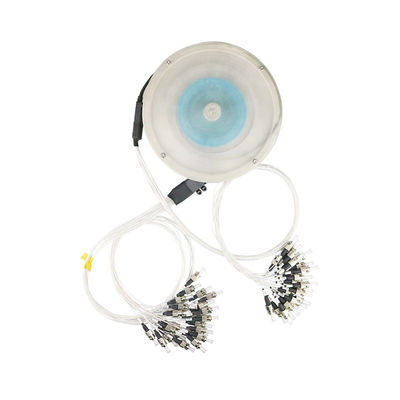

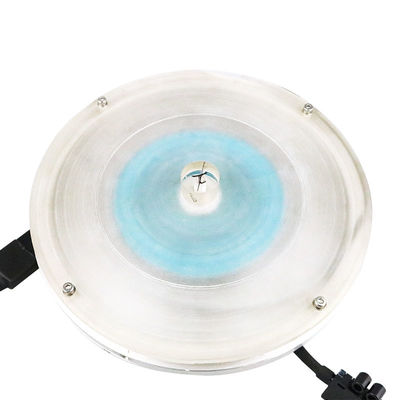

Multi-Channel Fiber Optic Rotary Joint

Product Introduction

The FRM series is a high-density channel product that can be configured with single-mode, multi-mode, or single-multi-mode hybrid fibers.

Products with resistance to environmental factors such as shock, vibration, high and low temperatures are available. The product line includes

two extended models, FRMA and FRMB.

FRMA features a tail fiber outlet and often used for 8 or more channels, with up to 31 channels available.

FRMB features a flange port, without tail fiber FRM Series Multi-Channel Fiber Optic Rotary Joint output, and can be configured with 2 to 4 channels

Main Technical Performance

Indicator Name	Value
Bandwidth	±50nm
Wavelength	1310/1550(SM);850/1310(MM)
Insertion Loss (Room Temperature)	≤4.0dB
Insertion Loss Fluctuation	≤2.0dB
Return Loss	≥40dB(SM)
Power Handling	≤23dBm
Tensile Strength	≤12N
Rotation Speed	0～ 300 rpm (higher speeds can be customized)
Estimated Lifetime	>100 million rotations
Operating Temperature	-20～60℃ (-40～ 85℃ optional)
Storage Temperature	-50～85℃
Weight (excluding tail cable and connector)	1.6kg
Vibration and Impact Standard	GJB150 Land Mobile
Protection Class	IP54(IP65,IP67 optional)

FRM①-②-③-④-⑤-⑥-⑦/⑧

Example 1:FRMA6-9/125-1310-1.2m-Φ2.0K-FC/PC ； Example 2:FRMB4-9/125-1550-FC/PC

①Model Type	②Fiber Type	③Operating Wavelength	Tail Fiber
A(Fork Plate Type) B(Fork Pin Type)	25/400(sparse model) 105/125(dense multi-modal model) 200/220(dense multi-modal model) 800/1000(dense multi-modal model)	850 1064 1550	④Tail Fiber:length 1.2m,S (customer specified) ⑤Package:φ0.6mm,φ2mm,φ3mm,K=armor-clad ⑥Connector Type:FC,ST,SC,LC,N=no connector ⑦End Face Type:PC (flat),APC(angled)
