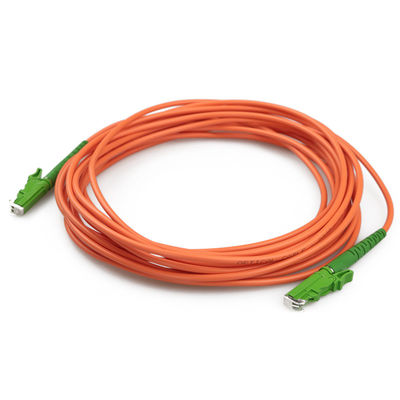

E2000/APC to E2000/APC, LSZH, 3.0mm, Simplex, G.657A2 or OM2, 3 meters Indoor patch cord

Place of Origin Shanghai
Brand Name Yogel
Certification ISO9000 ,RoHS,CE
Model Number E2000/APC
Minimum Order Quantity 1
Price Negotiate
Packaging Details Anti-static bag, Cartoon
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000pcs/Month
Product Details
Test Wavelength 1310/1550nm Insertion Loss Typ. ≤0.15 DB, Max. ≤0.30 DB
Return Loss ≥60 DB Repeatability ≤0.10 DB
Changeability ≤0.20 DB Durability (1000 Mating) ≤0.20 DB
Operation Temperature -40 ~ +80℃ Storage Temperature -40 ~ +85℃
Connector End E2000/APC Cable Jacket LSZH
Cable Diameter 3.0mm Fiber Count Simplex
Fiber Type Single Mode, G.657 A2 Or OM2 Cable Length 5m Or 10m (Optional)
Leave a Message
Product Description

E2000 Series Cable Assemblies – Patch Cords/Jumpers

Hybrid Always Available





E2000/APC to E2000/APC, LSZH, 3.0mm, Simplex, G.657A2 or OM2, 3 meters Indoor patch cord 0









Description

Cable assemblies are offered in a variety of combinations. Connectors include SC, FC, ST, LC, E2000, MU, MPO/MTP, SMA, MTRJ, D4, and DIN. 4.1mm, 3.0 mm, 2.8mm, 2.0 mm, 1.8mm, 1.6 mm, 1.2mm, and 900μm cables in PVC, OFNR, LSZH, OFNP jackets, and G.652D, G.655, G.657A1, G. 657A2 and G.657B3 @ single mode, OM1, OM2, OM3, OM4, and OM5 @ multimode fiber types are available.

We have the patch cords you need to be stocked and on the shelves. Choose from our large inventory of single-mode and multimode patch cords. The Stocked Patch cords are available in the most popular connector combinations. Assembled using reliable and durable ceramic ferrules, you can choose between PC, UPC, and APC polish finishes. Most cable assembly styles are available as either simplex, duplex, or multi-fiber. Multimode cords are available in either 50/125 or 62.5/125 versions.

4.1mm, 3.0 mm, 2.8mm, 2.0 mm, 1.8mm, 1.6 mm, and 1.2mm cords include an outer jacket with 900μm buffer surrounded by Aramid Yarn.





Features

* Low insertion loss & High return loss

* Connectors compliant with Telcordia GR-326, European (EN 186270) and International (IEC 61754-15) standards

* Cable compliant with Telcordia GR-409

* Mechanical performance compliant with IEC 61754-15

* RoHS & REACH compliant - Riser, Plenum, and LSZH rated cables available





Applications

* Building interconnections (campus LAN)

* Connector end in optical distribution boxes and termination boxes

* Trunk lines direct to telecommunications closet

* Cross-connect in the outdoor closet

* Distribution connect in central office ODF / MDF

* Fiber patch panels within communications closets

* Links between Internet electronic equipment (SFP module, Switch, OLT, ONU, etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.), and fiber patch panels





Specifications



Item Parameter
Single Mode Multi-Mode
PC UPC APC PC
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector End SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Fiber count Simplex, Duplex, Multi-fiber
Fiber type Single Mode: G. 652D, G. 655, G. 657A1, G.657A2, G.657B3 (9/125μm)
Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. (Customized)
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326





Connector End Types - (E2000 Series)



Type Reference Item Descriptions (Default, Options are available)
E2000 IEC 61754-15 Single mode simplex APC: Green connectors, Green boots
UPC: Blue connectors, Blue boots
Single mode duplex APC: Green connectors, Green boots
UPC: Blue connectors, Blue boots
Multimode simplex UPC: Grey Connectors, Grey boots
Multimode duplex UPC: Grey Connectors, Grey boots





Dimensional Diagrams - (E2000 Series)



E2000/APC to E2000/APC, LSZH, 3.0mm, Simplex, G.657A2 or OM2, 3 meters Indoor patch cord 1







Cable Components



E2000/APC to E2000/APC, LSZH, 3.0mm, Simplex, G.657A2 or OM2, 3 meters Indoor patch cord 2







Cable length of tolerance



Cable Length of Jumper tolerance requirement
Overall length (L) (m) length of tolerance(cm)
0<L≤20 +10/-0
20<L≤40 +15/-0
L>40 +0.5%xL/-0





Optical Characteristics



Item Parameter Reference
Single-mode Multimode
Insertion loss Typ.≤0.15 dB, Max.≤0.30 dB Typ.≤0.15 dB, Max.≤0.30 dB IEC 61300-3-34
Return loss ≥ 60dB (APC); ≥30dB (UPC) IEC 61300-3-6
≥ 50dB (UPC)





End-Face Geometry (3D Interferometer)



Item UPC (Ref: IEC 61755-3-1) APC (Ref: IEC 61755-3-2)
Radius of curvature (mm) 10 to 25 5 to 12
Fiber height (nm) -100 to 100 -100 to 100
Apex offset (μm) 0 to 50 0 to 50
APC angle (°) / 8° ±0.2°
Key error (°) / 0.2° Max.





End-Face Quality



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 (SM) None None IEC 61300-3-35:2015
0 to 65 (MM) None None
B: Cladding 25 to 115 (SM) None None
65 to 115 (MM) None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None





Mechanical Characteristics



Test Conditions Reference
Endurance 500 mating IEC 61300-2-2
Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
Cable retention 100N (patch cable); 5N (pigtail) IEC 61300-2-4
Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
Fall 10 drops, 1m drop height IEC 61300-2-12
Static lateral load 1N for 1h (patch cable); 0.2N for 5min (pigtail) IEC 61300-2-42
Cold -25°C, 96h duration IEC 61300-2-17
Dry heat +70°C, 96h duration IEC 61300-2-18
Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
Humidity +40°C at 93%, 96h duration IEC 61300-2-19





Order Information



Connector End A - Connector End B, Connector Brand,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length



Example:

E2000/APC to E2000/APC, SUHNER,

OFNR, 3.0mm, Simplex, G.657A2, 10 meters

Indoor patch cord



Samples:



E2000/APC to E2000/APC, LSZH, 3.0mm, Simplex, G.657A2 or OM2, 3 meters Indoor patch cord 3





E2000/APC to E2000/APC, LSZH, 3.0mm, Simplex, G.657A2 or OM2, 3 meters Indoor patch cord 4



Options



E2000/APC to E2000/APC, LSZH, 3.0mm, Simplex, G.657A2 or OM2, 3 meters Indoor patch cord 5
