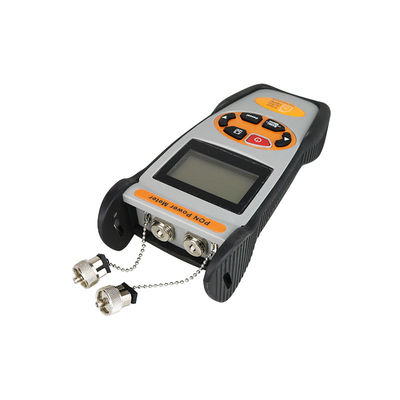

10/XG PON Power Meter 1270/1310/1490/1550/1577/1610nm Simultaneously Display (1610nm for RFoG Solutions) fault isolation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wavelength (nm) | 1270/1310/1490/1550/1577/1610nm | Connatural Uncertainty (dB) | ±0.5 |
|---|---|---|---|
| PDL (dB) | ＜0.25 | Linearity (dB) | ±0.1 |
| Passing Through Insertion Loss (dB) | <1.5 | ORL (dB) | ＞50 |
| Detector Type | InGaAs | Optical Interface | See To Order Information |
| Fiber Type | SM, 9/125um | Display (mm) | Back Lit Sunlight Readable LCD: 128x64 |
| Measurement Unit/Show Results | DB/dBm/xW, P-Pass/F-Fail | Display Resolution (dB) | 0.01 |
| Auto-off Function | Selectable Auto-off | Internal Memory Capacity | 500 Tests With Timestamp |
| Battery Type / Life (continuous Operation) | 3xAA, Non-rechargeable Alkaline 1.5v Battery (not Included) / 180 Hrs | Instrument Case | 1.2 M Drop Tested |
| Operation/ Storage Temperature (℃) | -10 To +60 / -25 To +70 | Relative Humidity | 95% |
| Dimension (mm) | 200x90x50 | Weight (g) | 285 |
Product Description
Optical PON Power Meters
1270/1310/1490/1550/1577/1610nm
Simultaneously Display
(1610nm for RFoG Solutions)
Optical Communications Test Applications
--- FTTx PON acceptance test
--- FTTx PON fault isolation
Description
The PPM22 series Optical PON Power Meter is used for testing FTTx PON fiber optic communications systems.
Common uses include live acceptance testing during service turn-up, and fault isolation during subsequent maintenance, particularly when an ONT has failed.
The new generation 10/XG PON Power Meter is ideal for measuring power in a typical live BPON/EPON/GPON FTTx link and next generation high speed 10G-PON such as XG (S)-PON and 10G-EPON networks, also include RFoG networks. This feature-rich instrument makes for easy pass/fail results storage and reporting. Stable readings inspire user confidence. The clear sunlight readable and backlit display is combined with simple operation, to ensure good quality testing. The instrument features rugged construction, moisture resistance, rubber holster, and captive connector dust caps. The meter displays dBm, xW, and dB. The resolution is 0.01dB. A separate reference for each λ can be stored. Pass/Fail display is available, and Pass/Fail value is user definable. The saved test data with timestamp can be downloaded from the unit onto PC via USB connection using the Data Management Software.
It is connected in-line on a live system, and simultaneously displays the power of all 6 operational PON, RF Video & RFoG wavelengths, including the return signal power.
Features
* Compact, rugged & light-weight
* Large, sunlight readable LCD display
* For B-PON, E-PON, G-PON, XG(S)-PON/10G-EPON, and RFoG networks testing
* In-line testing 1270, 1310, 1490, 1550, 1577 and 1610 nm
* 1610, 1310, 1270 nm Burst Mode testing
* 1310/1490/1550nm, 1610nm & 1270/1577nm Simultaneously Display
* Pass/Fail displays
* Internal memory for 500 records with a timestamp
* Saved test data downloadable to PC using Data Management Software
* User self-calibration can be retrieved in computer through the software
* Convenience for threshold setting, which can set the threshold on the tester
* Offers up to 10 different threshold sets in total
* Backlit display
* 10 minutes Auto-off function can be activated or deactivated with keypad operation
PPM Software
* Download testing data in the meter to a PC via USB
* Download/Upload threshold settings to the meter
* Calibration
Specifications
| Model No. | PPM22-SIR-DV | ||||||
| Wavelength (nm) | 1270 | 1577 | 1310 | 1490 | 1550 | 1610 | |
| Pass Zone 1 (nm) | 1260 to 1280 | 1560 to 1580 | 1300 to 1320 | 1480 to 1500 | 1540 to 1560 | 1590 to 1630 | |
| Isolation (dB) | >30@1310 | >40@1270 | >40@1270 | >40@1270 | >40@1270 | >40@1270 | |
| >40@1490 | >40@1310 | >40@1550 | >40@1310 | >40@1310 | >40@1310 | ||
| >40@1550 | >40@1490 | >40@1490 | >30@1550 | >30@1490 | >40@1490 | ||
| >40@1577 | >30@1550 | >40@1577 | >40@1577 | >30@1577 | >30@1550 | ||
| >40@1610 | >30@1610 | >40@1610 | >40@1610 | >30@1610 | >30@1577 | ||
| Measurement Range | -40 to +10 | -40 to +10 | -40 to +10 | -40 to +10 | -40 to +20 | -30 to +10 | |
| Damage Level (dBm) | ＞+10 | ＞+20 | ＞+10 | ||||
| Measurement Accuracy | |||||||
| Connatural uncertainty 2 (dB) | ±0.5 | ||||||
| PDL (dB) | ＜0.25 | ||||||
| Linearity (dB) | ±0.1 | ||||||
| Passing through insertion Loss (dB) | <1.5 | ||||||
| ORL (dB) | ＞50 | ||||||
| General Information | |||||||
| Detector Type | InGaAs | ||||||
| Optical Interface | See to Order Information | ||||||
| Fiber Type | SM, 9/125um | ||||||
| Display (mm) | Back lit sunlight readable LCD: 128x64 | ||||||
| Measurement Unit/Show Results | dB/dBm/xW, P-Pass/F-Fail | ||||||
| Display Resolution (dB) | 0.01 | ||||||
| Auto-off Function | Selectable Auto-off | ||||||
| Internal memory capacity | 500 tests with timestamp | ||||||
|
Battery type / life (continuous operation) |
3xAA, non-rechargeable Alkaline 1.5v battery (not included) / 180 hrs |
||||||
| Instrument Case | 1.2 m drop tested | ||||||
| Operation/ Storage Temperature (℃) | -10 to +60 / -25 to +70 | ||||||
| Relative humidity | 95% | ||||||
| Dimension (mm) | 200x90x50 | ||||||
| Weight (g) | 285 | ||||||
Note 1: Full Width at Half Maxima (FWHM)
Note 2: At calibration conditions
Typical Connect
Order Information
- Interface:
N: Normal Switchable SC & FC Adapter Caps
P: Premium Switchable SC & FC Adapters
- Polishing:
U: UPC
A: APC
Samples:
| Part # | Model No. | Description |
| 71135 | PPM22-SIR-DV-PA | 10G/XG(S) Selective Optical PON Power Meter with 0.01dB Resolution, 1270/1310/1490/1550/1577/1610nm Simultaneous testing (1610nm for RFoG), Premium Interchangeable SC & FC Adapters, APC Polishing Interface, Data Storage & USB to PC Software Report, Alkaline Battery (3xAA, 1.5V) |
Standard Accessories
| Description | Quantity |
| SC/APC-SC/APC or SC/PC-SC/PC test cord (Optional) | 2 |
| USB cable | 1 |
| CD (Data Management Software & manuals) | 1 |
| Cleaning cotton stick pack | 1 |
| Switchable SC & FC Adapters | 1 for each port |
| Soft carry pouch with Wrist Strap | 1 |
| User manual | 1 |
| QA certificate (ISO9001 compliant) | 1 |
