LC APC to LC APC 2.0 mm Single model Simplex LSZH single core fiber optic cable

Place of Origin Shanghai China
Brand Name Yogel or OEM
Certification ISO9000 ,ROHS,CE
Model Number LC-LC 2.0mm
Minimum Order Quantity 10
Price Negotiate
Packaging Details 1 piece/inner bag, 100pcs/pack
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 10000 pcs/ month
Product Details
Product Name LC APC To LC APC Patch Cord Insertion Loss Typ. ≤0.15 DB, Max. ≤0.30 DB
Return Loss ≥50 DB Cable Diameter 0.9 1.2 2.0 3.0 3.3mm
Jacket Cable LSZH,PVC Fiber Type Simplex And Duplex, G652D, G655, Anything, SM Or MM
Connector Type PC/UPC/APC, SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO, ST SC LC FC, SC/Apc & SC/Upc, SC-SC LC-LC FC-FC ST-ST Or Hybrid Guarantee 1 Year
Leave a Message
Product Description



LC APC to LC APC patch cord

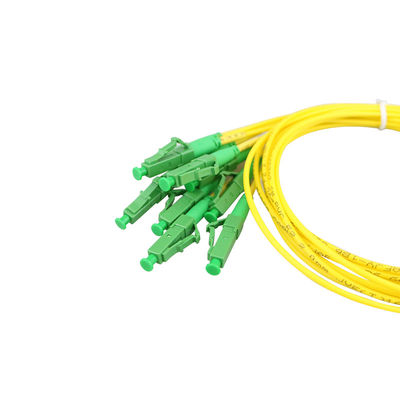

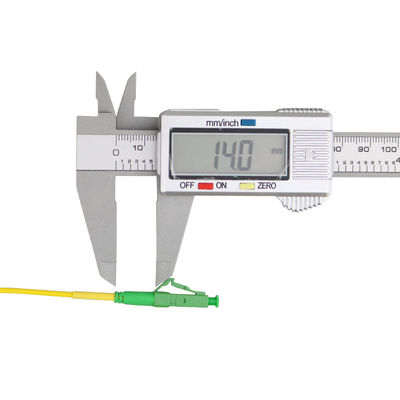

LC APC to LC APC 2.0 mm Single model Simplex LSZH single core fiber optic cable 0 LC APC to LC APC 2.0 mm Single model Simplex LSZH single core fiber optic cable 1LC APC to LC APC 2.0 mm Single model Simplex LSZH single core fiber optic cable 2





Description:



Connectors include SC, FC, ST and LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets and G.652D, G. 657A2 fiber types are available.





Features:



*Low insertion loss & High return loss



*Connectors compliant with Telcordia GR-326



*Cable compliant with Telcordia GR-409



*Mechanical performance compliant with IEC 61754-4



Application:



1. Optic communication system


2. FTTH

3. LAN

4. CATV, EDFA equipment

5. Test instrument

6. Fiber optic sensor



Specifications:



Item

Parameter



Single Mode



Multi-Mode

PC



UPC APC PC
Test wavelength

1310/1550nm



850/1300nm
Insertion loss

Typ. ≤0.15 dB, Max. ≤0.30 dB



Return Loss

≥45 dB



≥50 dB ≥60 dB ≥35dB
Repeatability

≤0.10 dB



Changeability

≤0.20 dB



Durability (1000 Mating)

≤0.20 dB



Connector end

SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC



Cable jacket

PVC, OFNR, LSZH, OFNP



Cable diameter

3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm



Fiber count

Simplex



Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)



Cable length

0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.



Fiber brand

Corning, Sumitomo, Fujikura, YOFC, TFO



Fire resistant

IEC 60794-2-30



Standards Compliant

ROHS, IEC, GR-326





Order information:



LC APC to LC APC 2.0 mm Single model Simplex LSZH single core fiber optic cable 3

LC APC to LC APC 2.0 mm Single model Simplex LSZH single core fiber optic cable 4



Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length



*Connector End A      *Connector End B          *Jacket Cable       *Cable Diameter     *Fiber Count

ASC = Aangle SC                ASC = Aangle SC                     V = PVC                      S = 3.0 mm                      001 = 1

AFC = Aangle FC                AFC = Aangle FC                      L = LSZH                     T = 2.0 mm                      002 = 2

ALC = Aangle LC                 ALC = Aangle LC                      R = OFNR                   M = 1.6 mm

USC = Ultra SC                   USC = Ultra SC                         P = OFNP                    J = 0.9mm

UFC = Ultra FC                   UFC = Ultra FC                          E = PE

UST = Ultra ST                   UST = Ultra ST                           U = TPU

ULC = Ultra LC                   ULC = Ultra LC

                                           XXX = NC

*Fiber Type                  *Multimode          *Cable Length

S1= OS1                             PSC = SC MM            0050=0.5M
0050 = 0.5M                       PFC = FC MM
S2= G.652D                       PLC = LC MM
S3= G.657A1                     PST = SC MM
S4= G.657A2
M1= OM1
M2 = OM2
M3 = OM3
M4 = OM4
M5 = OM5
