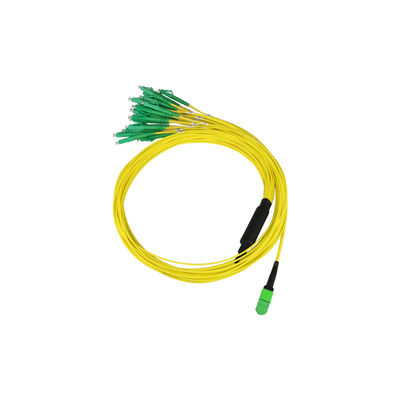

SENKO, LSZH 12F, Type B, Pre-terminated MPO to LC Harness Patch Cords
Connector | SENKO, US CONEC, Etc. | Fiber Mode | Single Mode Or Multimode |
---|---|---|---|
Insertion Loss (dB) | ≤0.3 @ LC/SC/FC/ST/E2000 | Return Loss (dB) | ≥60 (SM), ≥20 (MM) |
Durability (dB) | ≤0.2 (500 Times Mating) | Tensile Strength (kgf) | 10 |
Working Temperature (℃) | -20 ~ +70 |
MPO/MTP Pre-terminated Harness Patch Cords/Cables
Description
MPO Fanout cable assemblies are with a single 12/24 core MPO connector in one end and LC/SC connectors in another end. Directly connecting the backbone cable with the equipment without MPO cassette, besides it, the cable is also used for cable expansion in the data center.
Features
- 12 to 144 core cable connection
- Adopts 4, 8, 12, or 24 core MPO connectors. Reduce fault failure rate and save space
- Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
- Optional multimode OM3, OM4, single-mode G 652D, G 657A2 fiber requirement
- Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
- Use dustproof, compressive strength, tensile strength protective sleeve at both ends, which can effectively protect cables and fiber optic connectors in the transportation and installation process from damage
Standards Compliance
- TIA/EIA-568-C
- IEC-61754-7
- NFPA 262 (OFNP) or IEC 60332 (LSZH)
- IEC-60793
- GR-1435-CORE
Applications
- Data Center
- High-density fiber optic cable management
- 40Gb/s or 100Gb/s Applications
Connector Specifications
MTP/MPO Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) |
≤0.70 (Standard) ≤0.35 (Elite) |
≤0.70 (Standard) ≤0.35 (Elite) |
Return Loss (dB) | ≥60 | ≥20 |
Durability (dB) | ≤0.2 (500 times mating) | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | -20 ~ +70 | |
LC/SC/FC/ST/E2000 Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.3 | ≤0.3 |
Return Loss (dB) | ≥50 (PC/UPC), ≥60 (APC) | ≥20 (PC/UPC) |
Durability (dB) | ≤0.2 (500 times mating) | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | -20 ~ +70 |
MTP/MPO Connector Geometry Parameters
Item | X-axis | Y-axis | ||
Min | Max | Min | Max | |
Radius of Curvature (mm) | 500 | - | 50 | - |
Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
Fiber Height (nm) | 1000 ~ 3000 | |||
Max Fiber Height Error (nm) | 600 | |||
Adjacent Fiber Height Error (nm) | -300 ~ +300 | |||
Avg. Fiber Height Error (nm) | -300 ~ +300 | |||
Central Concave (nm) | 300 | |||
Interferometer view of MTP Connector | ![]() |
Fiber Specification
Fiber Type | Multimode | Single Mode | ||||
OM1 | OM2 | OM3 | OM4 | G.652 | G.657 | |
Core Diameter (um) | 62.5/125 | 50/125 | 50/125 | 50/125 | 9/125 | 9/125 |
Wavelengths (nm) | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 1310/1550 | 1310/1550 |
Max. Attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.36/0.25 | 0.36/0.25 |
Min. OFL Bandwidth (MHz·km) | 200/500 | 500/500 | 1500/500 | 3500/500 | - | - |
Min. Effective Modal Bandwidth (MHz·km) | - | 500 | 2000 | 4700 | - | - |
*The effective modal Bandwidth for multimode is 850nm.
Patch Cable Structure
Notes:
Fiber Core: 2, 4, 8, 12, 24
Cable Sheath Color:
Yellow – SM Fiber Cable (OS1OS2)
Orange – MM Fiber Cable 62.5/125 (0M1), 50/125 (OM2)
Aqua –MM Fiber Cable 50/125 (OM3)
Violet –MM Fiber Cable 50/125 (OM4)
Strength Member: Aramid yarn
Color Coating Fiber: (2 to 24) x φ250μm colored fiber, international standard color code (YD/T 901-2001), and 12 circular chromatography
Standard Cable Specifications
Fiber Count | Outer Diameter (mm) | Weight (kg/km) | Max. Tensile Force (N) | Min. Bending Radius (mm) | ||
Short term | Long term | Short term | Long term | |||
2 | 1.5 ± 0.10 | 3.0 | 80 | 40 | 20D | 10D |
4, 8, 12 | 3.0 ± 0.15 | 8.0 | 150 | 80 | 20D | 10D |
24 | 4.2 ± 0.3 | 31 | 300 | 160 | 20D | 10D |
Cable Length and Tolerances
Length and Tolerance Requirements | |
Length (m) | Tolerance (mm) |
L≤ 5 | ±50 |
5 < L ≤ 50 | ± 1% |
L>50 | ± 1000 |
Order Information
1. Connector End A (MPO/MTP):
Connector Brand: SENKO, US CONEC, etc.
Connector Loss: Standard Loss or Low Loss
Connector Type: MPO or MTP / PC or APC, Male or Female
2. Connector End B:
LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, E2000/UPC, E2000/APC, ST/UPC, etc.
3. Cable & Fanout/Leg Jacket:
LSZH, PVC, OFNR, OFNP, etc.
4. Cable & Fanout/Leg Diameter:
Cable Diameter: 0.9mm, 2.0mm, 3.0mm, 3.6mm, 4.5mm, 5.0mm & 5.5mm Round Cable, Bare Ribbon or Flat Ribbon Cable
Fanout/Leg Diameter: 2.0mm, 3.0mm Round Loose Tube
5. Fiber Count:
8, 12, 24, etc.
6. Fiber Type:
G.652D, G.657A2, OM1, OM2, OM3, OM4, OM5, etc.
7. Total Length:
1 to 999 meters
8. Fanout/Leg Length:
0.2 meters, 0.5 meters, etc.
9. Polarity:
Type A, Type B, Type C
Connector Brand, Connector Loss,
Connector End A - Connector End B,
Cable Jacket, Fiber Count, Fiber Type, Total Length,
Fanout/Leg Length,
Polarity
Example:
MTP Pre-terminated Harness Cables,
US CONEC Brand, Standard Loss,
MTP/PC Male to LC/UPC,
Aqua LSZH, 12 Cores, OM3, 10 meters,
Fanout 0.5 meters,
Type B
