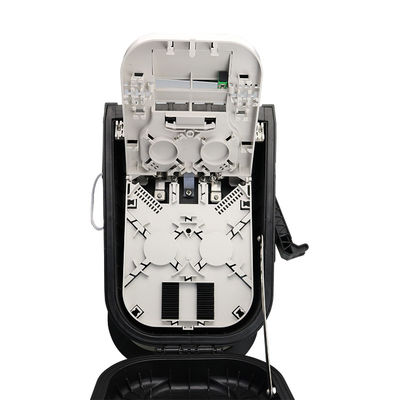

Outdoor IP65 ODF Fiber Optical Distribution Box
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001, |
| Model Number | FDB-WG-ADT-16L |
| Minimum Order Quantity | 1 pieces |
| Price | Negociate |
| Packaging Details | with standard carton box or can be OEM by clients |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 pieces per week |
Product Details
| Certification | ISO9001,RoHS | Material | PC+ABS |
|---|---|---|---|
| Application | FTTH FTTB FTTX Network |
Product Description
Outdoor IP65 ODF Fiber Optical Distribution Box
The equipment is used as a terminal point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box ,and meanwhile it provide solid protection and management for the FTTX net work building.
Fuction:
1.The box body is made of ABS+PC high quality engineering plastic material with excellent intensity.
2.With good waterproof design, the product can be applied indoor and outdoor for wall-mounted, pole-mounting and aerial hanging.
3.With safe shaped lock, the box can be opened and closed easily.
4.The splice tray is designed with flip page and double layer structure, which is easy to be installed and maintained.
5. Protection Level: IP55
6. The box should be with layout record label.
7.The angle of opening box is not less than 120°
KEY FEATURE:
1). Total enclosed structure, be in nice shape.
2). Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
2). Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
APPLICATION:
1)Optical fiber communication system.
2)Fiber optic CATV, FTTH fiber to the home.
3)Optical fiber access network
4)Testing instruments, fiber optical sensors
5)Fiber Optic patch panels, cabinet type or wall-mounted type fiber optic distribution units.
Specification:
| Product Name | TTH Waterproof outdoor ip 65 16 core fiber optical distribution box |
| Dimension (L*W*H) | 295*185*110mm |
| Installation | Wall/pole mounting(outdoor and indoor) |
| Working temperature | -40℃~ +75℃ |
| Relative humidity | ≤85% (+30℃) |
| Atmospheric pressure | 70KPa~106KPa |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
