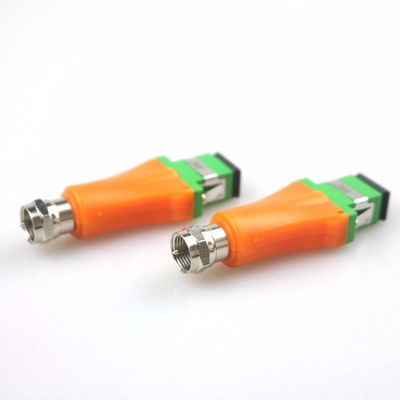

Male to female Passive Mini fiber Optical Node receiver
| Place of Origin | Shanghai |
|---|---|
| Brand Name | yogel |
| Certification | ISO9001 |
| Model Number | optical receiver node |
| Minimum Order Quantity | 1 pieces |
| Price | 1USD-5USD |
| Packaging Details | with standard carton box or can be OEM by clients |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 pieces per week |
Product Details
| Application | CATV | Product Name | Optical Receiver Node |
|---|---|---|---|
| Certification | ISO9001,RoHS |
Product Description
Male to female Passive Mini fiber Optical Node receiver
FTTH CATV optical receiver without power is a specialty product which is specially designed for FTTH-Fiber to the home network structure. Compact and reasonable internal circuit structure, the housing adopt dedicated aluminum alloy, wire drawing oxidation treatment the surface. The performance indicators are good and the appearance is high-grade and beautiful. This product has been popular in the international market, was welcomed by foreign customers.
| Technical Data | |
| Product name | CATV FTTH passive Mini optical receiver |
| Wavelength | 1100~1600nm&1550nm |
| Input optical power | 0dBm~-7dBm(Analogy Signal) & 0dB~-10dBm(Digital signal) |
| Return loss | >45dB |
| Optical connector | FC/APC&SC/APC FC/PC&SC/PC |
| Output port level | >68dBuV(0dBm test) |
| Bandwidth | 40~862MHz |
| Flatness | ±0.75dB@40~862 MHz & 1006MHz |
| CNR(note1) | ≥51dB |
| CTB(note1) | ≥65dB |
| Working temperature | -25℃ ~+ 45℃ |
| Output port | 1 |
| RF output impedance | 75Ω |
Note:
Under the fixed link loss, 550 MHz has 59 PAL-D channel analog TV signals. Among 550 MHz to 862 MHz, every 2 MHz band transfer the digital modulation signals. It is tested when the digital modulation signal level is 10 dB lower than analog modulation signal level and the optical receiver input optical power is -1 dB m. Test results will differ according to the different hybrid module. P ls refer to the user manual for details.
Feature:
1. High quality brushed aluminum case or plastic case
2. Digital signal input -10dBm, analog signal input -7dBm
3. Without power supply and consumption
4. SC/APC or FC/APC
5. Output level >68 dBuV (Pin=0 dB)
2. Digital signal input -10dBm, analog signal input -7dBm
3. Without power supply and consumption
4. SC/APC or FC/APC
5. Output level >68 dBuV (Pin=0 dB)
