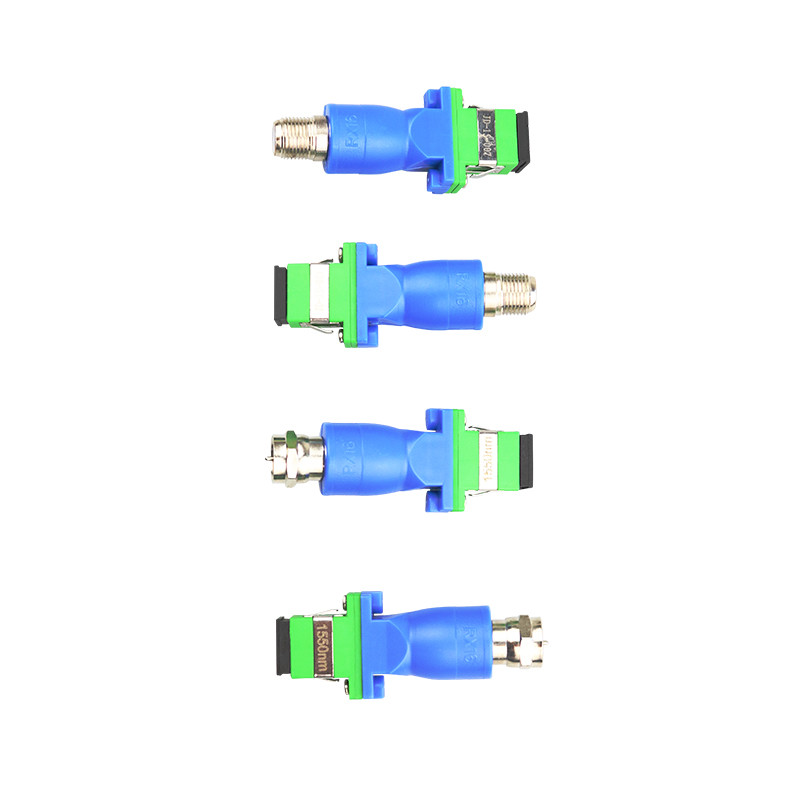

FTTH optical CATV 1550 nm receiver node mini passive fiber optic node

Place of Origin Shanghai
Brand Name yogel
Certification ISO9001,Rohs
Model Number Fiber Optic Node
Minimum Order Quantity 1 pieces
Price 2USD-10USD/ pieces
Packaging Details with standard carton box or can be OEM by clients
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 pieces per week
Product Details
Application CATV Product Name Fiber Optic Node
Certification ISO9001,RoHS
Leave a Message
Product Description

                             Catv FTTH Micro Node


CATV ftth micro node is specially designed for FTTB - Fiber to the building network structure.
Low consumption, high output level, small size, compact and reasonable internal circuit structure and excellent performance make it to be the first choice to build CATV FTTB network. Main used to fiber to building network to simple the network structure, reduce the cost and optimize the signal quality, passive type, no need power support.



Catv ftth micro node feature

1)High quality brushed aluminum case or plastic case.
2)Digital signal input -10dB, analog signal input -7dB.
3)Without power supply and consumption.
5)Output level> 68dBuv (pin=0dB).
6)Micro FTTH optical CATV 1550 nm receiver node mini passive fiber optic node



Technical Data catv ftth micro node
Wavelength 1100~1600nm&1550nm
Input optical power 0dBm~-7dBm(Analogy Signal) & 0dB~-10dBm(Digital signal)
Return loss >45dB
Optical connector FC/APC&SC/APC FC/PC&SC/PC
Bandwidth 40~862MHz
Flatness ±0.75dB@40~862 MHz & 1006MHz
RF output port level ≥16dB@40~550 MHz ≥14dB@550~862&1006MHz
Output port level >68dBuV(0dBm test)
CNR(note1) ≥51dB
CTB(note1) ≥65dB
CSO(note1) ≥62dB
Working temperature -25℃ ~+ 45℃
Output port 1
RF output impedance 75Ω
Size 65x22x10mm
