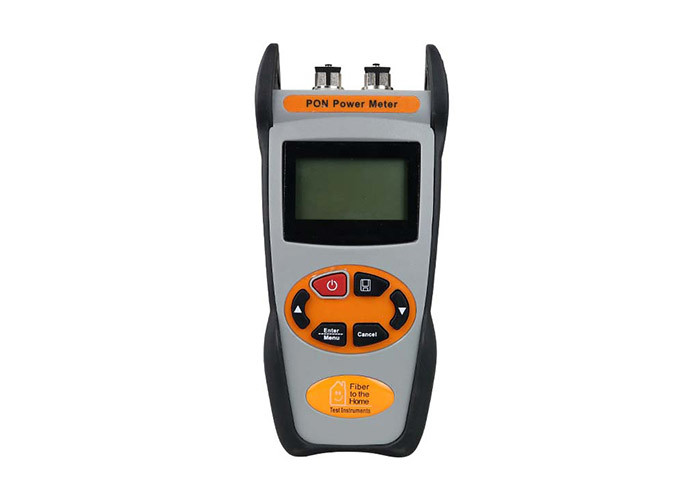

1310/1490/1550nm PON Optical Power Meter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | PON Power Meter | Application | FTTH FTTB FTTX Network |
|---|---|---|---|
| Type | Tester | Weight | 285g |
| Wavelength | 1310nm/1490mm/1550nm | Package | 1pcs/bag |
| Dimension | 200*90*50(mm) | Function | Install And Test |
| Highlight | 9/125um PON Optical Power Meter,1490mm PON Optical Power Meter,9/125um fiber optic power meter |
||
Product Description
1310nm/ 1490nm/1550nm PON Optical Power Meter For FTTx
Description
PON-OPM22 target at the FTTx application and maintenance. This PON power meter can be able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
Features
1, Providing simultaneous measurement at EPON/GPON/GEPON for all three wavelengths on the fiber (1490nm, 1550nm,1310nm)
2, Used in Burst mode measurement of 1310nm upstream
3, Convenience for threshold setting, which can set the threshold on the tester
4, USB communication port enables data transfer to a PC
5, Offers up to 10 different threshold sets in total
6, User self-calibration can be retrieved in computer through the software.
7, 10 minutes Auto-off function can be activated or deactivated with keypad operation.
Specifications
| Model | PON-OPM22 | ||
| 1310nm | 1490nm | 1550nm | |
| Pass Zone(nm) | 1260～1360 | 1470～1505 | 1535～1570 |
| Isolation (dB) | >40@1490 | >30@1310 | >40@1310 |
| Isolation(dB) | >40@1550 | >40@1559 | >40@1490 |
| Measurement Range(dBm) | -40～+10 | -40～+10 | -40～+20 |
| Measurement Accuracy | |||
| Connatural uncertainty(dB) | ±0.5 | ||
| Linearity(dB) | ±0.1 | ||
| Passing through insertion Loss(dB) | <1.5 | ||
| General Information | |||
| Detector Type | InGaAs | ||

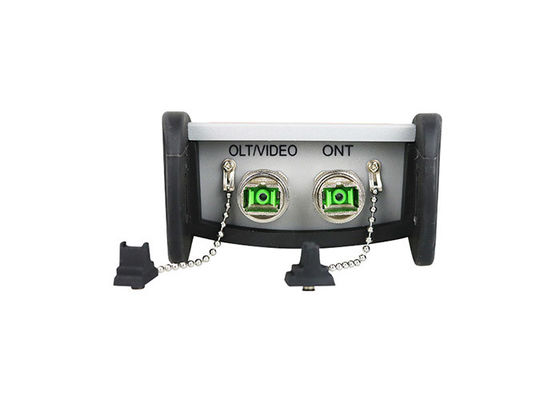

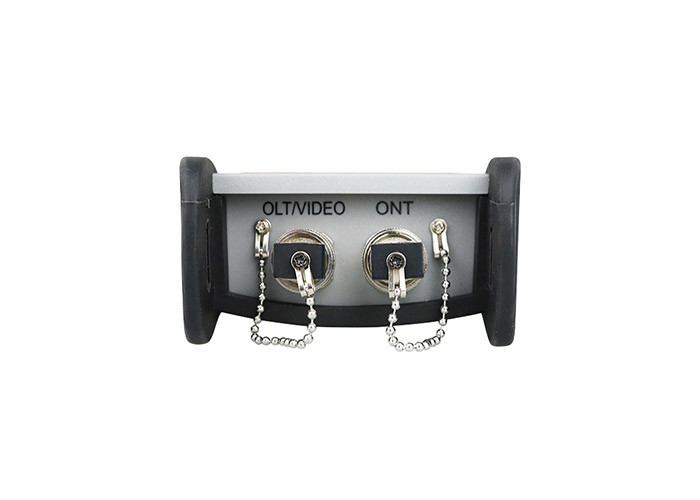

| Optical Connector | FC/SC Interchangeable | ||
| Fiber Type | 9/125um | ||
| Display | LCD:128*64 | ||
| Measurement Unit | dB/dBm/xW | ||
| Resolution (dB) | 0.01 | ||
| Power Supply | 3 AA1.5V battery | ||
| Operation Temperature (℃) | -10～60 | ||
| Storage temperature (℃) | -25～70 | ||
| Dimension(mm) | 200 X90 X50 | ||
| Weight(g) | 285 | ||
Packing & Delivery
Package Details : Carrying bag+outer carton,or customized request
Delivery Detail : 3-7 days after deposit
Applications
➢Maintenance in Telecom
➢Maintenance in CATV
➢Fiber Optic Lab Testing
➢Other Fiber Optic Measurements
