2.488Gbps Downstream 1GE+CATV GPON ONU ONT

Place of Origin Shanghai China
Brand Name Yogel or OEM
Certification ISO9000
Model Number GPON ONU 1GE+CATV
Minimum Order Quantity 1
Price Negotiate
Packaging Details 20 pieces /carton box
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 10000 pcs/ month
Product Details
Product Name GPON ONU ONT 1GE+CATV English Firmware Fiber Optic Onu Ont Pon Modem Working With ZTE PON Port 1 GPON Optical Interface:SC/UPC
Rate Upstream:1.244Gbps Downstream:2.488Gbps Wavelength Tx 1310nm, Rx 1490nm
LAN 1*10/100/1000Mbps Wireless IEEE802.11b/g/n, 300Mbps, 2T2R, 2 External
RF 1 CATV F-Type Connector Power External DC 12V/1A Power Supply Adapter
High Light

1GE CATV GPON ONU ONT

,

2.488Gbps downstream GPON ONU

,

2.488Gbps downstream onu network device

Leave a Message
Product Description

GPON ONU ONT 1GE+CATV English firmware fiber optic onu ont pon modem working with ZTE


1. Overview

1GE+CATV type ONT products fully comply with ITU-T G.984 GPON standards.. It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

2. Features
◼ Single-fiber access, providing Data, CATV and other services
◼ Dual mode, full compatible with ITU-T G.984 or IEEE 802.3ah
◼ Support Web for local management
◼ Support Auto-negotiation and MDI/MDIX
◼ Support the Ethernet interface rate, working mode and flows control
◼ Support loopback at UNI
◼ Support packet filtering and anti-illegal message attack protection
◼ Support performance statistics of Ethernet lines
◼ Support DHCP Option60 reporting the location information of the Ethernet
interface



3. Hardware Parameter
ItemParameters

Specification







PON

PON Port1 GPON Optical Interface:SC/UPC
Rate

Upstream:1.244Gbps

downstream:2.488Gbps

TypeBOSA
WavelengthTx 1310nm, Rx 1490nm

Optical Output

Power



+0.5~+5dBm

Sensitivity-28dBm
Overload-8dBm





UNI



LAN

1*10/100/1000Mbps or

1*10/100/1000Mbps and 3*10/100Mbps Full / Half-Duplex, RJ45, Auto-MDI/MDI-X



Wireless

IEEE802.11b/g/n, 300Mbps,

2T2R, 2 External





Environmental Specifications

ShellPlastic casing
PowerExternal DC 12V/1A power supply adapte

Power

consumption

1GE+1FE+WIFI:<5W

2GE+WIFI: <6W

Dimensions172mm(L)*130mm(W)*30mm(H)
Weight0.3kg



4. Functions

GPON Feature

Compliant with ITU-T G.984 GPON standard
FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report
802.1p mapper for upstream
QoS scheduling based on SP or WRR between GEM port and T- CONT

Gateway Feature

WAN support Router and Bridge mode Router mode supports PPPoE/DHCP/ static IP WAN support Internet,IPTV,TR069
LAN supports DHCP and static IP Support NAT and NAPT Support UPnP

OAM Feature
Standard OMCI compliant with ITU-T G.988
Compliant with TR-069 standard
Compliant with TR-098,TR-140
Remote software upgrade through
EPON OAM Feature
CTC 3.0 standard of China Telecom
Remote software upgrading through OAM

CATV Feature


Item                                                        Parameter
Wavelength                                            1550nm
Optical return loss                                 >45dB
Input optical power                               -18dBm~0dBm
RF output frequency                             47MHz~1000MHz
RF output level                                     78dBuV (@-12~-2dBm@85MHz)
CNR                                                      >41dB (@-10dBm@DS22 Channel)
CSO                                                      >60dBc (@-10dBm@DS22 Channel)
CTB                                                      >60dBc (@-10dBm@DS22 Channel)
Flatness                                                ±1dB
RF output return loss                           >16dB
RF impedance                                      75Ω
AGC function                                        Support

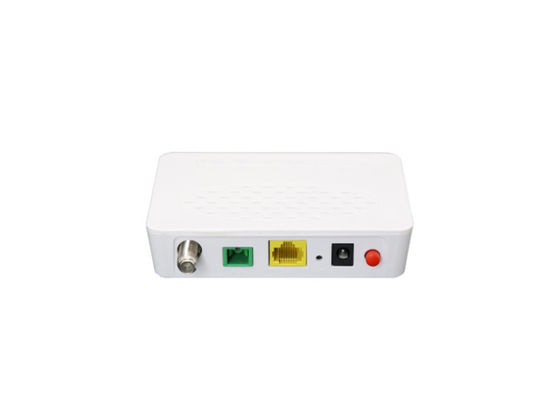

2.488Gbps Downstream 1GE+CATV GPON ONU ONT 0
