FTTH Network CL-7 0.25mm High Precision Fiber Cleaver

Place of Origin China
Brand Name Yogel
Certification ISO9000 ,ROHS,CE
Model Number CL-7
Minimum Order Quantity 1Piece
Price Negotiation
Packaging Details 1pcs + bag +carton
Delivery Time 3-7 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 PCS Per Month
Product Details
Product Name Fiber Optic Cleaver Application FTTH FTTX Network
Weight 280g Dimensions 63mm (W) × 56mm (D) × 56mm (H)
Cleave Angle ≤0.5° Coating Diameter 0.25&0.9mm
High Light

0.25mm High Precision Fiber Cleaver


CL-7 High Precision Fiber Cleaver


0.25mm ftth cleaver

Leave a Message
Product Description

FTTH Network Tool Kits CL-7 Portable Fiber Optical Cleaver Optical Cutter




It is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology.It adopts advanced PAS Fiber adjustment technology. Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume, the lightest weight, the most fast splicing speed.

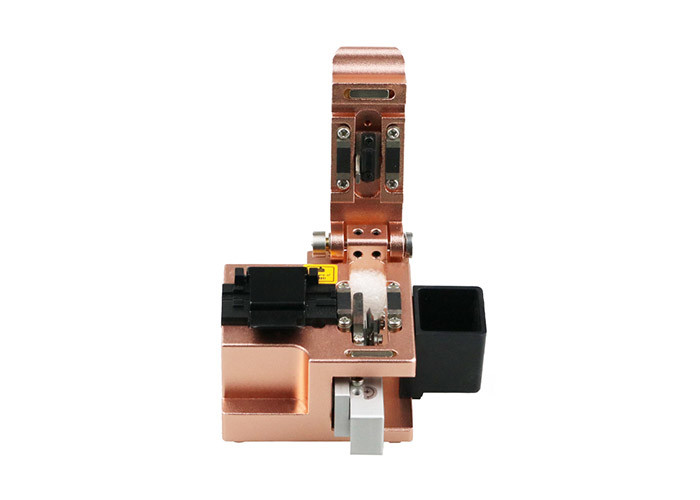

FTTH Network CL-7 0.25mm High Precision Fiber Cleaver 0FTTH Network CL-7 0.25mm High Precision Fiber Cleaver 1


Features :


* Compact design;

* High reliability;

* Superior cleaving performance;

* Special hexagonal wrench placement design;

* 48,000 times cleave per blade;

* Very light.

* Black color


Instructions fiber cleaver:


1. Use Please read these instructions carefully before;

2 .cleaver knife is precision machinery, can not withstand strong impact, so as not to affect the cutter performance

3.Optical fiber and optical fiber debris is very slim, and the tip of a sharp, use strictly prevent fiber debris from entering the skin, eyes, optical fiber debris with special container collection

4. Do not directly touch the blade, maintenance, do not touch the blade;

5. Do not split the cutter or to its oil needs repair, please contact the manufacturers service department


perating Method:


1, large platen opening and closing lever lift open large platen fixture cover the blade slider pushed to the front side of device, waste fiber recycling the superstructure will automatically open;

2, with the stripped fiber clamp stripped fiber coating reserved for bare fiber length 35-45 mm, moistened with alcohol cotton wool or tissue paper wrap optical fiber, fiber clean. Wiping with cotton wool or tissue, do not use the same cotton wool or tissue paper to rub the second (Note: Please purity greater than 99% alcohol);

3, visual to the edge of the fiber coating layer is aligned with the cutter on the ruler (10-16 cm) appropriate scale, left the optical fiber into the fiber guide grooves require a bare fiber placed straight on the optical fiber pressure pad to determine the end of the fiber can be touched recycle the rollers;

4 Close the fixture cover platen, to promote the device blade slider, the blade dicing the lower surface of the optical fiber, and is free to slide to the other side, cut off the fiber;

5, left hand held onto the cutter right hand to open the large platen waste fiber will automatically be placed in the waste fiber collection box,;

6, With the left hand and hold the optical fiber while his right hand to open the fixture cover, carefully remove the fiber cut end face: the neat fiber cross-section not to touch and it is matter

7, Troubleshooting, cutting bad reasons may be:

1), fiber is not straight on the fiber-optic pressure pad;
2), the blade height is too high;
3), blade, sanding pad dust and other foreign matter




Model CL-7
Cleave Angle ≤0.5°

Cleave Length

0.25mm fiber:9~16mm
0.9mm fiber:10~16mm
Fiber Diameter 125μm
Coating Diameter 0.25&0.9mm
Size 63W×56D×56H (mm)
Weight 280g
Blade Life Time Around 48000 fibers
Blade Point 24 point
Scrap Collector Bin Yes
OEM Service Yes




1,Fiber Optical Communication Systems

2,Optical Fiber CATV

3,Passive Optical Network (PON)

4,Fiber Optic Amplifiers

5,Fiber Optic Access Networks/LAN

6,Monitoring Systems

7,Optical Fiber Sensor
