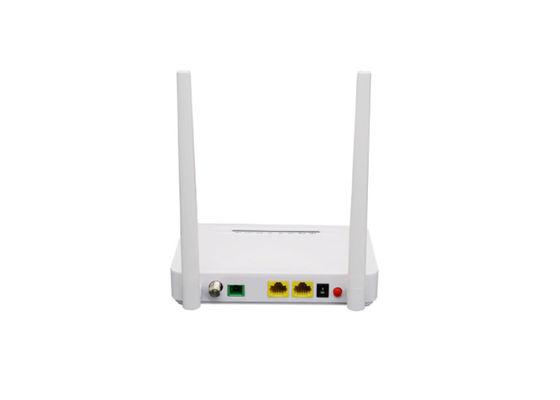

English Version Tx 1310nm Catv 2 Port Gpon FTTH ONU

Place of Origin Shanghai China
Brand Name Yogel or OEM
Certification ISO9000
Model Number GPON ONU 1GE+1FE+WIFI+CATV
Minimum Order Quantity 1
Price Negotiate
Packaging Details 20 pieces /carton box
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 10000 pcs/ month
Product Details
Product Name Gpon Onu Catv 2 Port Wtih Catv Gepon Xpon English Version Optical Network Unit WIFI Router FTTH Ont Family Gpon Onu Cat PON Port 1 GPON Optical Interface:SC/UPC
Rate Upstream:1.244Gbps Downstream:2.488Gbps Type BOSA
Wavelength Tx 1310nm, Rx 1490nm Optical Output Power +0.5~+5dBm
Sensitivity -28dBm Overload -8dBm
LAN 2*10/100/1000Mbps Wireless IEEE802.11b/g/n, 300Mbps, 2T2R, 2 External
High Light

Catv 2 Port Gpon FTTH ONU

,

Tx 1310nm FTTH ONU

,

Tx 1310nm onu optical network unit

Leave a Message
Product Description

Gpon Onu Catv 2 port wtih catv Gepon Xpon English Version Optical Network Unit WIFI Router FTTH Ont Family Gpon Onu Cat


1. Overview
The G /EPON ONU series designed and produced by our company,including Data, Data+WIFI, Data+CATV,
Data+WIFI+CATV type of ONU. GPON ONU 1GE is a pure data GPON terminal product with high reliability, high quality, easy
management, flexible upgrade and expansion, the equipment's functions and performance indicators are in line with

the ITU-T G.984 standard

2. Features
◼ Full compatible with ITU-T G.984
◼ Support the Ethernet interface rate, working mode and flows control
◼ Support packet filtering and anti-illegal message attack protection

◼ Support VLAN tagged label processing, traffic classification etc.
◼ Support IGMP Snooping
◼ Compliant with 802.11 b/g/n wireless standard protocol

◼ Support OAM and TR069 for remote management
◼ Fully compatible with Huawei, Fiberhome, and ZTE OLT

3. Hardware Parameter
ItemParameters

Specification







PON

PON Port1 GPON Optical Interface:SC/UPC
Rate

Upstream:1.244Gbps

downstream:2.488Gbps

TypeBOSA
WavelengthTx 1310nm, Rx 1490nm

Optical Output

Power



+0.5~+5dBm

Sensitivity-28dBm
Overload-8dBm





UNI



LAN

2*10/100/1000Mbps or

1*10/100/1000Mbps and 1*10/100Mbps Full / Half-Duplex, RJ45, Auto-MDI/MDI-X



Wireless

IEEE802.11b/g/n, 300Mbps,

2T2R, 2 External





Environmental Specifications

ShellPlastic casing
PowerExternal DC 12V/1A power supply adapte

Power

consumption

1GE+1FE+WIFI:<5W

2GE+WIFI: <6W

Dimensions172mm(L)*130mm(W)*30mm(H)
Weight0.3kg



4. Functions

GPON Feature

Compliant with ITU-T G.984 GPON standard
FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report
802.1p mapper for upstream
QoS scheduling based on SP or WRR between GEM port and T- CONT
Downstream multicast GEM port and broadcast GEM port

Gateway Feature

WAN support Router and Bridge mode Router mode supports PPPoE/DHCP/ static IP WAN support Internet,IPTV,TR069
LAN supports DHCP and static IP Support NAT and NAPT
Support UPnP

CATV Feature


Item                                                        Parameter
Wavelength                                            1550nm
Optical return loss                                 >45dB
Input optical power                               -18dBm~0dBm
RF output frequency                             47MHz~1000MHz
RF output level                                     78dBuV (@-12~-2dBm@85MHz)
CNR                                                      >41dB (@-10dBm@DS22 Channel)
CSO                                                      >60dBc (@-10dBm@DS22 Channel)
CTB                                                      >60dBc (@-10dBm@DS22 Channel)
Flatness                                                ±1dB
RF output return loss                           >16dB
RF impedance                                      75Ω
AGC function                                        Support
