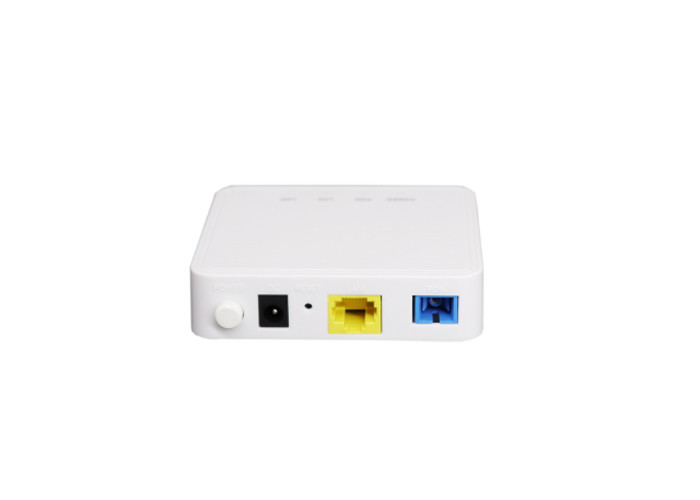

Tx 1310nm Rx 1490nm 1.25g 1Ge Gpon ONU Device
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | Yogel or OEM |
| Certification | ISO9000 |
| Model Number | GPON ONU 1GE |
| Minimum Order Quantity | 1 |
| Price | Negotiate |
| Packaging Details | 20 pieces /carton box |
| Delivery Time | 3-5 days after despoit |
| Payment Terms | Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 10000 pcs/ month |
Product Details
| Product Name | Good Price 1Ge Gpon Onu 1.25g 1port Epon Gpon Gepon Olt Ont Compatible Fiberhome ZTE Huawei | PON Port | 1 GPON Optical Interface：SC/UPC |
|---|---|---|---|
| Rate | Upstream：1.244Gbps Downstream：2.488Gbps | Type | BOSA |
| Wavelength | Tx 1310nm, Rx 1490nm | Optical Output Power | +0.5~+5dBm |
| High Light | 1.25g 1Ge Gpon ONU Device,Rx 1490nm Gpon ONU Device,Tx 1310nm Gpon ONU Device |
||
Product Description
Good price 1Ge Gpon onu 1.25g 1port epon gpon gepon olt ont compatible fiberhome ZTE Huawei
1. Overview
The EPON ONU series designed and produced by our company,including Data, Data+WIFI, Data+CATV,
Data+WIFI+CATV type of ONU. GPON ONU 1GE is a pure data GPON terminal product with high reliability, high quality, easy
management, flexible upgrade and expansion, the equipment's functions and performance indicators are in line with
the ITU-T G.984 standard
2. Features
◼ Full compatible with ITU-T G.984
◼ Support Web for local management
◼ Support Auto-negotiation and MDI/MDIX
◼ Support the Ethernet interface rate, working mode and flows control
◼ Support loopback at UNI
◼ Support packet filtering and anti-illegal message attack protection
3. Hardware Parameter
| Item | Parameters | Specification |
|
PON |
PON Port | 1 GPON Optical Interface:SC/UPC |
| Rate |
Upstream:1.244Gbps downstream:2.488Gbps |
|
| Type | BOSA | |
| Wavelength | Tx 1310nm, Rx 1490nm | |
|
Optical Output Power |
+0.5~+5dBm |
|
| Sensitivity | -28dBm | |
| Overload | -8dBm | |
|
UNI |
LAN |
1*10/100/1000Mbps Full / Half-Duplex, RJ45, Auto-MDI/MDI-X |
|
Environmental Specifications |
Shell | Plastic casing |
| Power | External DC 12V/0.5A power supply adapte | |
|
Power consumption |
<3W |
|
| Dimensions | 90mm(L)*80mm(W)*25mm(H) | |
| Weight | <0.2kg | |
|
Environment |
Operating Temperature:0～50℃ Storage Temperature:-40～85℃ Operating Humidity:10%～90% |
4. Functions
Compliant with ITU-T G.984 GPON standard
FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report
802.1p mapper for upstream
QoS scheduling based on SP or WRR between GEM port and T- CONT
Downstream multicast GEM port and broadcast GEM port
