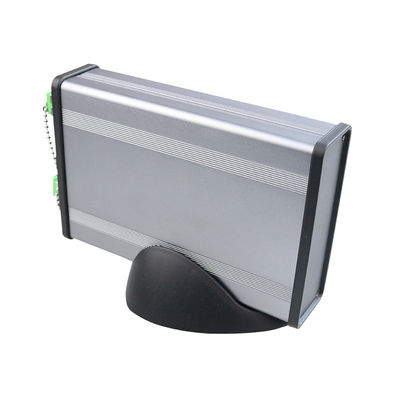

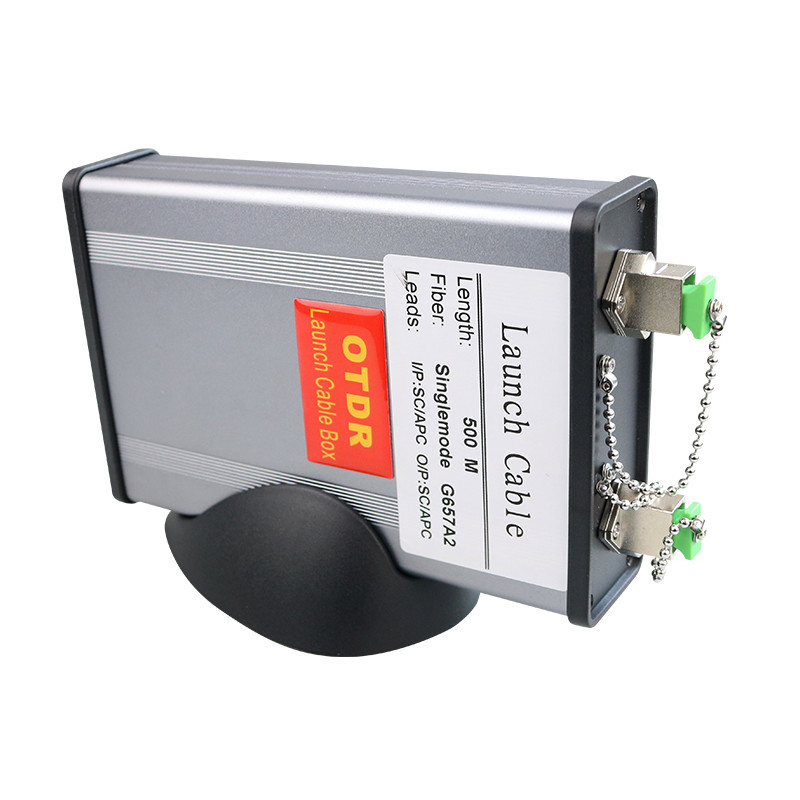

Aluminium 500m OTDR Launch Cable Box SC/APC-SC/APC
|Product Name||OTDR Launch Cable Box||Item No.||LCB-AG3-ASC-ASC-0500|
|Meter||500m Or Customerized||Dimension||9.6CMx3.3CM X 14CM|
|Weight||0.35kg Without Fiber||Color||Metal|
500m OTDR Launch Cable Box,
Aluminium OTDR Launch Cable Box,
SC/APC-SC/APC OTDR Launch Cable Box
LCB-AG3-ASC-ASC-0500 OTDR Launch Cable Box Aluminium SC/APC-SC/APC 500 meters
OTDR Launch Cables are designed to be used in conjunction with an OTDR to measure complete link loss of a fiber. They help minimize the effects of the OTDR's launch pulse on measurement uncertainty. They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings.
- An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.
- A receive cable, which is connected to the far-end of the link, exposes the insertion loss and reflectance of the far-end connection.
- A fiber ring serves as both a launch cable and a receive cable.
It is recommended that the OTDR launch cable be longer than the dead zone. The shorter 150 meters lengths are ideal for premises fiber network test applications. We also carry single mode OTDR launch cables of 500 meters and 1000 meters for broadband, long-haul fiber network test applications. Launch cables are offered in a variety of connector styles including SC, ST, LC, FC and MTRJ.
Available in different configurations and fiber lengths.
* Standard boxes along with custom configurations for OTDR applications.
* Compact and rugged packaging.
* Portable for field use.
* Prevents fiber damage and ensures accurate results.
* Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Complied with or exceeds Standard
* ITU-T G.652D, G.657A2
* ITU-T G651.1 OM1 OM2 OM3 OM4
* Type A1a.1/A1b OM1/OM2
* type A1a.2 OM3, type A1a.3 OM4
* Use as OTDR launch/receive cable.
* Test link loss with an OTDR.
* Measure insertion loss and reflectance of near/far end connector.
* Pulse suppressor for the first reflection at the beginning of a fiber.
|Mechanical & Environmental Characteristics|
|Dimension||9.6CMx3.3CM x 14CM|
|Weight||0.35kg without fiber|
|Packaging||Rugged, hard-shell transit case|
|Fiber & Connector Characteristics|
|Fiber Types||G.652D, G.657A2, OM1, OM2, OM3, OM4|
|Fiber Length (m)||100 up to1000 (max)|
|Typical Loss||<0.5dB @ 1310 for 1000 meters|
|Polish||PC, UPC, APC|
|Return Loss*||UPC≥50dB, APC≥60dB, PC≥35dB|
|Repeatability (dB)||≤0.2 (1000 times)|
|A for Input connector;||B for Output connector;|
|C for Fiber Mode;||D for Length;|
|For Example: OTDR-LCB-ASC-AFC-SM-1KM; 1KM SM, SC/APC on I/P lead, FC/APC on O/P lead|
