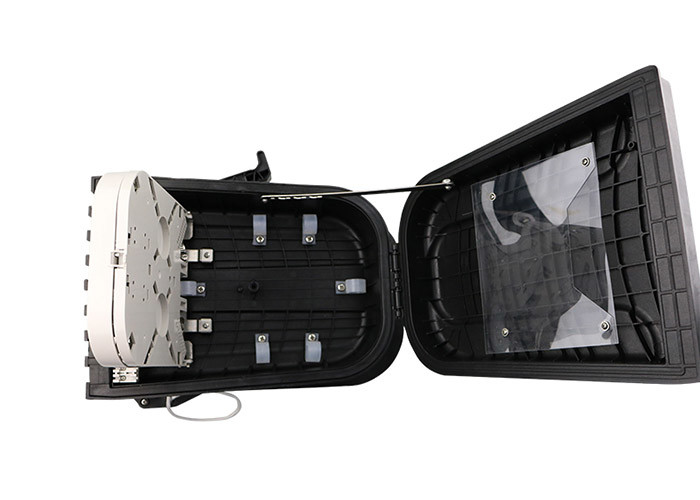

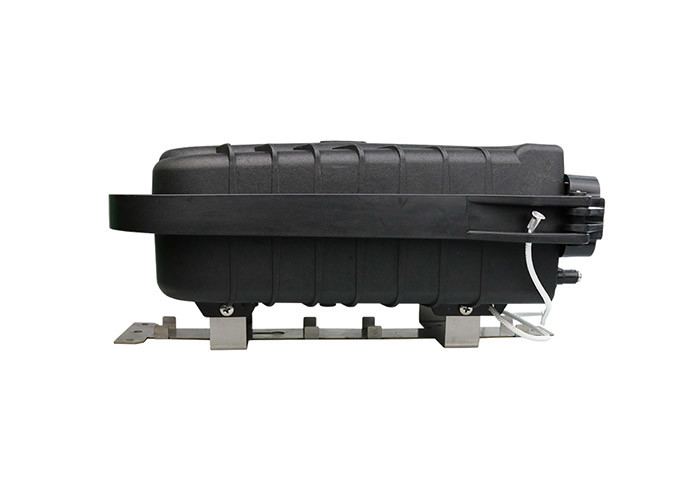

FTTH 2.1KG 16fibers Fiber Outdoor Enclosure
Product Details
| Product Name | Fiber Optic Distribution Closure | Use | FTTH |
|---|---|---|---|
| Installation | Wall/Pole Mounting | Color | Black |
| Material | PC ABS | Product Weight | 2.1KG |
| Capacity | 16fibers | With Adapter | Adapter |
| High Light | 16fibers fiber outdoor enclosure,2.1KG fiber outdoor enclosure,16fibers optical fiber joint closure |
||
Product Description
Wall or Pole Mount FTTH 16 Core Optical Fiber Optic Cable Splice Termination Distribution Box
Description:
Fiber Splitter Box provides a high density wall mounted or pole solution for next generation networks, which aims to provide and manage fiber splitters in a limited space in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Product Show:
Feature:
1. Water-proof design with IP65 Protection level
2. Manage fibers in a reasonable fiber radius condition
3. Fiber bend radius control more than 40mm
4. 1*16 micro type Splitter can be installed
5. Suitable for the fusion splice
6. Easy to maintain and extend the capacity
Application:
•Widely used in FTTH access network.
•Telecommunication Networks
•CATV Networks
•Data communications Networks
•Local Area Networks
Specification:
|
Model No.
|
FDC-ADT-16B
|
|
Installation
|
Wall/Pole mounting (Outdoor&Indoor)
|
|
Cable Entries
|
Supporting Uncut Mid-span
|
|
Max.Cable Diameter
|
Max.Input=20mm,Max.Output =5mm
|
|
Configuration
|
16pcs SC or 16pcs Duplex LC adapter &2 pcs 1*8mini PLC Splitter
|
|
Packing Information
|
GW: 21KG QTY: 10PCS MEAS :660*520*750MM
|
|
Dimension(L*W*H)
|
220*140*55MM
|
Detail Show:
Configuration:
|
Material |
Size |
Max Capacity |
Into the largest cable diameter(mm) |
Cable outlet size(mm) |
Color |
|
PP/GF |
(H*W*D)mm 316*250*126 |
PLC 1*16 |
5-16 |
2*3 |
Black |
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Offer free sample for testing
3. Reply inquiry within 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve solution for you.
