CATV 2inlet 8outlet Fiber Optic Termination Box

Place of Origin Shanghai
Brand Name Yogel/OEM
Certification ISO9000
Model Number FDMS-WS/ADT-8ZT
Minimum Order Quantity 1Piece
Price Negotiate
Packaging Details 50 pieces /Carton
Delivery Time 3-7 work days after despoit
Payment Terms L/C, T/T, Western Union
Supply Ability 10000pcs /Month
Product Details
Product Name Fiber Distribution Box Cable Ports 2inlet 8outlet
Use FTTH Installation Wall Mounting
Color Gray PLC Splitter 1x2,1x4,1x8 Mini Splitter
Max. Adapter 8pcs SC Simplex Without Flange Cable Dimeter In:10mm Out: 5mm
High Light

2inlet 8outlet Fiber Optic Termination Box

,

CATV Fiber Optic Termination Box

,

2inlet 8outlet optical termination box

Leave a Message
Product Description

Fiber Optic Box Manufacturing Outdoor 8 Cores Gray Optical Terminal Access Box



Introduction:

8 cores FTTH fiber terminal cable access box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.



The entry 2ports can use multi-fibre cable maximum diameter 12mm. The output ports 8pcs



Meanwhile, the unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.



Product Show:

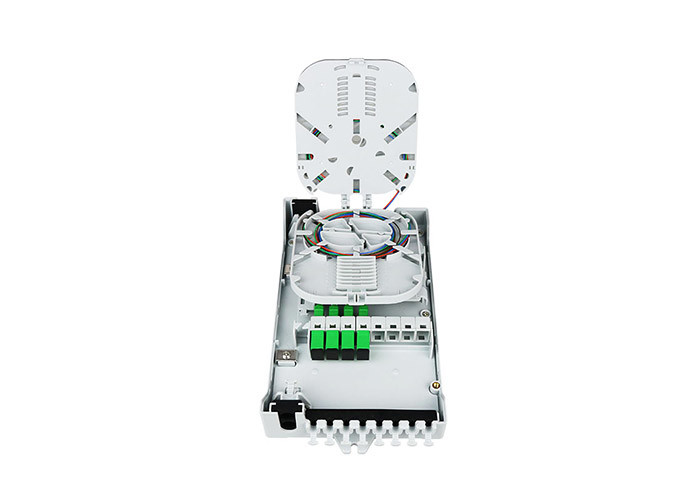

CATV 2inlet 8outlet Fiber Optic Termination Box 0CATV 2inlet 8outlet Fiber Optic Termination Box 1





Feature:

• Water-proof design with IP65 Protection level

• Integrated with splice cassette and cable management system

• Manage fibers in a reasonable fiber radius condition

• Easy to maintain and extend the capacity

• Fiber bend radius control more than 40mm

• Suitable for the fusion splice or mechanical splice

• 8 ports cable entrance for FTTH drop cable





Application:



•Widely used in FTTH access network.

•Telecommunication Networks

•CATV Networks

•Data communications Networks

•Local Area Networks





Specification:

Product name Fiber Optic Terminal Box
Color Gray
Model FDMS-WS/ADT-8ZT
Cable Ports 2inlet 8outlet
Cable diameter In:10mm out: 5mm
Installation Wall mount
Max. Fusion 16 fibers
Material ABS+PC
PLC Splitter 1x2,1x4,1x8 mini splitter
Max. Adapter 8pcs SC simplex without flange


Our Service:



1. OEM Manufacturing welcome: Product, Package...
2. Offer free sample for testing
3. Reply inquiry within 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer
the solve solution for you.
