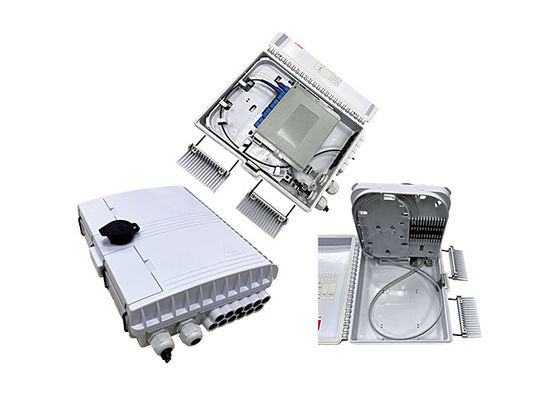

12 Core FAT NAP 18mm Input Fiber Optic Termination Box
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | Yogel or OEM |
| Certification | ISO9000 ,ROHS,CE |
| Model Number | FDB-LGX-12B |
| Minimum Order Quantity | 10 |
| Price | Negotiate |
| Packaging Details | 20 piece/carton box |
| Delivery Time | 3-5 days after despoit |
| Payment Terms | Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 5000 pcs/ month |
Product Details
| Product Name | High Quality Fiber Optic 12 Port Waterproof Distribution Box FTTH Terminal Box 12 Core FAT NAP | Dimension(LxWxH) | 250*200*72mm |
|---|---|---|---|
| Installation | Wall/Pole Mounting(Outdoor & Indoor) | Cable Entries | Supporting Uncut Mid-span |
| Max. Cable Diameter | Max. Input = φ18mm, Max. Output = 3.0*2.0 Drop Cable | Configuration | 1pcs 1x8 LGX Type PLC Splitter |
| High Light | FAT NAP Fiber Optic Termination Box,18mm Input Fiber Optic Termination Box,18mm 12 port fiber termination box |
||
Product Description
High quality fiber optic 12 port waterproof distribution box FTTH terminal box 12 core FAT NAP
Description
FDB-WS-12B fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the
feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,
storage and cable connection in one solid protection box
Features
*Easy to maintain and extend the capacity.
*Fiber bend radius control more than 40mm.
*Suitable for the fusion splice or mechanical splice.
*1*8 Splitter can be installed as an option.
*Efficient cable management.
*12 ports cable entrance for drop cable.
*Integrated with splice cassette and cable management rods.
Configuartion
Datasheet
| Dimension(LxWxH)mm | 250X200X72mm |
| Fiber Count | 12Cores |
| Installation |
Wall mounting(outdoorindoor), Pole Mounting |
| Level of Protection | IP65 |
| Cable Entries | Supporting Uncut |
| Max Cable Diameter | Max Input =φ15mm, Max output =2x3mm |
| Configuration |
12pcs SC adapter and 12pcs Double LC and 1 pcs 1*8 Blockless PLC |
|
Packing Information (For Reference Only) |
GW:21.2Kg QTY:20PCS MEAS:500X450X400mm |
