0.5 Degrees 20mm 12 Surface Optical Fiber Cutting Blade

Place of Origin Shanghai
Brand Name OEM
Certification ISO9000 ,ROHS,CE
Model Number OEM
Minimum Order Quantity 1Piece
Price Negotiate
Packaging Details 1 piece /box
Delivery Time 3-7 work days after despoit
Payment Terms L/C, T/T, Western Union
Supply Ability 10000pcs /Month
Product Details
Product Name Fiber Optic Cleaver Blade Rotating Knife Faces 12 Surface
Material Metal The Service Life About 48,000 Cores
Diameter 20mm Cutting Angle 0.5 Degrees
High Light

12 Surface fiber cutting blade


20mm fiber cutting blade


0.5 degrees fiber cutting blade

Leave a Message
Product Description

High Precision 12 Surface Optical Fiber cutting blade/ Fiber Cleaver Blade/Cutting Wheel




1.Can meet the heat-fusible fiber a multi-purpose cutters.

2.products using high-strength blade surface 16 points, longer life, comes with triple fixtures can be incision line, pigtails and bare fiber.

3.Automatic knife back,automatic back knife slides.

4.just put away the cover and push in the fiber cover to complete all the cutting work.

5.Applicable Fiber:250μm fiber cable, 900μm fiber cable, 12-fibre ribbon, and fiber jumper cable.



Quality material &process:

Made of 93 ultra-fine grain tungsten steel imported from Germany, made by radial sharpening process, high hardness, good wear resistance and good toughness

In the case of the same material and the same hardness, the blade life of the radial sharpening process is twice that of the ring sharpening process and the accuracy is higher.




1.the cutting Angle stability

2.the cutting life extension

3.the blade replacement is convenient cutting normal at low temperature




Name optical fiber cutter blade
Cutting face 12 surface
Diameter 20mm
Thickness 3mm
Material 90A steel
Blade 60 degrees
Blade life 20000 times
Cutting angle 0.5 degrees (single core optical fiber)


Fiber cutting process:

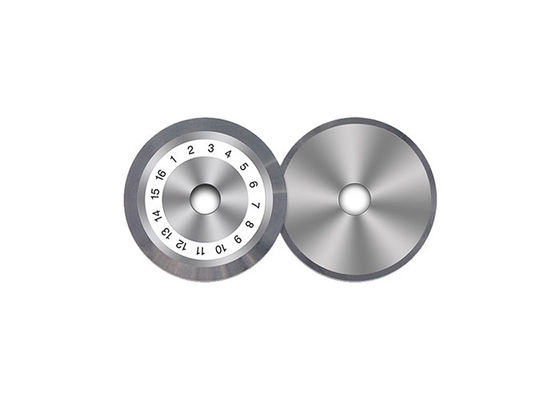

                   Front view                                                       Side view

0.5 Degrees 20mm 12 Surface Optical Fiber Cutting Blade 00.5 Degrees 20mm 12 Surface Optical Fiber Cutting Blade 1



0.5 Degrees 20mm 12 Surface Optical Fiber Cutting Blade 20.5 Degrees 20mm 12 Surface Optical Fiber Cutting Blade 3




Lutting knife blade method of replacement:

(1) the cutting knite overall tilt 45 degrees, loosen the tool slide surface Blade screw (some cutting knife need to remoye fixed the scraw of the middle).

(2)tilting blade,take out the blade,then place the new blade carefully Into the position.when loading the new blade,pay attention to not touch the knife placing new blade , make the position of the cutting blade into the number " I " , so that in arder to use each of the blade Good cutting point ), fixed and lock screw.
