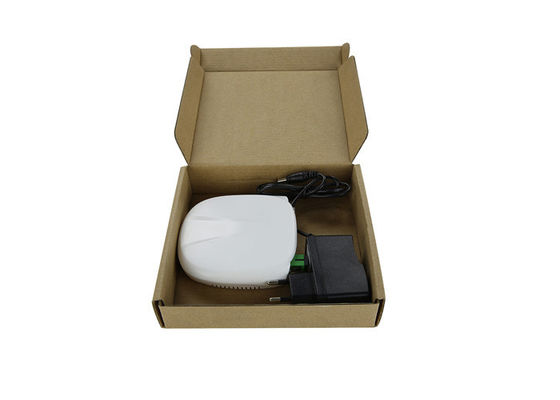

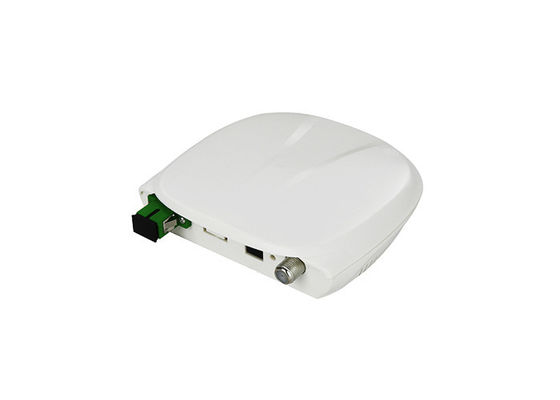

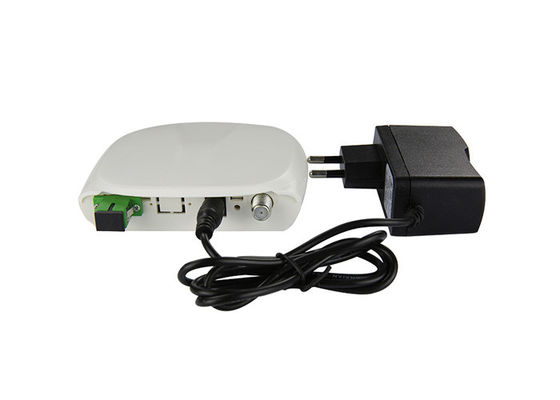

82dBuV CATV Optical Node With 1550nm Filter

Place of Origin Shanghai
Brand Name Yogel
Certification ISO9001
Model Number YG-AHN02-1F5
Minimum Order Quantity 1
Packaging Details Carton
Delivery Time 3-7days
Payment Terms L/C, T/T, Western Union
Product Details
Product Name Fiber Optic Node Item Number YG-AHN02-1F5
Power Supply 220V, 110V& EURO, USA, CHN Standard Etc. (optional) Wavelength 1550nm
Optical Connector SC/APC RF Connector Inch Screw Thread(British System) Or Metric System (optional)
Digital Signal Input• • -18dBm Analog Signal Input •-10dBm (Recommendation)
Output Level 82dBuV. (AGC Range -9~0dBm)
High Light

CATV Optical Node with 1550nm Filter

,

82dBuV CATV Optical Node

,

82dBuV power ftth node

Leave a Message
Product Description

Description



FTTH type optical receiver is a home-based optical receiver, catering to the ultimate goal of development of optical access for FTTH (FTTH) network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications slightly different.



FTTH type optical receiver OR19C with AGC, plug-in photocell. OR19W with WDM and AGC.



Feature



* Brushed aluminum shell with good heat dispersion.

* Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach -22dBm, and -10dBm for analog signal.

* AGC control range can be customized.

* Low consumption design and total consumption ≤4w, high reliable switching power supply with optical inspection circuit.

* SC/APC or FC/APC optical connector.

* Anti-high-frequency surge device to protect the GaAs amplifier tube.

* Multi-stage lightning protection devices (TVS transient suppression diodes), lightning protection system closely to ensure the safe operation of equipment.

* Realize the 8 v input port feeding way of power supply.



Technical parameter



Technical Data OR19
Wavelength 1100~1600nm&1550nm
Optical input power 0dBm~-10dBm(analog) 0dBm~-22dBm(digital)
Return loss >45dB
Optical connector FC/APC&SC/APC FC/PC&SC/PC
Bandwidth 40~862&1006MHz
Flatness ±0.75dB@40~862MHz&1006MHz
Rf output reflection ≥16dB@40~550MHz ≥ 14dB@550~860&1006MHz
Output level control 0~18dB
Output level >80dBuV(AGC: @-9~+0dBm)
Output port 1
Output impedance 75 Ω
AGC range -15dBm~-6dBm&-12dBm~-3dBm&-9dBm~0dBm
CNR ≥51dB
CTB ≥65dB
CSO ≥62dB
Supply voltage DC5V
Adaptor voltage AC220V
Internal voltage DC5V
Working temperature -25℃~+45℃
Consumption <2W
Product dimension 112*106*28mm
Carton weight 1.26KG (10pcs)



YG-OR19:RFTV wavelength 1260-1620nm

YG-OR19-W:built in 1310/1490nm filter,suitable for single fiber three wavelength system,RFTV wavelength 1550nm.
