Tungsten Steel 16 Surface Fiber Optic Cleaver Blade

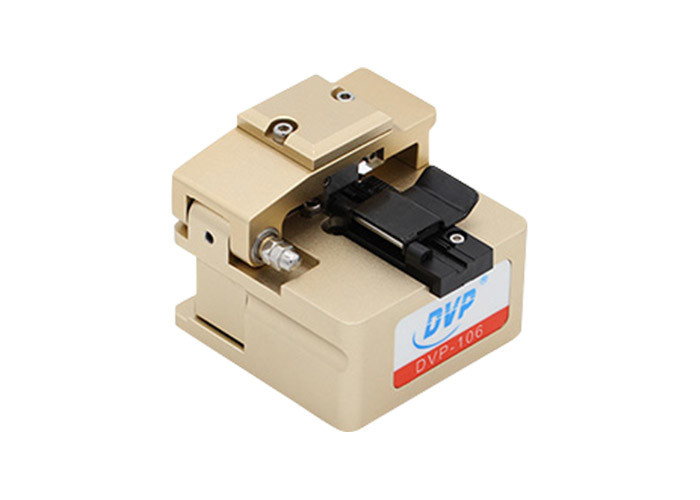

Fiber Optical Tools Metal Material Fiber Cleaver Cutter 16 Surface Blade Cable Cutting Knife

Description:

1.Can meet the heat-fusible fiber a multi-purpose cutters.

2.products using high-strength blade surface 16 points, longer life, comes with triple fixtures can be incision line, pigtails and bare fiber.

3.Automatic knife back,automatic back knife slides.

4.just put away the cover and push in the fiber cover to complete all the cutting work.

5.Applicable Fiber:250μm fiber cable, 900μm fiber cable, 12-fibre ribbon, and fiber jumper cable.

Quality material &process:

Made of 93 ultra-fine grain tungsten steel imported from Germany, made by radial sharpening process, high hardness, good wear resistance and good toughness

In the case of the same material and the same hardness, the blade life of the radial sharpening process is twice that of the ring sharpening process and the accuracy is higher.

Feature:

1.the cutting Angle stability

2.the cutting life extension

3.the blade replacement is convenient cutting normal at low temperature

Specification:

Fiber cutting process:

                   Front view                                                       Side view

Details:

Lutting knife blade method of replacement:

(1) the cutting knite overall tilt 45 degrees, loosen the tool slide surface Blade screw (some cutting knife need to remoye fixed the scraw of the middle).

(2)tilting blade,take out the blade,then place the new blade carefully Into the position.when loading the new blade,pay attention to not touch the knife placing new blade , make the position of the cutting blade into the number " I " , so that in arder to use each of the blade Good cutting point ), fixed and lock screw.
