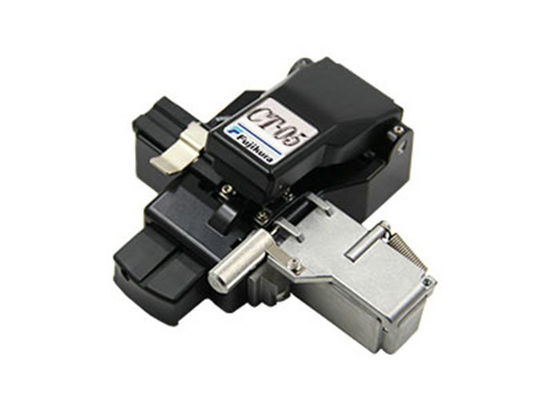

Fujikura CT-05 CT-06 16 Points Fiber Optic Cleaver Blade
Product Details
| Product Name | Fiber Optic Cleaver Blade | Rotating Knife Faces | 16 Surface |
|---|---|---|---|
| Material | Tungsten Steel | The Service Life | About 48,000 Cores |
| High Light | 16 Points Fiber Optic Cleaver Blade,Fujikura Fiber Optic Cleaver Blade,Fujikura optical fiber cleaver blade |
||
Product Description
Fiber Optical Cutter Fujikura CT-05 CT-06 16 Points Cleaver Blade
Description:
General cutting blade, high-quality tungsten steel, fine workmanship, durable and good quality
Widely applicable to well-known brand fiber cleavers 12 sides-14 sides-16 sides-24 sides Various specifications are available
Quality material &process:
Made of 93 ultra-fine grain tungsten steel imported from Germany, made by radial sharpening process, high hardness, good wear resistance and good toughness
In the case of the same material and the same hardness, the blade life of the radial sharpening process is twice that of the ring sharpening process and the accuracy is higher.
Feature:
1.Can meet the heat-fusible fiber a multi-purpose cutters.
2.products using high-strength blade surface 16 points, longer life.
3.Comes with triple fixtures can be incision line, pigtails and bare fiber.
4.Automatic knife back(Golden),automatic back knife slides.Manual knife return(gray),cutting more accurate
5.just put away the cover and push in the fiber cover to complete all the cutting work.
Specification:
| Name | optical fiber cutter blade |
| Rotary blade surface | 16 |
| Blade life | 48000 times |
| Cutting angle | 0.5 degrees (single core fiber) |
| Suitable for cutting knife type | CT-30 , CT-30A, CT-30B, CT-32, CT-38, CT-20,, CT-20-11, CT-20-12, CT-22 HTC20 fiber cutting knife |
Fiber cutting process:
Front view Side view
Lutting knife blade method of replacement:
(1) the cutting knite overall tilt 45 degrees, loosen the tool slide surface Blade screw (some cutting knife need to remoye fixed the scraw of the middle).
(2)tilting blade,take out the blade,then place the new blade carefully Into the position.when loading the new blade,pay attention to not touch the knife placing new blade , make the position of the cutting blade into the number " I " , so that in arder to use each of the blade Good cutting point ), fixed and lock screw.
Blade selection guide :
Fujikura compatible cleaver blades
Fujikura Cleaver Blade/Cutting Wheel CT-20
Fujikura Cleaver Blade/Cutting Wheel compatible with CT-03/04/07/100
Fujikura Cleaver Blade/Cutting Wheel CT-30
Each cleaver blade is manufactured to meet the specifications required for the Fiber Optic industry. our replacement cleaver blades are 100% individually inspected to ensure they adhere to our stringent tolerances. New cleaver blades can increase productivity through limiting re-work.
Other Cleaver Blades Available: INNO OEM Cleaver Blades | Sumitomo Cleaver Blades
