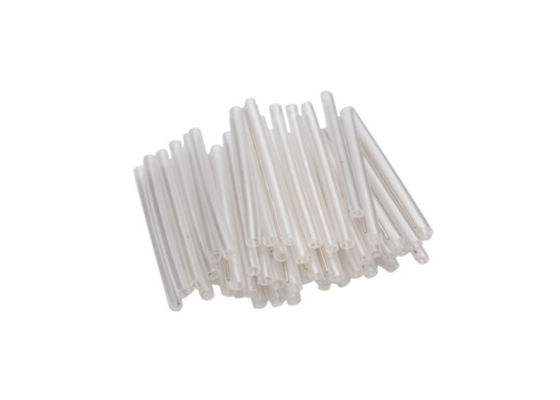

FTTB 60mm 2.0*3.0mm SM Fiber Optic Splice Sleeve
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | Yogel or OEM |
| Certification | ISO9000 |
| Model Number | Sleeve 300 |
| Minimum Order Quantity | 100 |
| Price | Negotiate |
| Packaging Details | 100 piece/inner bag, 1000pcs/pack |
| Delivery Time | 3-5 days after despoit |
| Payment Terms | Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 10000 pcs/ month |
Product Details
| Product Name | SM 2.0*3.0mm High Temperature Splice Protection Sleeves Splice Sleeves 60mm | Length | 45/60mm |
|---|---|---|---|
| Color | White | Application | FTTH FTTB FTTX Network, Single Fiber Single Mode |
| High Light | 2.0*3.0mm fiber optic splice sleeve,FTTB fiber optic splice sleeve,2.0*3.0mm fiber optic protection sleeve |
||
Product Description
SM 2.0*3.0mm high temperature splice protection sleeves splice sleeves 60mm
Product introduce:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber.
Performance parameters
| Items | Test method | Typical data |
| Operating Temperature range | 1EC216 | -55℃-100℃ |
| Tensile strength | ASTM D 2671 | 18 MPa |
| Fracture tensile Rate | ASTM D 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm³ |
| Withstand pressure strength | IEC243 | 25KV/mm |
| Volumetric resistivity | ICE243 | 1015Ω.com |
| Dielectric constant | ICE243 | 2.5 |
| Longitudinal shrinkage Rate | ASTM D 2671 | ±5% |
| Bias Rate | ASTM D 2671 | 10% |
Big size splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-61 | 3.0 | 61 | 1.3 | 61 | 1.5 | 55 | 100pcs/bag |
| YG-45 | 3.0 | 45 | 1.3 | 45 | 1.5 | 40 | 100pcs/bag |
| YG-23 | 3.0 | 23 | 1.3 | 23 | 1.5 | 18 | 100pcs/bag |
Standard splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-61M | 2.5 | 61 | 1.3 | 61 | 1.2 | 55 | 100pcs/bag |
| YG-45M | 2.5 | 45 | 1.3 | 45 | 1.2 | 40 | 100pcs/bag |
| YG-40M | 2.5 | 40 | 1.3 | 40 | 1.2 | 36 | 100pcs/bag |
|
YG-30M
|
2.5 | 30 | 1.3 | 30 | 1.2 | 26 | 100pcs/bag |
| YG-25M | 2.5 | 25 | 1.3 | 25 | 1.2 | 21 | 100pcs/bag |
Small splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-60A | 2.4 | 60 | 1.3 | 60 | 1.0 | 58 | 100pcs/bag |
| YG-60T | 2.0 | 60 | 0.5 | 60 | 1.0 | 56 | 100pcs/bag |
| YG-40T | 2.0 | 40 | 0.5 | 40 | 1.0 | 36 | 100pcs/bag |
|
YG-40TS
|
1.7 | 40 | 1.0 | 40 | 0.7 | 39 | 100pcs/bag |
| YG-45TS | 1.7 | 45 | 1.0 | 45 | 0.7 | 44 | 100pcs/bag |
| YG-50TS | 1.7 | 50 | 1.0 | 50 | 0.7 | 49 | 100pcs/bag |
Standard splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-40S | 1.3 | 40 | 0.5 | 40 | 0.5 | 39 | 100pcs/bag |
| YG-25ST | 1.3 | 25 | 0.5 | 25 | 0.5 | 24 | 100pcs/bag |
| YG-18S | 1.3 | 18 | 0.5 | 18 | 0.5 | 17 | 100pcs/bag |
|
YG-15S
|
1.3 | 15 | 0.5 | 15 | 0.5 | 14 | 100pcs/bag |
| JTSP-10S | 1.3 | 10 | 0.5 | 10 | 0.5 | 9 | 100pcs/bag |
