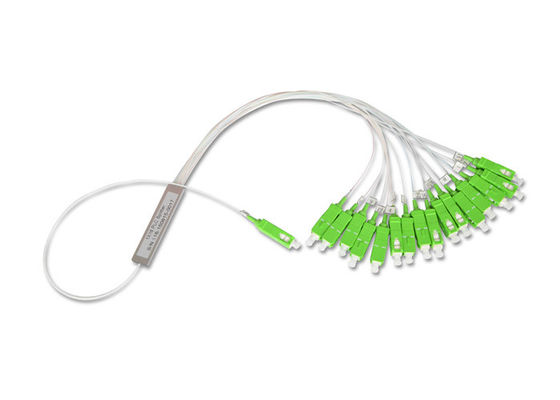

Steel Tube 1*16 0.9mm 1.5M PON Fiber Optic Splitter
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001 |
| Model Number | 1x16 PLC Mini SC APC |
| Minimum Order Quantity | 1Piece |
| Price | Negotiate |
| Packaging Details | 1 piece/plastic bag, 100pcs/inner box |
| Delivery Time | 3-7 work days after despoit |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs /Month |
Product Details
| Product Name | 1x16 PLC Mini Splitter SC APC | Fiber Diameter | 0.9mm/2.0mm/3.0mm |
|---|---|---|---|
| Output | SC/APC | Input | SC/APC |
| Fiber Length | 1M Or 1.5M Or Customized | Fiber Type | SM G.657A2 |
| Application | FTTH FTTB FTTX Network | Color | White |
| High Light | 0.9mm 1.5M optical fiber splitter,1.5M 1x16 plc splitter,1.5M steel tube plc splitter |
||
Product Description
FTTH Mini Type Steel Tube 1*16 0.9mm Optic Fiber SC APC Connector PLC Splitter
Description
PLC Splitter means planar light-wave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive. And our products meet Telcordia 1209,1221 standard ,ROHS.
We have unique competitive advantages in our PLC product platform by leveraging our strong expertise in fiber array block fabrication, our partnership with foundry service providers, and our reliable packaging technologies. Our splitters are tested based on the strictest standards of the industry, and we guarantee quality, turnaround and competitive pricing.
The PLC splitter we offer are:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64
Features
1)Good uniformity and low insertion loss
2)Low polarization dependent loss
3)Excellent environmental stability
4)Excellent mechanical
5)Compact design,suitable for installation in optical equipment
6)Wide operating temperature:-40~85 ℃
7)High reliability and stability
Applications
- FTTx (FTTB, FTTH, FTTC)
- Passive optical networks (PON)
- Local area networks (LAN)
- CATV systems
- Test equipments
Specification:
| Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||
| Fiber Type | / | G.657A, or customized | |||||||
| Operating Wavelength | nm | 1260~1650 | |||||||
| Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
| S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | |
| PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
| Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | |
| Return Loss | Min | dB | 55(P Grade)/50(S Grade) | ||||||
| Directivity | Min | dB | 55 | ||||||
| Operating Temperature | ℃ | -40 ~ +85 | |||||||
| Storage Temperature | ℃ | -40 ~ +85 | |||||||
| Dimension(L×W×H) | mm | 40×4×4 | 50×7×4 | 60×12×4 | |||||
|
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
|||||||||
Order Information :
PLC Splitter Type-----Input/Output -----Input Tube Type------Input Tube Length-----Output Tube Type-----Output Tube Length
Products Type :
Our Service:
FAQ:
1.Do you provide free samples?
yes, we can supply some free samples , the buyer should pay the shipping cost.
2. Can we become your distributor or agency in our area?
yes, it is possible if we do not have an agency or distributor in your area. The best way to start the business and approve your good intentions through several regular orders over a period. we will support very good products to our distributor including samples, price and other supports. please contact with our sales manager for more details.
3.Can you supply OEM products under our brand?
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
