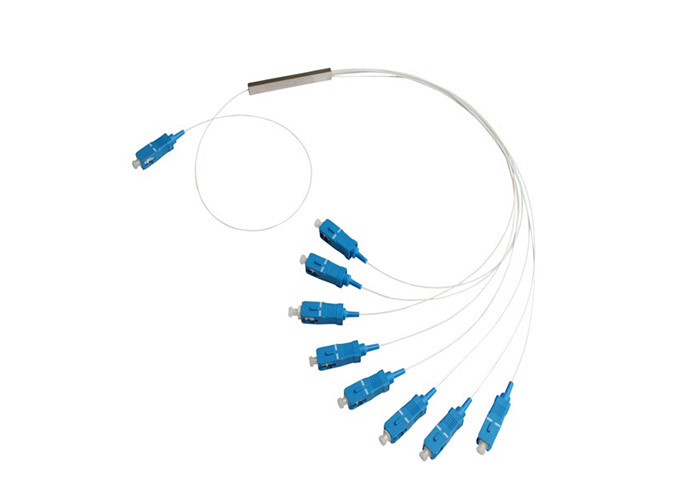

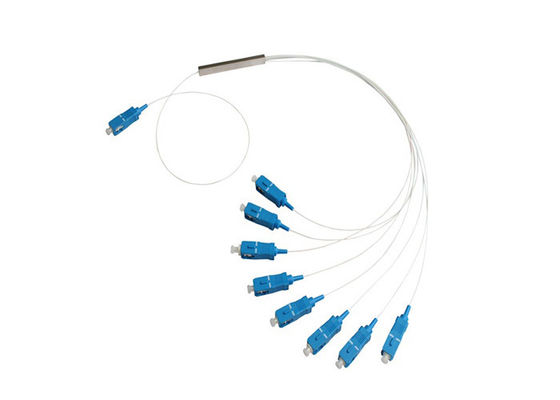

ROHS SC UPC 0.9mm 1x8 Fiber Splitter
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001 |
| Model Number | 1x8 PLC Mini SC UPC |
| Minimum Order Quantity | 1Piece |
| Price | Negotiate |
| Packaging Details | 1 piece/plastic bag, 100pcs/inner box |
| Delivery Time | 3-7 work days after despoit |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs /Month |
Product Details
| Product Name | 1x8 PLC Mini Splitter | Connector | SC UPC |
|---|---|---|---|
| Operating Temperature | -40℃ To 85℃ | Capacity | 1x8 Steel Tube Type Plc Splitter |
| Splitter | 1x8 Splitter | Cable Diameter | 0.9mm |
| High Light | SC UPC 1x8 fiber splitter,ROHS 1x8 fiber splitter,0.9mm 1x8 fiber splitter |
||
Product Description
FTTH Fiber Optical splitter SC UPC 0.9mm colorful 1x8 PLC Mini Splitter
Description
PLC Splitter means planar lightwave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelength (1260-1620nm) is not sensitive. And our products meet Telcordia 1209,1221 standard ,ROHS.
We have unique competitive advantages in our PLC product platform by leveraging our strong expertise in fiber array block fabrication, our partnership with foundry service providers, and our reliable packaging technologies. Our splitters are tested based on the strictest standards of the industry, and we guarantee quality, turnaround and competitive pricing.
The PLC splitter we offer are:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64
Features
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
Applications
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)
Specification:
| Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||
| Fiber Type | / | G.657A, or customized | |||||||
| Operating Wavelength | nm | 1260~1650 | |||||||
| Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
| S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | |
| PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
| Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | |
| Return Loss | Min | dB | 55(P Grade)/50(S Grade) | ||||||
| Directivity | Min | dB | 55 | ||||||
| Operating Temperature | ℃ | -40 ~ +85 | |||||||
| Storage Temperature | ℃ | -40 ~ +85 | |||||||
| Dimension(L×W×H) | mm | 40×4×4 | 50×7×4 | 60×12×4 | |||||
|
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
|||||||||
Order Information :
PLC Splitter Type-----Input/Output -----Input Tube Type------Input Tube Length-----Output Tube Type-----Output Tube Length
Our advantages:
1.The most moderate price
2.We are eager to establish long-term cooperation relationship with every customer,so we're responsible for our quality.we provide 3 years warrranty
3.We provide one-stop FTTH Solution Products. Besides, we can help you design unique new products and put into production.We care about innovation and would like to change for you and grow up with you.
4.With our own R&D, more completed production lines, advanced production & testing equipments,experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.
5.For your any queries or inquiries,we will try to reply you within 3 hours
