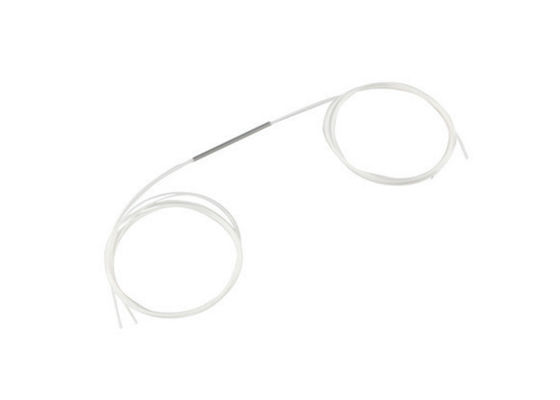

1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters

  • 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters
  • 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters
  • 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters
  • 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters
  • 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters
Place of Origin Shanghai
Brand Name Yogel
Certification ISO9001
Model Number 1x2FBTWC
Minimum Order Quantity 1
Price Negotiate
Packaging Details Blister boxes, Cartoon
Delivery Time 3-7days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000pcs/month
Product Details
Product Name FBT Splitters Wavelength 1310/1550nm
Operating Bandwidth ± 40 Typical Excess Loss 0.07 DB
Splitting Ratio 50/50 (Optional) Insertion Loss ≤3.4 DB
PDL ≤0.10dB Directivity ≥55 DB
Connector SC/APC Jacket PVC/LSZH
Fiber Length 1m Application FTTH Fiber Network, Telecommunication,
Temperature -40℃ To +70℃
High Light

1550nm FBT optical splitter

,

50/50 FBT optical splitter

,

50/50 optical fiber splitter
Leave a Message
Product Description

Optical Splitters

1x2 or 2x2 Fused Biconical Taper (FBT)

Single-mode Standard Coupler



Description



FBT Optical fiber coupler has bundles of optical fibers fused together. The input light is equally or not equally split into two parts at the fused region and output via ports.

Optical fiber couplers are most suitable for 1x2 or 2x2 splits since those with few splits are relatively simple to fabricate.

The single mode standard coupler (SSC) features low excess loss, high stability, and reliability. It is widely used for optical fiber communication systems and CATV systems.





Features



* Low insertion loss & excess loss

* Low PDL

* High stability and reliability

* High optical return loss

* Better uniformity

* Small package size



1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters 0



Applications



* CATV

* FTTH, LAN, PON Network

* Optical communication systems

* Testing instruments

* Fiber optic sensor

* Network Monitor



Specifications



Item Parameter
Operating wavelength (nm) 1310 or 1550, others on request
Operating bandwidth (nm) ± 40
Typical excess loss (dB) 0.07
Insertion loss (dB) 50/50 ≤3.4
45/55 ≤4.1/3.1
40/60 ≤4.4/2.6
35/65 ≤5.2/2.3
33/67 ≤5.4/2.2
30/70 ≤5.7/1.9
25/75 ≤6.6/1.7
20/80 ≤7.6/1.25
15/85 ≤9.2/1.0
10/90 9.2~11.0/≤0.65
5/95 12.0~14.2 /≤0.4
3/97 14.05~16.55/≤0.3
2/98 15.7~18.5/≤0.25
1/99 18.55~21.5/≤0.2
PDL (dB) ≤0.10
Directivity (dB) ≥55
Operating temperature (℃) -40 ~ +85

Notes:

1. The above specification is without connectors.

2. Other specifications can be made on customer request.





Package



1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitters 1

Note:

Other package dimensions can be made on customer request.



Order Information



Port Number, Wavelength, Coupling Ratio,

Connector, Cable Diameter, Fiber type, Cable length,

Package type



Example:

1x2, 1310/1550nm, 50/50,

In/Out SC/APC, 0.9mm, G.652D, 1 Meters,

Tube type Ф3.0mm×60mm
